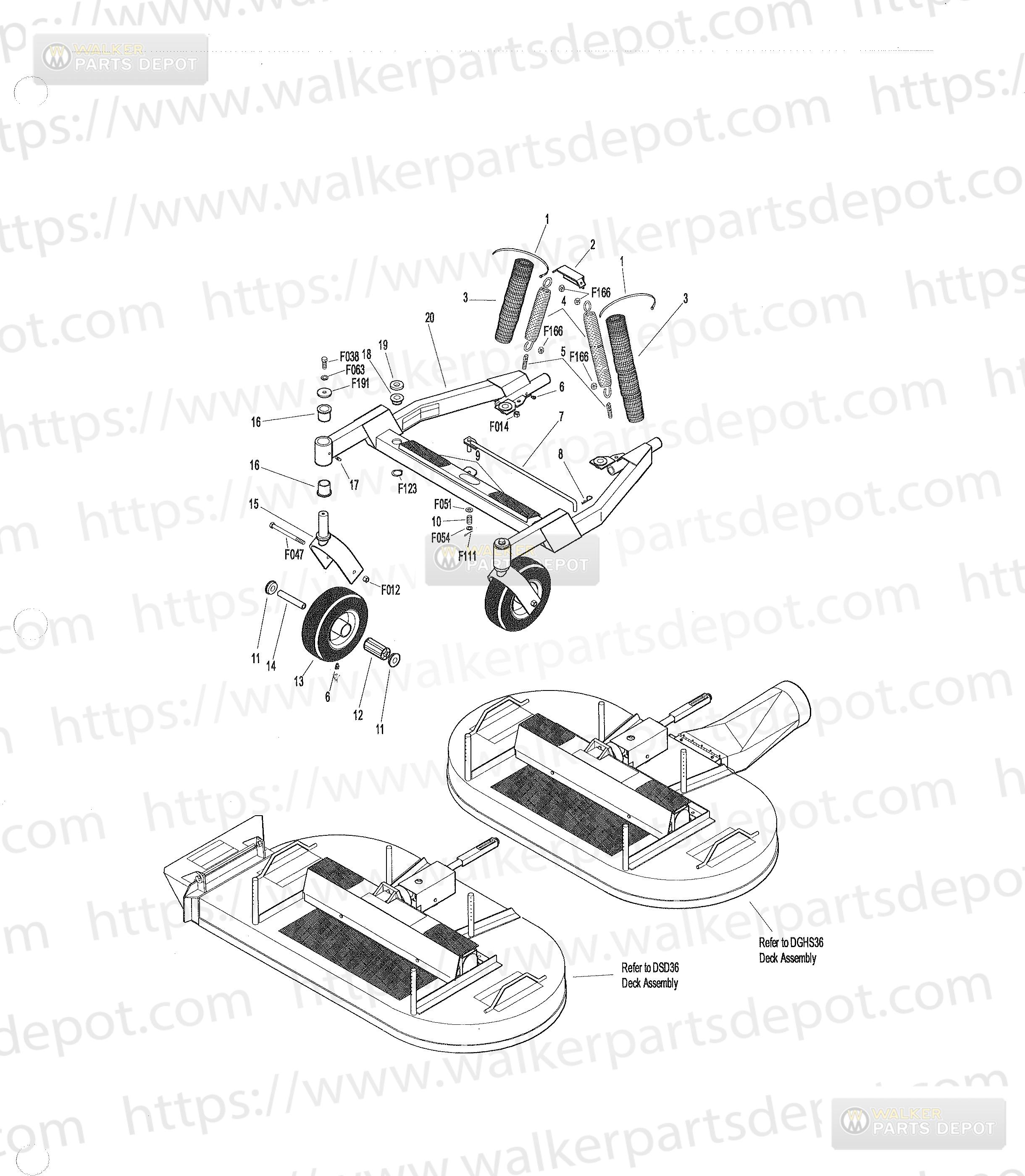

PARTS > DECKS MANUALS > 1997-07-31, 5000-5 > 36 Carrier Frame Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5975-3	Cable Tie 50x7	$0.36	Add to Cart
2	5744-1	Spring Clip Bracket	$15.81	Add to Cart
3	5743-1	Spring Cover	$13.40	Add to Cart
4	5743-2	Extension Spring (1-1/2 x 7-3/4)
5	5743-3	Eye Bolt 3816x2	$8.78	Add to Cart
6	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
7	5749-1	Deck Lift Rod 36	$13.93	Add to Cart
8	7666	Hitch Pin 3	$1.18	Add to Cart
9	5748	Safety Tread (2 x 6)
10	5682	Compress Spg 916x34	$1.20	Add to Cart
11	5714-7	NR Bearing Cap	$7.16	Add to Cart
12	5714-5	NRBearing 5715357154	$26.64	Add to Cart
13	5715-4	SU5715 13 5714 6 NR Cst Whel Pneu 8x3 00 4	$61.28	Add to Cart
	5715-10	Tire Pneu 8x3 00 4	$33.65	Add to Cart
	5715-9	Tire Tube Pneumatic 2802504	$25.70	Add to Cart
	5715-3	SU5715 14 5714 6 NR Caster Wheel Tire No Flat 8x3 00 4	$70.50	Add to Cart
14	5714-3	Axle Spacer Tube	$12.73	Add to Cart
15	5770-2	Caster Wheel Fork 8602 571534	$47.74	Add to Cart
16	5683	Pivot Bearing	$10.16	Add to Cart
17	5830	Grease Fitting 1428	$2.47	Add to Cart
18	5740-2	Deck Pin Bushing 58	$3.36	Add to Cart
19	5727-1	Washer Shim 58ID	$4.25	Add to Cart
20	5708-3	36? Carrier Frame (Includes Item #9)
	F012	3816 Keps Nut	$0.79	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F047	3816x412 Hex Bolt	$3.12	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F054	AN960616 Washer	$0.29	Add to Cart
	F063	38 Int Star Lock Washer	$0.18	Add to Cart
	F111	18x34 Cotter Pin	$0.18	Add to Cart
	F123	1 External Snap Ring	$1.27	Add to Cart
	F166	Retainer Ring	$0.18	Add to Cart
	F191	38x112x316 Washer	$4.26	Add to Cart
