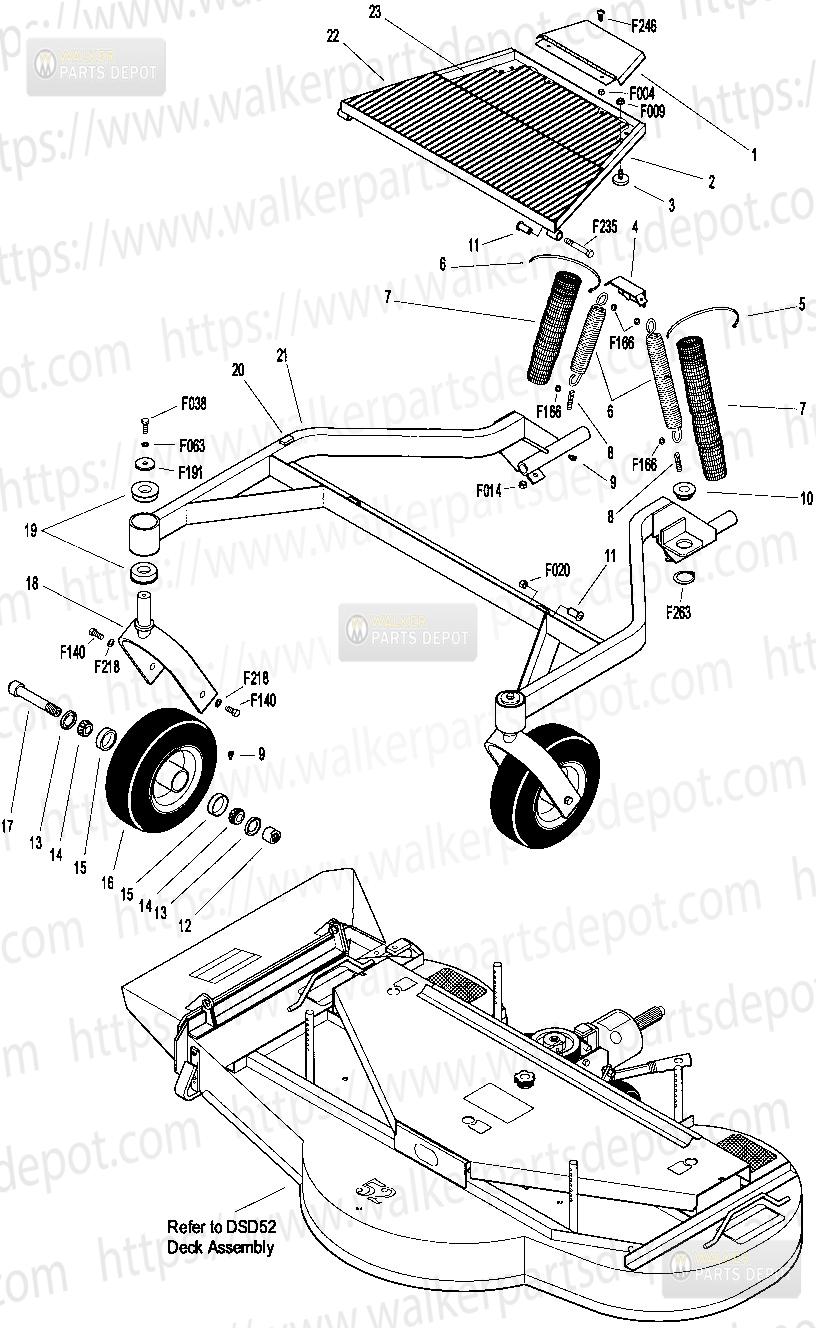

PARTS > DECKS MANUALS > 1998-07-24, 5000-6 > 52 Carrier Frame Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8789	Pulley Guard	$24.09	Add to Cart
2	8786	Footrest	$128.73	Add to Cart
3	7844	Rubber Bumper 125x250	$4.06	Add to Cart
4	5744-1	Spring Clip Bracket	$15.81	Add to Cart
5	5975-3	Cable Tie 50x7	$0.36	Add to Cart
6	5743-2	Extension Spring (1-7/16x7-13/16)
7	5743-1	Spring Cover	$13.40	Add to Cart
8	5743-3	Eye Bolt 3816x2	$8.78	Add to Cart
9	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
10	8740	Deck Pin Bushing 34ID	$13.29	Add to Cart
11	5103-2	Pivot Bushing 516ID	$4.56	Add to Cart
12	8766	Axle Nut 3416	$16.45	Add to Cart
13	8768-2	Seal Reverse Lip	$10.08	Add to Cart
14	8037	Bearing Cone 34ID	$12.09	Add to Cart
15	8037-2	Bearing Race	$13.55	Add to Cart
16	8768	Caster Wheel- Pneumatic (11x4-5)	$73.45	Add to Cart
	8768-3	Tire Pneumatic 11x45	$102.02	Add to Cart
	8768-5	Caster Wheel 5x3 Prior to SN 160519	$35.84	Add to Cart
17	8767	Axle Caster Whl 518	$37.20	Add to Cart
18	8765	Caster Whl Fork 514	$81.65	Add to Cart
19	8769	NR Flanged Brng10IDx20OD	$44.42	Add to Cart
20	8788	NR Rubber Bumper SelfAdhesive Mount	$2.62	Add to Cart
21	8756	52? Carrier Frame (Includes Item # 20)
22	8786-4	Rubber Mat, Front
23	8786-3	Rubber Mat, Rear
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F063	38 Int Star Lock Washer	$0.18	Add to Cart
	F140	71614x1 Hex Bolt	$1.87	Add to Cart
	F166	Retainer Ring	$0.18	Add to Cart
	F191	38x112x316 Washer	$4.26	Add to Cart
	F218	716 Split Lock Washer	$0.34	Add to Cart
	F235	51618x212 Hex Bolt	$1.75	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F263	114 External Snap Ring	$0.94	Add to Cart
