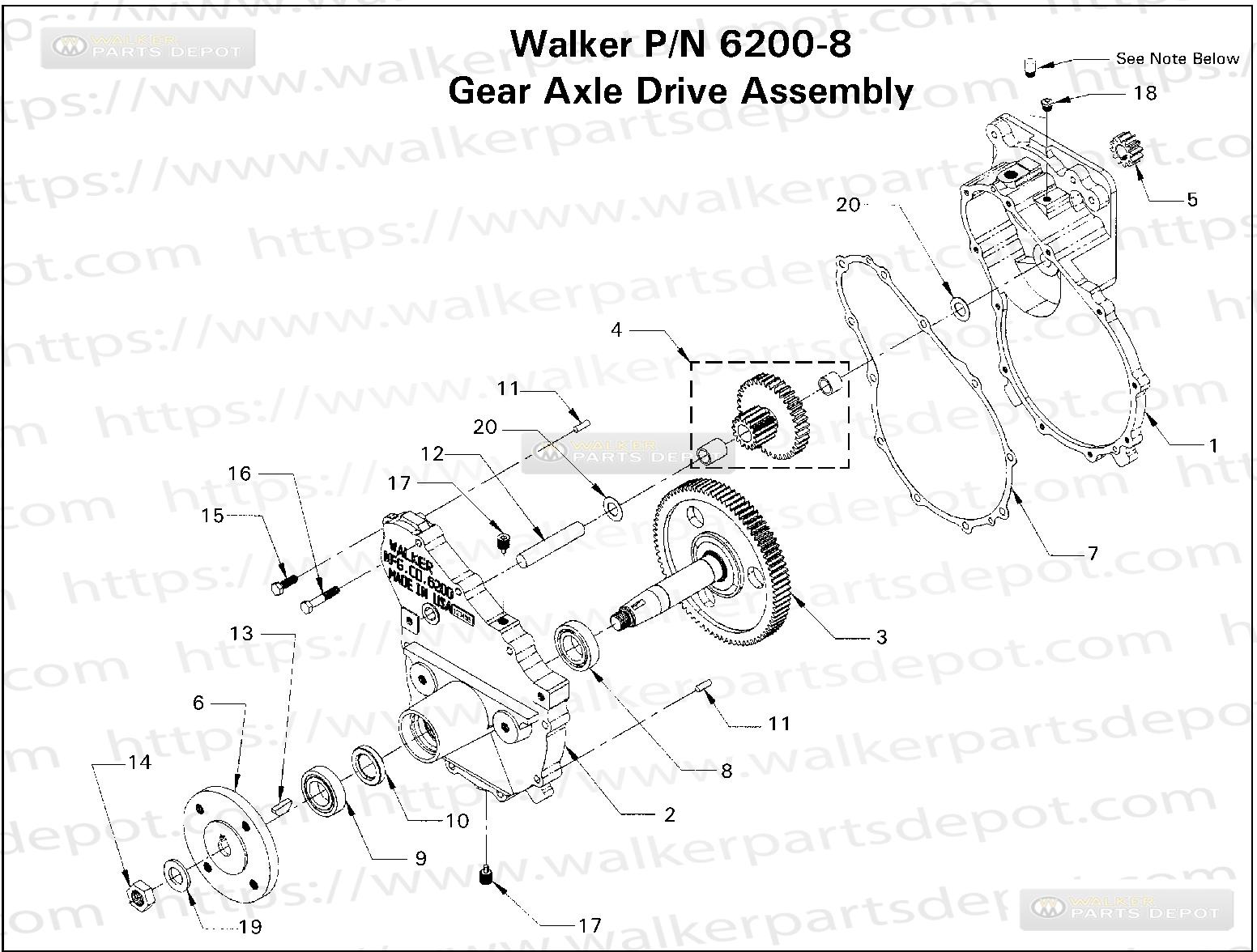

PARTS > ADDITIONAL MANUALS > 2008-10-01, Gear Axles > 6200-8:

Diagram #	Part #	Description	Price	Add to Cart
1	6207-1	Inner Housing
2	6207-2	(NR) Outer Housing (W6200BHM)	$122.08	Add to Cart
3	6207-3	NR Gear Axle 80T	$256.62	Add to Cart
4	NS	Cluster Gear Assembly (Includes Both Needle Bearings)*
5	6233-1	Pinion Gear 620039	$51.06	Add to Cart
6	6207-6	Wheel Hub W6200WHM	$58.09	Add to Cart
7	6202-3	NR Gear Case Gskt 11Bolt	$8.76	Add to Cart
8	6207-8	Bearing Open 6006C3	$39.84	Add to Cart
9	6207-9	Bearing Sealed L627Q19	$39.84	Add to Cart
10	6207-10	Oil Seal 11615	$14.59	Add to Cart
11	F314	14x34 Dowel Pin	$1.44	Add to Cart
12	NS	Gear Shaft (5/8 x 3-1/2)
13	F231	14x34 Woodruff Key 806	$2.18	Add to Cart
14	F315	3416 Jam Nut	$2.26	Add to Cart
15	F093	51618x1 Hex Bolt	$0.94	Add to Cart
16	F316	51618x134 Hex Bolt	$1.08	Add to Cart
17	6207-12	Pipe Plug 14 NPTF	$10.16	Add to Cart
18	6206	Pressure Relief Valve
	6206-1	Air Vent Valve	$11.46	Add to Cart
19	6207-13	NR Washer 341050 SPRING STEEL HEAT TREATED	$3.84	Add to Cart
20	NS	Thrust Washer
