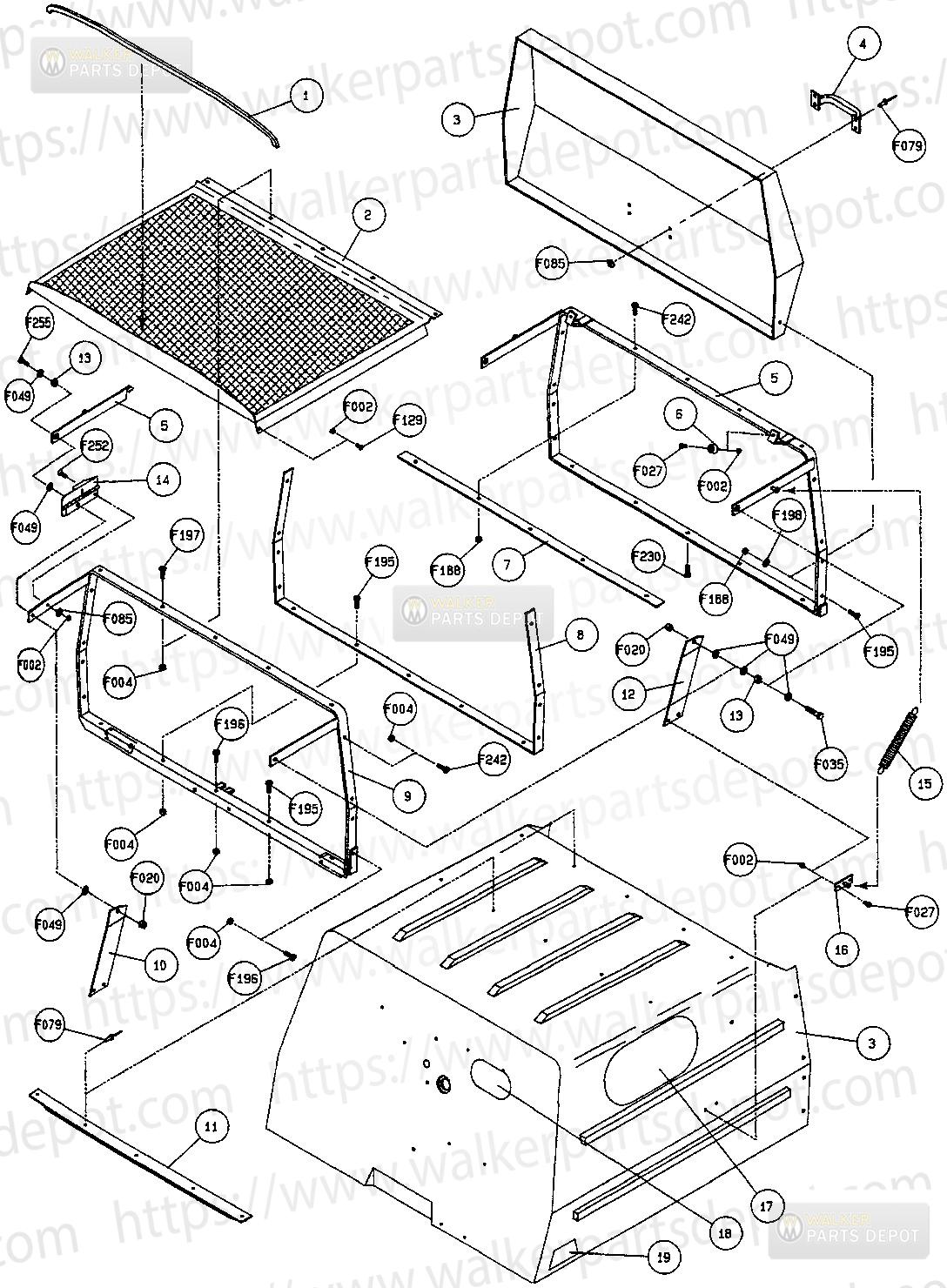

PARTS > MD MANUALS > 1993-03-01, 7895-1, Serial 11756-29675 > 7.0 Catcher Box:

Diagram #	Part #	Description	Price	Add to Cart
1	7856	Edge Molding	$6.05	Add to Cart
2	7512-1	Upper Baffle Screen
3	7510-1	7.0 Bushel Catcher, Incl. Door
4	5583	Handle	$11.81	Add to Cart
5	7514	Door Frame Assembly (7.0)
6	5588	Rubber Bumper 75x50	$5.94	Add to Cart
7	7514-1	NR Backup PlateCatcher Door	$16.26	Add to Cart
8	7513-2	NR 70 Mounting Frm Doubler	$15.09	Add to Cart
9	7513	70 Mounting Frame	$76.46	Add to Cart
10	5522-2	NR Hinge Backup PlateRH	$8.35	Add to Cart
11	7584	Reinforcing Strap 100	$24.20	Add to Cart
12	5522-1	NR Hinge Backup PlateLH	$8.35	Add to Cart
13	5524	Hinge Bearing
14	7508	NR Safety Latch Kit7095	$56.78	Add to Cart
15	5587	Spring, Door Latch
16	5523	Spring Hook
17	5801	NR Decal GHSLexan	$15.42	Add to Cart
18	5813-1	NR Decal PowerfilLexan	$5.11	Add to Cart
19	7817	NR Decal Catcher Lift	$2.95	Add to Cart
F002	F002	1024 Keps Nut	$0.18	Add to Cart
F004	F004	1420 Keps Nut	$0.34	Add to Cart
F020	F020	51618 ESNA Nut	$0.34	Add to Cart
F027	F027	1024x58 PPHMS	$0.18	Add to Cart
F035	F035	51618x114 Hex Bolt	$0.94	Add to Cart
F049	F049	516 SAE Washer	$0.18	Add to Cart
F079	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
F085	F085	316 Rivet Backup Washer	$0.44	Add to Cart
F129	F129	1024x12 PTHMS	$0.34	Add to Cart
F188	F188	1420 SelfLocking Nut	$0.30	Add to Cart
F195	F195	1420x34 PPHMSSS	$1.18	Add to Cart
F196	F196	1420x1 PPHMSSS	$1.66	Add to Cart
F197	F197	1420x12 PPHMSSS	$0.58	Add to Cart
F198	F198	250x625x040 WasherSS	$0.79	Add to Cart
F230	F230	1420x114 PPHMSSS	$1.87	Add to Cart
F242	F242	1420x78 PPHMS SS	$1.30	Add to Cart
F252	F252	1024x34 PFHMS	$0.18	Add to Cart
F255	F255	51618x112 Hex Bolt	$1.06	Add to Cart
