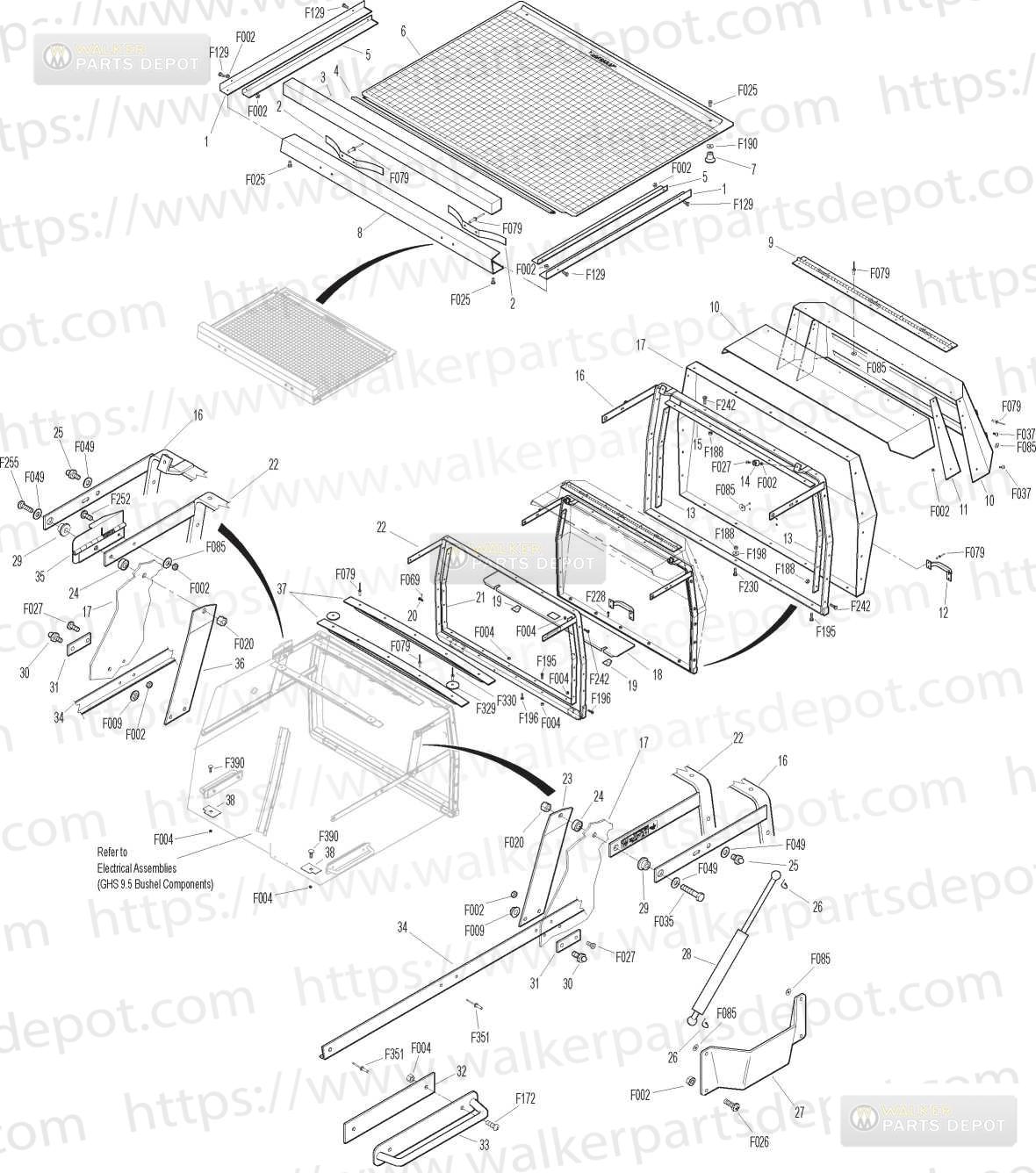

PARTS > MC MANUALS > 2006-09-01, 6000-12, Serial 85835-100981 > 9.5 Bushel Catcher Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7509-3	Channel Bottom
2	7505	Mustache Spring	$11.11	Add to Cart
3	7507	Screen Seal 2712	$8.78	Add to Cart
4	7856-1	NR Edge Molding 26	$5.66	Add to Cart
5	7509-2	Channel Top	$5.11	Add to Cart
6	7512-2	Rmvbl Screen 3 16 Hole	$80.96	Add to Cart
7	7506	KnobThrded Insrt 1024	$7.82	Add to Cart
8	7509-4	NR CChannel 7095	$11.20	Add to Cart
	7504	Exhaust Deflector Kit	$179.13	Add to Cart
9	7504-3	Hinge 27	$34.28	Add to Cart
10	7504-1	NR Exhaust Deflector 2Pc	$78.35	Add to Cart
11	7504-8	Deflector Mount Doubler	$4.75	Add to Cart
12	5583	Handle	$11.81	Add to Cart
13	8516	NR 95 Side Strap Door	$12.00	Add to Cart
14	5588	Rubber Bumper 75x50	$5.94	Add to Cart
15	7514-1	NR Backup PlateCatcher Door	$16.26	Add to Cart
16	8514-11	NR 95 Door Frame00	$104.22	Add to Cart
17	8510-1	9.5 Bushel Catcher Box (Includes Door)
	8502-1	9.5 Catcher W/O Powerfil? (Includes Door & Deflector)
	8502-2	9.5 Catcher W/Powerfil? (Includes Door & Deflector)
18	6610-1	NR Catcher Dump Plate CS	$29.77	Add to Cart
	6611	NR Dump Plate Kit CS	$53.13	Add to Cart
19	7610-1	NR Dump Plate Slide	$6.43	Add to Cart
20	5281-5	Clevis Pin 14x080	$1.37	Add to Cart
21	8513-3	NR 95 Mount Frame Dblr00	$27.94	Add to Cart
22	8503-2	NR 95 Mounting Frame00	$166.64	Add to Cart
23	5522-1	NR Hinge Backup PlateLH	$8.35	Add to Cart
24	7503-9	Pivot Bushing 516x58	$3.05	Add to Cart
25	5155-12	516 Ball Stud	$3.00	Add to Cart
26	5147	Spring Clip	$1.02	Add to Cart
27	5155-2	Gas Spring Cover	$9.60	Add to Cart
28	5155	Gas Spg AssyCatcher Door	$47.06	Add to Cart
29	5524-1	NR Flanged Hinge Bearing	$8.80	Add to Cart
30	5155-13	10mm Ball Stud 51618 34 Thread	$3.19	Add to Cart
31	5523-6	Gas Spring Plate	$3.12	Add to Cart
32	7533	NR Backing Plate Handle	$4.63	Add to Cart
33	7532	Handle, Catcher Lift
	7534	NRCatcher Handle Kit	$39.29	Add to Cart
34	5155-15	Box Support Gas Spring	$7.61	Add to Cart
35	7508	NR Safety Latch Kit7095	$56.78	Add to Cart
36	5522-2	NR Hinge Backup PlateRH	$8.35	Add to Cart
37	7584	Reinforcing Strap 100	$24.20	Add to Cart
38	8515-10	NR 7095 Ctchr Reinforcing Plate	$6.40	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F035	51618x114 Hex Bolt	$0.94	Add to Cart
	F037	1024x58 PTH Screw	$0.18	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F172	1420x34 Carriage Bolt	$0.50	Add to Cart
	F188	1420 SelfLocking Nut	$0.30	Add to Cart
	F190	#10 Internal Star Lock Washer
	F195	1420x34 PPHMSSS	$1.18	Add to Cart
	F196	1420x1 PPHMSSS	$1.66	Add to Cart
	F198	250x625x040 WasherSS	$0.79	Add to Cart
	F228	6x58 PPHSMS SS	$0.34	Add to Cart
	F230	1420x114 PPHMSSS	$1.87	Add to Cart
	F242	1420x78 PPHMS SS	$1.30	Add to Cart
	F252	1024x34 PFHMS	$0.18	Add to Cart
	F255	51618x112 Hex Bolt	$1.06	Add to Cart
	F329	200IDx1939OD Washer Zinc118THK	$7.82	Add to Cart
	F330	316Dx2132L RivetSS STST68D	$2.06	Add to Cart
	F351	Aluminum Pop Rivet	$0.94	Add to Cart
	F390	1420x78 Carriage Bolt	$0.65	Add to Cart
