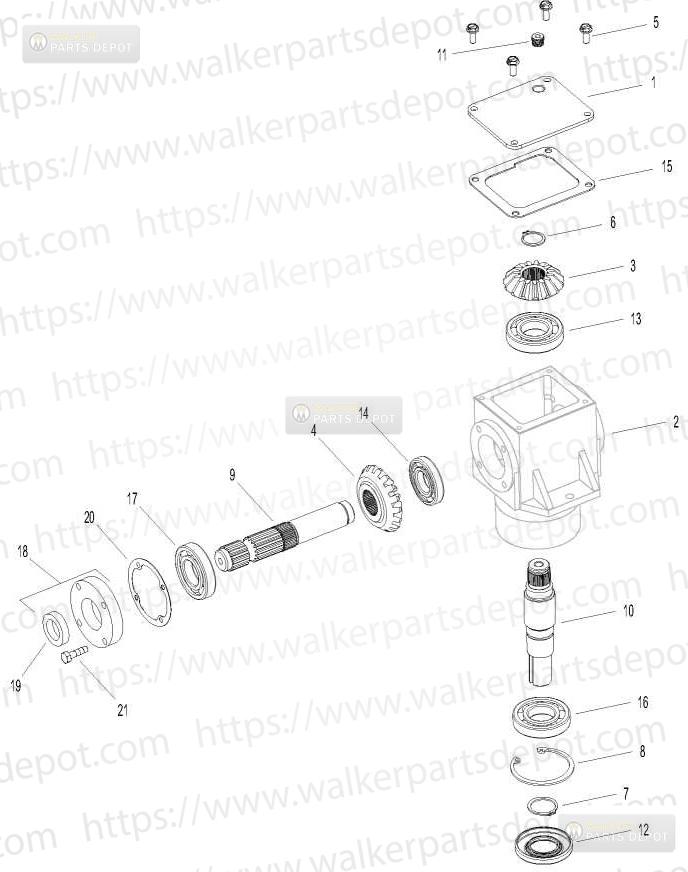

PARTS > ADDITIONAL MANUALS > 2007-10-01, PTO Gearboxes > 9050 PTO Gearbox:
| Diagram # | Part # | Description | Price | Add to Cart |
| 1 | P018 772067 | Cover, LH | |
| | 2 | N/S 770137 | Right Angle Drive Housing | |
| | 3 | P003 778101A | Miter Gear (17 teeth-steel) | |
| | 4 | N/S 778392 | Miter Gear (17 teeth-steel) | |
| | 5 | P008 792025 | Screw, RD/HD Self-Tap | |
| | 6 | P032 788018 | Snap Ring, Gear Retainer | |
| | 7 | P028 788019 | Snap Ring | |
| | 8 | P016 792119 | Snap Ring | |
| | 9 | N/S 776451 | Output Shaft | |
| | 10 | N/S 776452 | Input Shaft | |
| | 11 | P041 792039 | Plug, Cover | |
| | 12 | N/S 788029 | Seal, Oil | |
| | 13 | P024 780034 | Ball Bearing | |
| | 14 | N/S 780024 | Ball Bearing | |
| | 15 | P004 788028 | Gasket Cover | |
| | 16 | N/S 780207 | Ball Bearing (.8745 ID) | |
| | 17 | N/S 780201 | Ball Bearing (.8745 ID) | |
| | 18 | N/S 786208 | Retainer Cap & Seal (Includes Items # 19 & 21) | |
| | 19 | P021 788031 | Oil Seal 7/8 | |
| | 20 | P007 788028 | Gasket | |
| | 21 | P009 792043 | 1/4-20 x 7/8 | |
|
