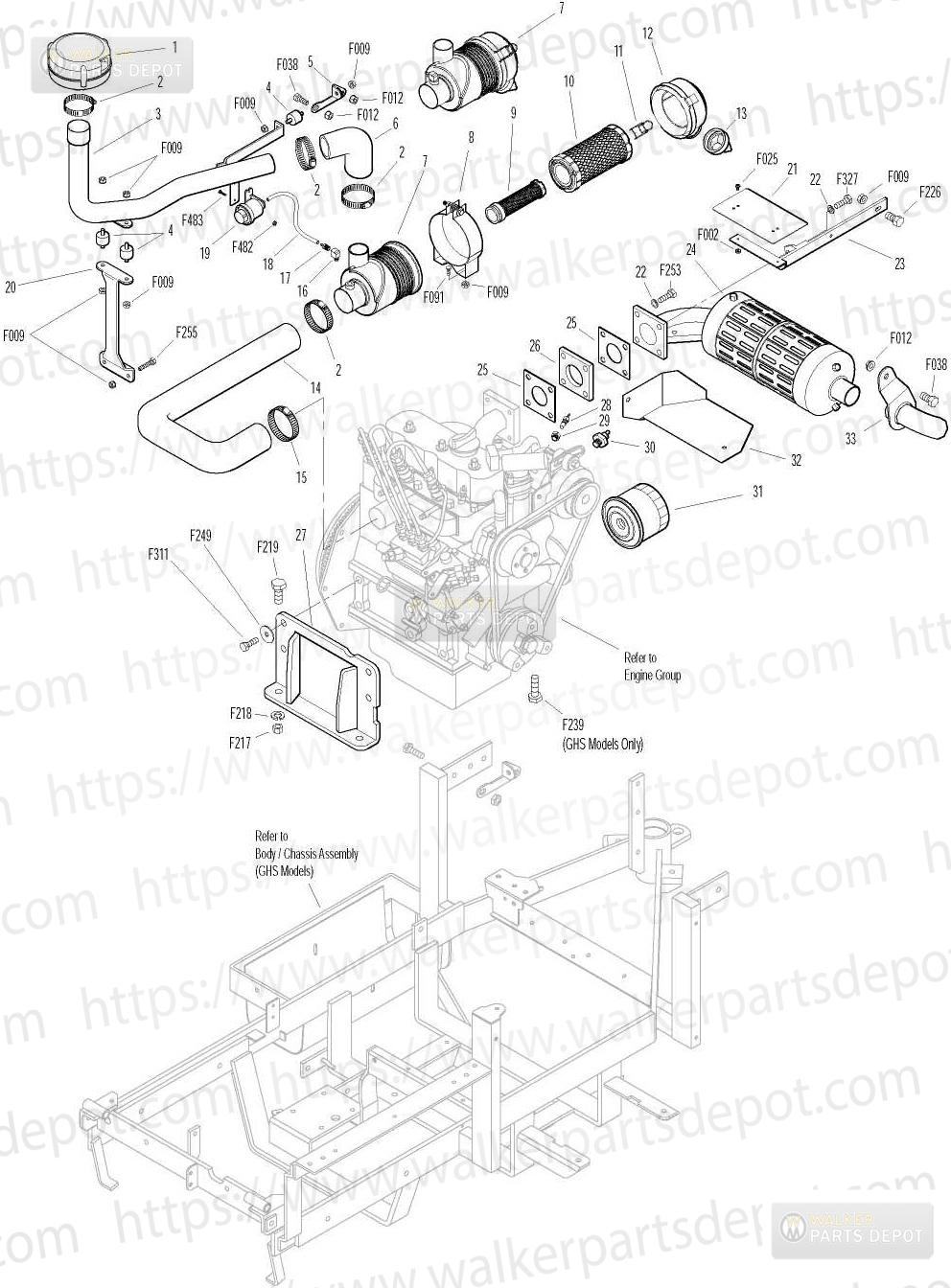

PARTS > MD MANUALS > 2013-10-04, 7000-12, Serial 124860-134381 > Air Intake and Exhaust Group:

Diagram #	Part #	Description	Price	Add to Cart
1	7026-2	Remote Precleaner	$59.33	Add to Cart
2	7840-5	Hose Clamp 156 250	$3.84	Add to Cart
3	7028-5	Precleaner Tube 134GHS	$67.07	Add to Cart
4	7440	Shock Mount 1x34	$5.20	Add to Cart
5	7028-20	Rear Precleaner Mount	$8.16	Add to Cart
6	7032	Elbow Precleaner	$23.28	Add to Cart
7	5088-8	Air Cleaner MD21dMTMTL	$89.82	Add to Cart
8	5088-1	Air Cleaner Band	$27.20	Add to Cart
9	5090-3	Safety Filter Insert	$25.65	Add to Cart
10	5090-1	Air Cleaner Cartridge	$35.90	Add to Cart
11	5088-5	Air Cleaner Draw Latch	$12.20	Add to Cart
12	5088-11	Air Cleaner Cap	$42.02	Add to Cart
13	5090-2	Vacuator Valve	$12.75	Add to Cart
14	7016	Air Intake Hose	$63.46	Add to Cart
15	7840	Hose Clamp 1516 214	$4.13	Add to Cart
16	5091-9	Street Elbow 9018x18	$6.72	Add to Cart
17	5091-0	18 Pipe Thread Male WBarb	$7.26	Add to Cart
18	M258	Vacuum Hose	$3.26	Add to Cart
19	5091-13	Air Flow Indicator WBrkt Vacuum 20H2O	$25.48	Add to Cart
20	7031-2	NR Tube Support Arm	$13.13	Add to Cart
21	7437-1	Exhaust Manifold Shield	$6.10	Add to Cart
22	NS	Spring Washer (04512-50080 Kubota)
23	7437-6	Engine Brace	$26.35	Add to Cart
24	NS	Muffler (15262-12110 Kubota)
25	NS	Muffler Gasket (15371-12370 Kubota)
26	7034	Spacer Muffler	$18.52	Add to Cart
27	7354	Motor Mount	$36.72	Add to Cart
28	7306-15	Water Temperature Sender	$42.86	Add to Cart
29	7306-12	NR Temp Sender Adapter	$6.31	Add to Cart
30	7306-13	NR Oil Pressure Switch	$41.01	Add to Cart
31	7023	Oil Filter SpinOn	$23.45	Add to Cart
32	7047-2	Manifold Heat Shield	$16.59	Add to Cart
33	7013-2	Tail Pipe	$53.80	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F091	51618x58 Hex Bolt	$0.65	Add to Cart
	F217	71614 Hex Nut	$0.65	Add to Cart
	F218	716 Split Lock Washer	$0.34	Add to Cart
	F219	71614x114 Hex Bolt	$2.06	Add to Cart
	F226	51618x78 Hex Bolt	$0.78	Add to Cart
	F239	71614x112 Hex Bolt	$1.44	Add to Cart
	F249	M10 Split Lock Washer	$0.36	Add to Cart
	F253	M8x125x35 Bolt GRD 8	$2.45	Add to Cart
	F255	51618x112 Hex Bolt	$1.06	Add to Cart
	F311	M10x125x20 Hex Bolt	$2.88	Add to Cart
	F327	M8x125x45 GRD 8 Hex Bolt	$3.34	Add to Cart
	F482	832 Nylock Nut	$0.17	Add to Cart
	F483	832x34 PPHMS	$0.17	Add to Cart
