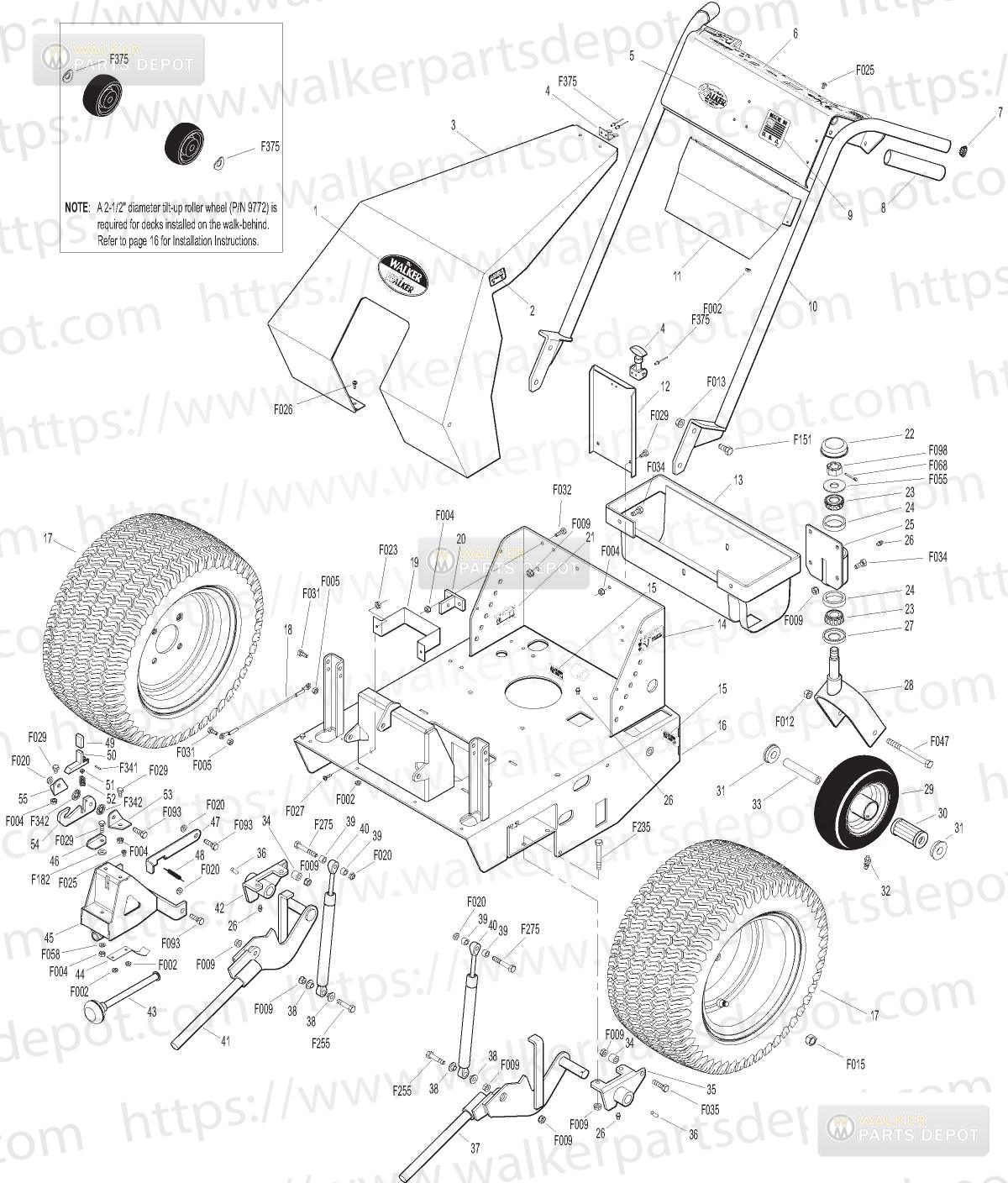

PARTS > MW MANUALS > 2003-11-01, 9000, Serial 62821-CURRENT > Body - Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	9800	NR Decal Walker By Walker Lexan	$15.40	Add to Cart
2	5805	NR Decal Engine Exhaust	$2.45	Add to Cart
3	9100	Hood	$146.37	Add to Cart
4	9110	Hood Latch Assembly	$15.35	Add to Cart
5	5803	(NR) Decal- Walker Mfg./Lexan	$5.66	Add to Cart
6	9801	NR Decal Contrl PanelLexan	$21.49	Add to Cart
7	9851	Handlebar End Plug	$2.95	Add to Cart
8	9850	Handlebar Grip Foam	$7.13	Add to Cart
9	5856	NR Decal Made In USA	$1.30	Add to Cart
10	9700	NR Handlebar	$165.06	Add to Cart
11	9700-1	NR Cover Plate Control	$44.40	Add to Cart
12	9101	Hood Support Rear	$14.32	Add to Cart
13	9046	Gas Tank Mount	$74.59	Add to Cart
14	9803	NR Decal Blade ClutchLexan	$10.87	Add to Cart
15	9804	NR Decal Grxl LockoutLex	$1.75	Add to Cart
16	9300	Chassis Frame	$328.59	Add to Cart
17	5075	LP Wheel & Tire (18x 8.5-10)
18	9102	Cable	$6.91	Add to Cart
19	9310	Battery Strap	$5.62	Add to Cart
20	9620	Actuator Mount Tab	$8.30	Add to Cart
21	9802	NR Decal Parking BrkLexan	$10.87	Add to Cart
22	8769-9	Dust Cap Deck Caster	$5.60	Add to Cart
23	8037	Bearing Cone 34ID	$12.09	Add to Cart
24	8769-1	Bearing Cup134x1716	$7.72	Add to Cart
25	9771	NR MountCaster Fork	$80.43	Add to Cart
26	5830	Grease Fitting 1428	$2.47	Add to Cart
27	8768-1	Seal 134x118	$6.70	Add to Cart
28	5770-1	Caster Wheel Fork02	$57.41	Add to Cart
29	5715-4	SU5715 13 5714 6 NR Cst Whel Pneu 8x3 00 4	$61.28	Add to Cart
30	5715-5	Bearing Caster Wheel	$11.04	Add to Cart
31	5714-7	NR Bearing Cap	$7.16	Add to Cart
32	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
33	5714-3	Axle Spacer Tube	$12.73	Add to Cart
34	9430-1	Spacer Tube 625x322x5625	$7.18	Add to Cart
35	9434	Deck Arm MountRH	$42.90	Add to Cart
36	9023	6mmx20mm Dowel Pin
37	9431	Deck ArmLH	$52.69	Add to Cart
38	9432-1	NR Dampener Bshng 38x516	$8.83	Add to Cart
39	9432-2	Dampener Spacer 38x12	$9.00	Add to Cart
40	9432	Dampener Deck Arm	$40.11	Add to Cart
41	9430	Deck Arm RH	$52.69	Add to Cart
42	9433	Deck Arm MountLH	$42.90	Add to Cart
43	5862	NR FSC Knob	$9.56	Add to Cart
44	9347-1	Spring Lift Rod	$22.18	Add to Cart
45	9344	NR Deck Spring Hitch	$44.09	Add to Cart
46	9346	Spring Clip Lock	$3.91	Add to Cart
47	9345	Lock Arm Spring Hitch	$10.13	Add to Cart
48	7222	Extension Spring 14x3	$6.96	Add to Cart
49	5847	Plastic Tip	$0.65	Add to Cart
50	5744-20	Spring Arm TiltUp Latch	$12.43	Add to Cart
51	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
52	5744-15	Compression Spg 38x58	$2.26	Add to Cart
53	5744-14	Mount AngleRH	$9.41	Add to Cart
54	5744-12	Hook TiltUp Latch	$10.22	Add to Cart
55	5744-13	Mount AngleLH	$9.41	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F015	1220 Wheel Lug Nut	$2.54	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F023	1024 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F035	51618x114 Hex Bolt	$0.94	Add to Cart
	F047	3816x412 Hex Bolt	$3.12	Add to Cart
	F055	58 SAE Washer	$0.65	Add to Cart
	F058	14 Wave Spring Washer	$5.23	Add to Cart
	F068	18x1 Cotter Pin	$0.18	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F098	5818 Slotted Hex Nut	$3.50	Add to Cart
	F151	3816x78 Hex Bolt	$1.18	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F235	51618x212 Hex Bolt	$1.75	Add to Cart
	F255	51618x112 Hex Bolt	$1.06	Add to Cart
	F275	51618x2 Hex Bolt	$1.42	Add to Cart
	F341	Coil Roll Pin 764x916	$0.34	Add to Cart
	F342	516 Conical Washer	$1.98	Add to Cart
	F375	64AAD Alum Pop Rivet 316 DIA X 14 GRIP	$0.50	Add to Cart
