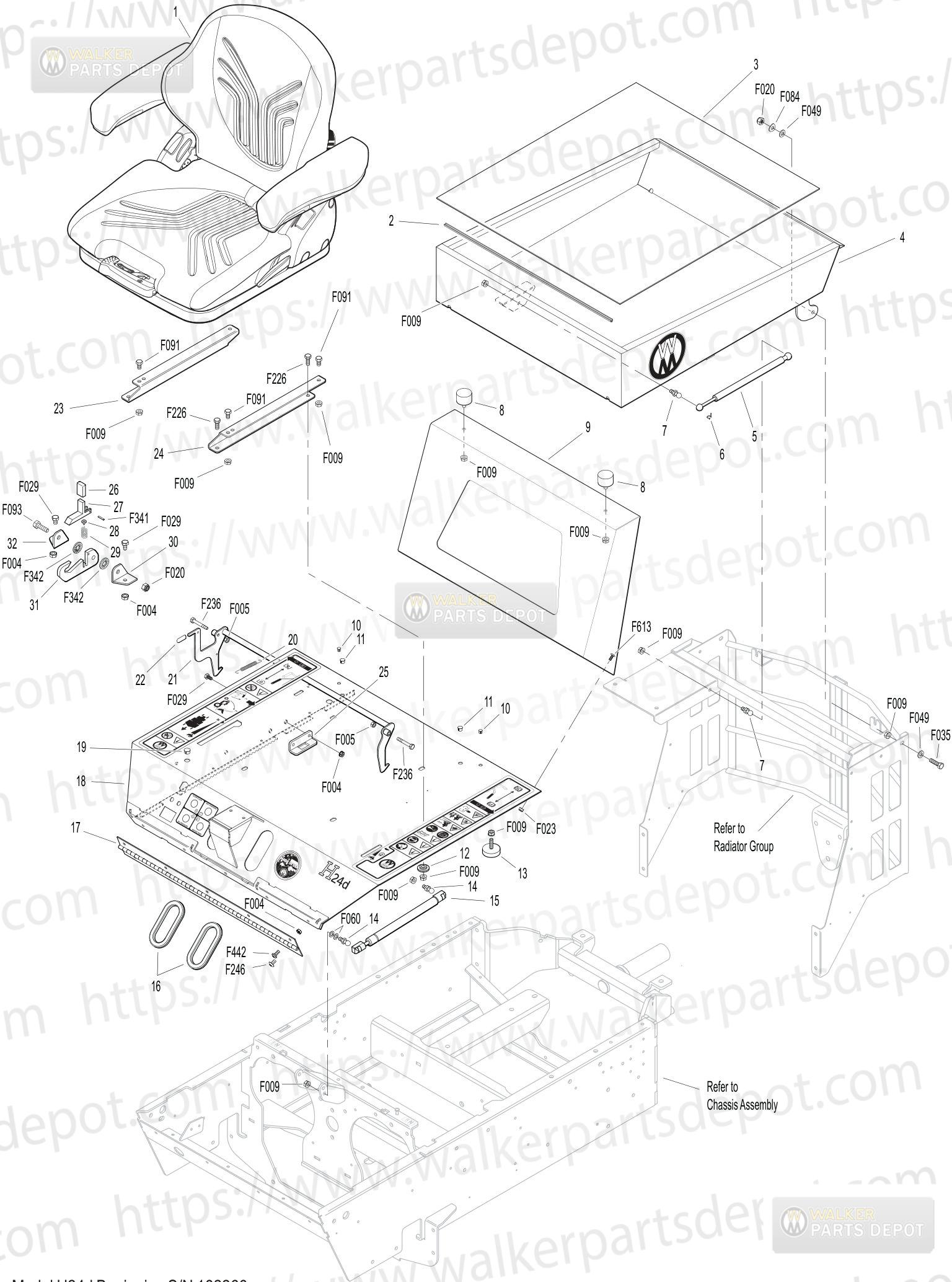

PARTS > MH MANUALS > 2023-08-24, 2000-45, Serial 182266-190454 > Body Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	6103-14	Suspension Seat	$1,069.00	Add to Cart
2	M112	Edge Molding Sold By The Foot	$3.12	Add to Cart
3	8650-12	Bed Liner (23-5/16 x 25-3/8)
4	2650-2	NR Utility Bed MH24d Begin SN 153116	$310.59	Add to Cart
5	7145	Gas Spring Assembly	$39.60	Add to Cart
6	7147	Spring Clip	$1.44	Add to Cart
7	7146	13mm Ball Stud	$4.92	Add to Cart
8	7845-1	Rubber Bumper 1375X750	$5.66	Add to Cart
9	2105-13	Front Bed Support
10	5989-3	Dome Plug 516	$0.30	Add to Cart
11	5989-4	Dome Plug 38	$0.83	Add to Cart
12	6105-1	Shoulder Washer	$9.86	Add to Cart
13	7844	Rubber Bumper 125x250	$4.06	Add to Cart
14	5146	10mm Ball Stud	$3.77	Add to Cart
15	2145	Gas Spring	$18.26	Add to Cart
16	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
17	2504-4	Hinge 225	$20.15	Add to Cart
18	2100-9	Front Body
19	5989-55	Dome Plug 12	$0.65	Add to Cart
20	7222	Extension Spring 14x3	$6.96	Add to Cart
21	2383	Body Latch Hook	$35.16	Add to Cart
22	7854	Plastic TipRed	$0.50	Add to Cart
23	6103-44	Grammer Seat Mount ChannelRH	$16.08	Add to Cart
24	6103-45	Grammer Seat Mount ChannelLH	$16.08	Add to Cart
25	4102-1	Body GuideUpper	$7.13	Add to Cart
26	5847	Plastic Tip	$0.65	Add to Cart
27	5744-20	Spring Arm TiltUp Latch	$12.43	Add to Cart
28	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
29	5744-15	Compression Spg 38x58	$2.26	Add to Cart
30	5744-13	Mount AngleLH	$9.41	Add to Cart
31	5744-12	Hook TiltUp Latch	$10.22	Add to Cart
32	5744-14	Mount AngleRH	$9.41	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F023	1024 ESNA Nut	$0.34	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F035	51618x114 Hex Bolt	$0.94	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F060	AN960516 Washer	$0.29	Add to Cart
	F084	516 Wave Spring Washer	$1.58	Add to Cart
	F091	51618x58 Hex Bolt	$0.65	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F226	51618x78 Hex Bolt	$0.78	Add to Cart
	F236	1420x134 Hex Bolt	$0.84	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F341	Coil Roll Pin 764x916	$0.34	Add to Cart
	F342	516 Conical Washer	$1.98	Add to Cart
	F442	1420x58 PTHMS	$0.31	Add to Cart
	F613	102412 Truss Head Torx	$1.22	Add to Cart
