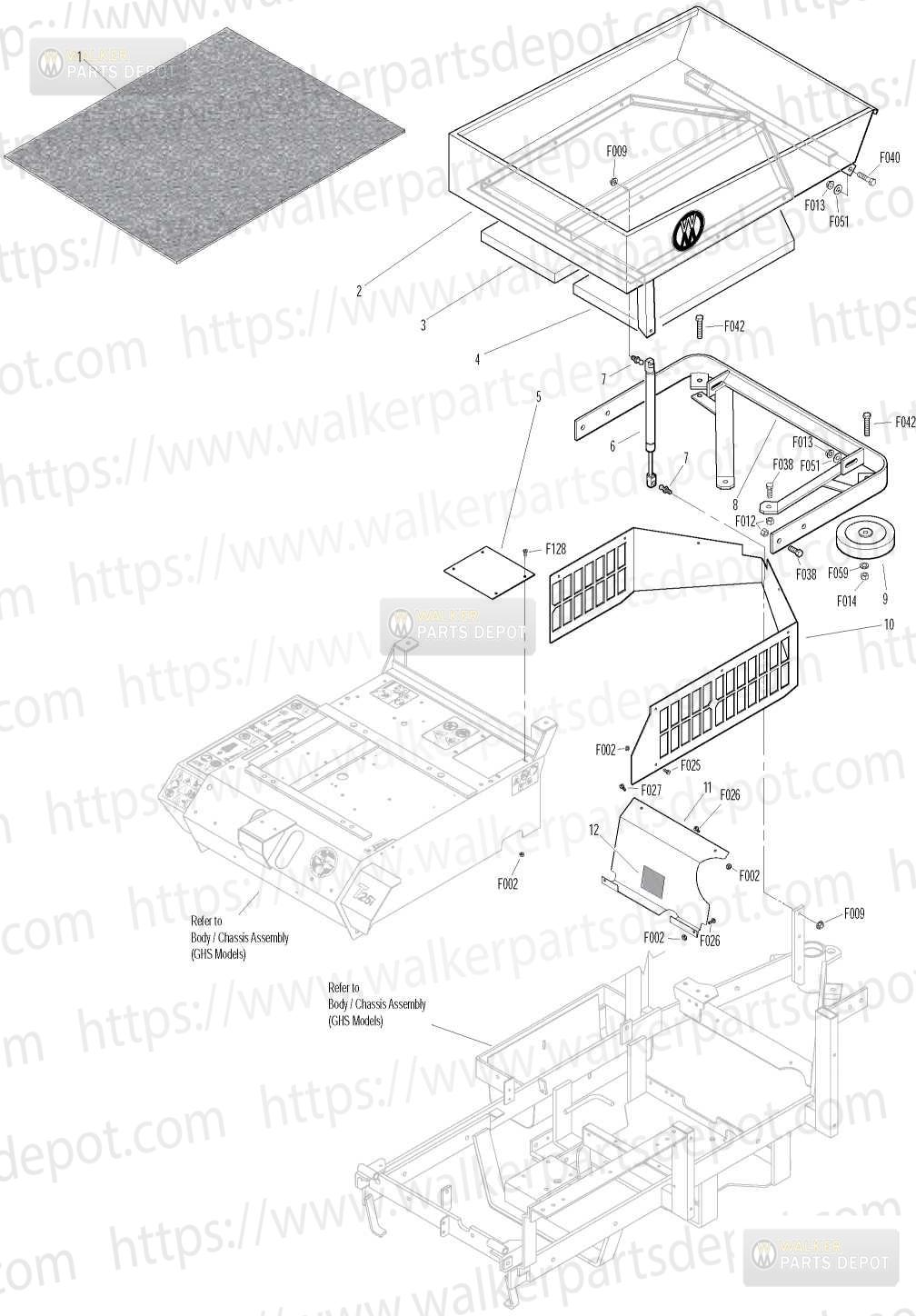

PARTS > MT MANUALS > 2013-11-18, 8000-18, Serial 125598-134120 > Body Assembly SD Models:

Diagram #	Part #	Description	Price	Add to Cart
1	8650-10	Bed Liner 215x275	$59.96	Add to Cart
2	8650-2	NR Utility Bed TEFI Preclean9731199ON	$759.57	Add to Cart
3	7190-2	Insulation Foam PadRH	$19.23	Add to Cart
4	7190-1	Insulation Foam PadLH	$24.27	Add to Cart
5	7153-3	Cover Plate	$10.80	Add to Cart
6	7145	Gas Spring Assembly	$39.60	Add to Cart
7	7146	13mm Ball Stud	$4.92	Add to Cart
8	7521	NR Rear Bumper EFITSD	$106.89	Add to Cart
9	5162	Roller Wheel 5 Rubber	$13.40	Add to Cart
10	8105-1	NR Rear Body Panel	$86.14	Add to Cart
11	8389-2	NR Splash Guard With Mat	$35.77	Add to Cart
12	8389-12	Rubber Mat 2x2	$4.51	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F042	3816x214 Hex Bolt	$1.97	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F128	1024x38 PTHMS	$0.29	Add to Cart
1	8650-10	Bed Liner 215x275	$59.96	Add to Cart
2	8650-2	NR Utility Bed TEFI Preclean9731199ON	$759.57	Add to Cart
3	7190-2	Insulation Foam PadRH	$19.23	Add to Cart
4	7190-1	Insulation Foam PadLH	$24.27	Add to Cart
5	7153-3	Cover Plate	$10.80	Add to Cart
6	7145	Gas Spring Assembly	$39.60	Add to Cart
7	7146	13mm Ball Stud	$4.92	Add to Cart
8	7521	NR Rear Bumper EFITSD	$106.89	Add to Cart
9	5162	Roller Wheel 5 Rubber	$13.40	Add to Cart
10	8105-1	NR Rear Body Panel	$86.14	Add to Cart
11	8389-2	NR Splash Guard With Mat	$35.77	Add to Cart
12	8389-12	Rubber Mat 2x2	$4.51	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F042	3816x214 Hex Bolt	$1.97	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F128	1024x38 PTHMS	$0.29	Add to Cart
