Part Lookup Tool

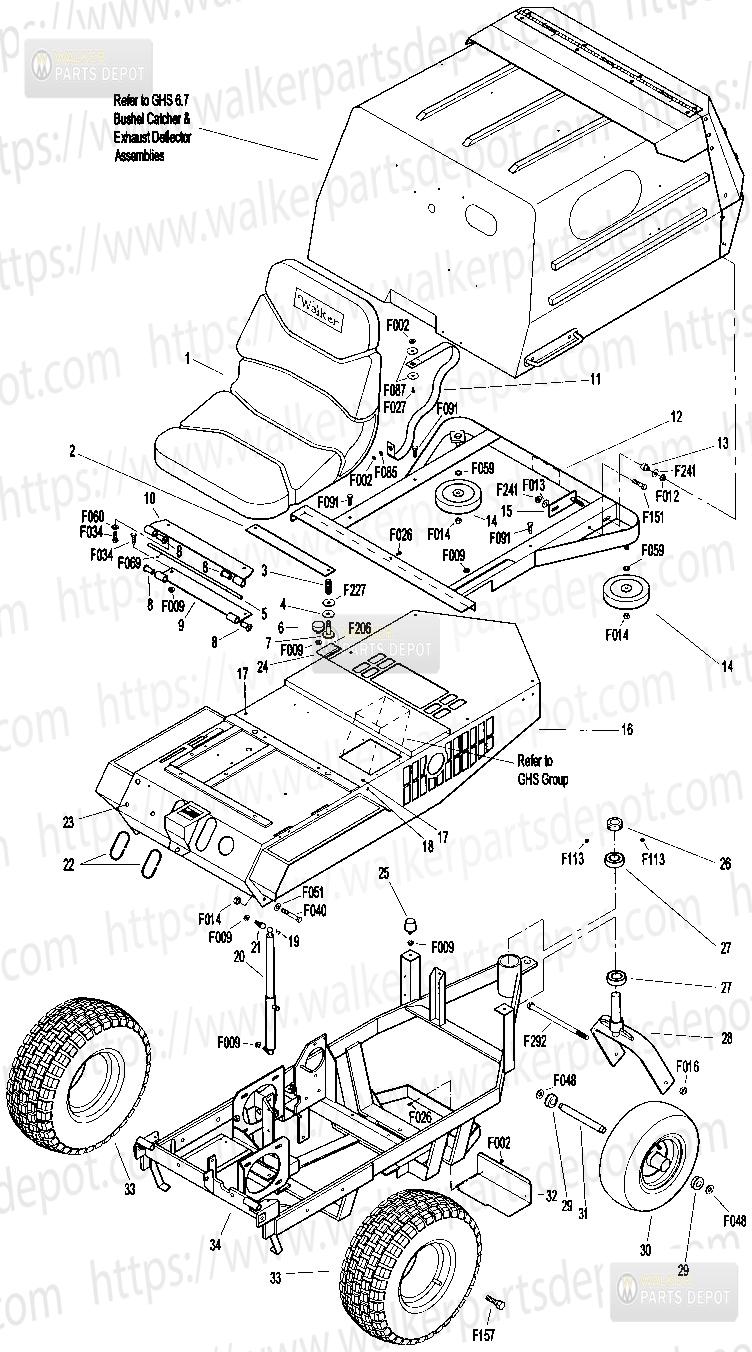

PARTS > MS MANUALS > 1997-11-05, 5000-2, Serial 20381-60135 > Body Chassis (GHS Models):

Diagram #	Part #	Description	Price	Add to Cart
1	5103	NR Seat	$250.95	Add to Cart
2	7203	Seat Spring Plate
3	7223	Compression Spring (1/2 x 1)
4	7846	Washer 38x114x18	$8.06	Add to Cart
5	7205-5	Pivot Pin
6	7845	Rubber Bumper 1375X63	$4.80	Add to Cart
7	7204	Shoulder Bolt Seat Mount	$7.07	Add to Cart
8	5103-2	Pivot Bushing 516ID	$4.56	Add to Cart
9	7205-1	Lower Plate, Seat Hinge
10	7205-2	Upper Plate, Seat Hinge
	7205	Seat Hinge Assembly (Includes Items #5,8,9,10& F069)
11	5566	NR Tilt Stop Strap67	$25.61	Add to Cart
12	5516	67 Rear BumperGHS	$262.50	Add to Cart
13	7516-5	Catcher Pivot Bushing	$11.63	Add to Cart
14	5162	Roller Wheel 5 Rubber	$13.40	Add to Cart
15	7517-2	Catcher Pivot Plate	$7.80	Add to Cart
16	5100-5	Welded Body S9502	$525.84	Add to Cart
17	5989-3	Dome Plug 516	$0.30	Add to Cart
18	5989-4	Dome Plug 38	$0.83	Add to Cart
19	7147	Spring Clip	$1.44	Add to Cart
20	5145	NR Gas Spring Assembly	$54.22	Add to Cart
21	7146	13mm Ball Stud	$4.92	Add to Cart
22	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
23	5989-5	Dome Plug 716	$1.04	Add to Cart
24	NS	Body ID Plate
25	5845	Rubber Bumper 150x125	$7.12	Add to Cart
26	5267-1	Retainer Collar 1	$13.52	Add to Cart
27	5270-1	Ball Bearing	$9.20	Add to Cart
28	5420-2	Tail Wheel Fork	$84.92	Add to Cart
29	5037-1	Bearing Tail Wheel	$7.12	Add to Cart
30	5035	Tail Wheel Tire Assy 13x6506	$102.27	Add to Cart
	5035-1	NR Tail Whl Tire 13x6506	$122.96	Add to Cart
	5036	Tail Wheel Hub 6x45	$84.63	Add to Cart
31	5038-1	Axle Spacer Tube 658	$17.85	Add to Cart
32	5127	Trash Guard	$13.68	Add to Cart
33	5033-2	Wheel & Tire Assembly (18x 6.50-8)
	5030-2	Tire Only (18x 6.50-8)
	5031-2	NR Standard Wheel 8x55	$99.08	Add to Cart
	5030-4	Tire Tube 18x8508	$23.41	Add to Cart
34	5300-8	Chassis Frame
	F002	1024 Keps Nut	$0.18	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F016	1213 SelfLocking Nut	$1.51	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F048	12 SAE Washer	$0.50	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F060	AN960516 Washer	$0.29	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F087	10x78 Fender Washer	$0.65	Add to Cart
	F091	51618x58 Hex Bolt	$0.65	Add to Cart
	F113	51618x516 Set Screw	$0.43	Add to Cart
	F151	3816x78 Hex Bolt	$1.18	Add to Cart
	F157	1220x114 Whl Lug Bolt	$5.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F227	38x114x18 Plastic Shoulder Washer	$8.10	Add to Cart
	F241	375x875x10 Washer	$0.79	Add to Cart
	F292	1213x812 Hex BoltGR5	$5.76	Add to Cart
