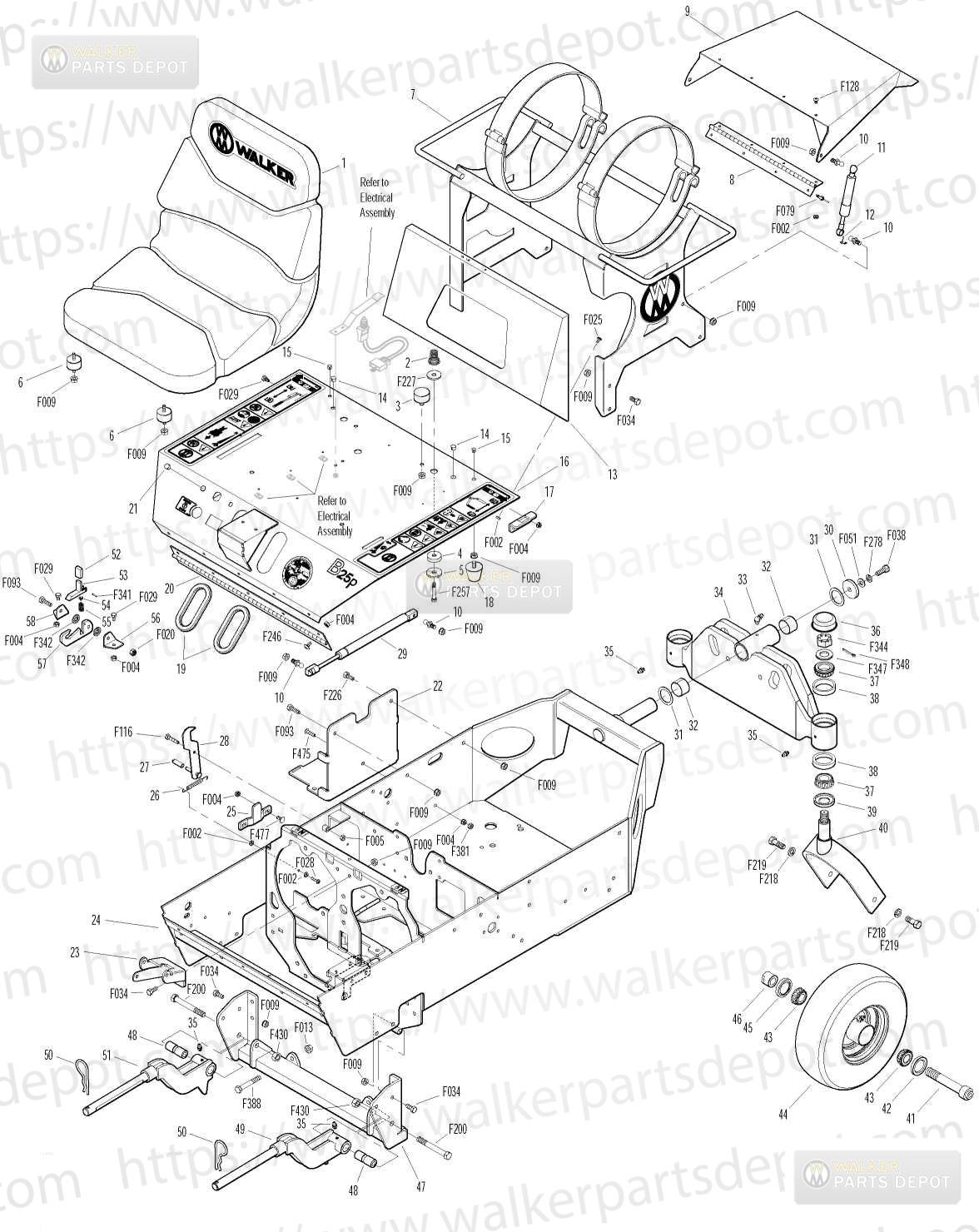

PARTS > MB MANUALS > 2014-02-07, 4000-8, Serial 126729-133533 > Body Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5103	NR Seat	$250.95	Add to Cart
2	7223-4	Compression Spring	$4.12	Add to Cart
3	7845-1	Rubber Bumper 1375X750	$5.66	Add to Cart
4	7434	Washer 38x114x14	$4.25	Add to Cart
5	5841-1	Retainer Washer	$1.51	Add to Cart
6	7440-5	Shock Mount 114x34	$8.21	Add to Cart
7	4301-7	Propane Tank Mount
8	4105-10	Rear Body Hinge 2 x 13	$11.15	Add to Cart
9	4105-6	Rear Body MB25P	$83.54	Add to Cart
10	5146	10mm Ball Stud	$3.77	Add to Cart
11	5155-4	Gas Spring	$20.87	Add to Cart
12	5147	Spring Clip	$1.02	Add to Cart
13	4100-48	Front Rear Body
14	5989-4	Dome Plug 38	$0.83	Add to Cart
15	5989-3	Dome Plug 516	$0.30	Add to Cart
16	4100-4	Front Body MB23iMB25P	$257.25	Add to Cart
17	4102-1	Body GuideUpper	$7.13	Add to Cart
18	5845	Rubber Bumper 150x125	$7.12	Add to Cart
19	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
20	4504-3	Hinge 19	$31.94	Add to Cart
21	5989-5	Dome Plug 716	$1.04	Add to Cart
22	4910-6	NR Battery Mount	$40.41	Add to Cart
23	4215-9	Shock MountBody Lift Arm	$18.59	Add to Cart
24	4301-8	Chassis FrameMB19MB23MB25P	$1,338.00	Add to Cart
25	4102-2	Body GuideLower	$7.18	Add to Cart
26	7222	Extension Spring 14x3	$6.96	Add to Cart
27	7854	Plastic TipRed	$0.50	Add to Cart
28	7383-1	Body Latch Hook	$7.18	Add to Cart
29	4145-2	Gas Spring Assembly	$17.31	Add to Cart
30	4401-4	Washer 134x38x14Thk	$5.40	Add to Cart
31	4301-2	Fiberglide Thrust Washer	$11.22	Add to Cart
32	4301-3	Fiberglide Bearing	$12.44	Add to Cart
33	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
34	4301-1	Tail Wheel Pivot	$245.70	Add to Cart
35	5830	Grease Fitting 1428	$2.47	Add to Cart
36	8769-8	Dust Cap Deck Caster	$10.62	Add to Cart
37	8769-6	Bearing Cone 1ID	$11.86	Add to Cart
38	8769-5	Bearing Cup 2x158	$7.52	Add to Cart
39	8769-7	Seal	$5.66	Add to Cart
40	8765-11	SU8765 14 Caster Wheel Fork	$59.13	Add to Cart
41	8767	Axle Caster Whl 518	$37.20	Add to Cart
42	8037-1	Seal- Outer (1-3/4x1-1/8)	$7.16	Add to Cart
43	8037	Bearing Cone 34ID	$12.09	Add to Cart
44	8768	Caster Wheel- Pneumatic (11x4-5)	$73.45	Add to Cart
	8768-3	Tire Pneumatic 11x45	$102.02	Add to Cart
	8768-5	Caster Wheel 5x3 Prior to SN 160519	$35.84	Add to Cart
45	8768-2	Seal Reverse Lip	$10.08	Add to Cart
46	8766	Axle Nut 3416	$16.45	Add to Cart
47	4301-10	Deck Arm Support Mount	$173.15	Add to Cart
48	6840-1	Support Arm Bushing 2116	$17.60	Add to Cart
49	4431-1	NR Deck Support ArmLH	$79.63	Add to Cart
50	5775-2	Hitch Pin 6	$3.24	Add to Cart
51	4430-1	NR Deck Support ArmRH	$81.94	Add to Cart
52	5847	Plastic Tip	$0.65	Add to Cart
53	5744-20	Spring Arm TiltUp Latch	$12.43	Add to Cart
54	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
55	5744-15	Compression Spg 38x58	$2.26	Add to Cart
56	5744-13	Mount AngleLH	$9.41	Add to Cart
57	5744-12	Hook TiltUp Latch	$10.22	Add to Cart
58	5744-14	Mount AngleRH	$9.41	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F116	1420x114 Hex Bolt	$0.65	Add to Cart
	F128	1024x38 PTHMS	$0.29	Add to Cart
	F200	71620x3 Grade 8 Bolt	$4.06	Add to Cart
	F218	716 Split Lock Washer	$0.34	Add to Cart
	F219	71614x114 Hex Bolt	$2.06	Add to Cart
	F226	51618x78 Hex Bolt	$0.78	Add to Cart
	F227	38x114x18 Plastic Shoulder Washer	$8.10	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F257	3816 x11116 Shoulder Bolt	$2.51	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F341	Coil Roll Pin 764x916	$0.34	Add to Cart
	F342	516 Conical Washer	$1.98	Add to Cart
	F344	3416 Slotted Hex Nut	$3.12	Add to Cart
	F347	34 SAE Washer	$1.18	Add to Cart
	F348	18x112 Cotter Pin	$0.18	Add to Cart
	F381	1420 Hex Nut	$0.18	Add to Cart
	F388	3816x212 Hex Bolt	$2.26	Add to Cart
	F430	71620 ESNA Nut	$0.79	Add to Cart
	F475	1420x1 PFH Screw	$0.34	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
