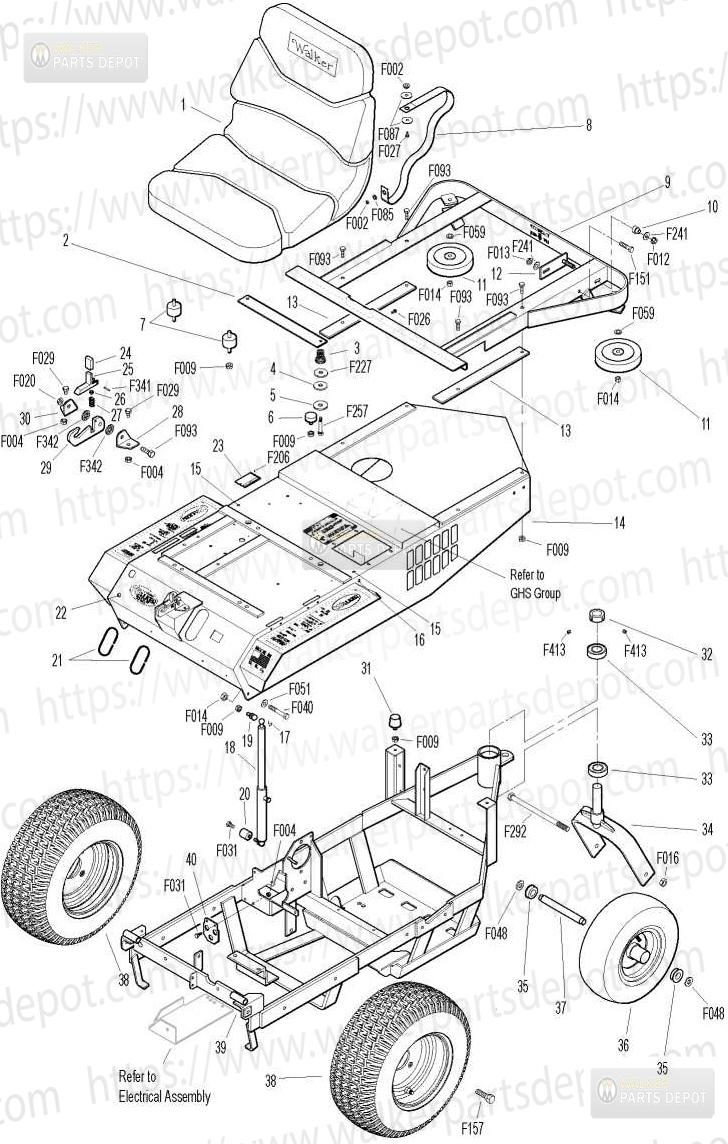

PARTS > MS MANUALS > 2014-04-25, 5000-22, Serial 117172-128441 > Body Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5103	NR Seat	$250.95	Add to Cart
2	7203	Seat Spring Plate
3	7223-1	Compression Spring
4	7846	Washer 38x114x18	$8.06	Add to Cart
5	5841-1	Retainer Washer	$1.51	Add to Cart
6	7845	Rubber Bumper 1375X63	$4.80	Add to Cart
7	7440-5	Shock Mount 114x34	$8.21	Add to Cart
8	5566	NR Tilt Stop Strap67	$25.61	Add to Cart
9	5517-1	Bumper
10	7516-5	Catcher Pivot Bushing	$11.63	Add to Cart
11	5162	Roller Wheel 5 Rubber	$13.40	Add to Cart
12	7517-2	Catcher Pivot Plate	$7.80	Add to Cart
13	6100-17	Bumper Riser BarMC	$12.21	Add to Cart
14	5100-8	Welded BodyMS RePower	$529.83	Add to Cart
15	5989-3	Dome Plug 516	$0.30	Add to Cart
16	5989-4	Dome Plug 38	$0.83	Add to Cart
17	7147	Spring Clip	$1.44	Add to Cart
18	5145	NR Gas Spring Assembly	$54.22	Add to Cart
19	7146	13mm Ball Stud	$4.92	Add to Cart
20	5154	NR Spacer Gas Spring 750x51618x10	$11.52	Add to Cart
21	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
22	5989-5	Dome Plug 716	$1.04	Add to Cart
23	NS	Body ID Plate
24	5847	Plastic Tip	$0.65	Add to Cart
25	5744-20	Spring Arm TiltUp Latch	$12.43	Add to Cart
26	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
27	5744-15	Compression Spg 38x58	$2.26	Add to Cart
28	5744-13	Mount AngleLH	$9.41	Add to Cart
29	5744-12	Hook TiltUp Latch	$10.22	Add to Cart
30	5744-14	Mount AngleRH	$9.41	Add to Cart
31	5845	Rubber Bumper 150x125	$7.12	Add to Cart
32	5267-1	Retainer Collar 1	$13.52	Add to Cart
33	5270-1	Ball Bearing	$9.20	Add to Cart
34	5420-2	Tail Wheel Fork	$84.92	Add to Cart
35	5037-1	Bearing Tail Wheel	$7.12	Add to Cart
36	5035	Tail Wheel Tire Assy 13x6506	$102.27	Add to Cart
	5035-1	NR Tail Whl Tire 13x6506	$122.96	Add to Cart
	5036	Tail Wheel Hub 6x45	$84.63	Add to Cart
37	5038-1	Axle Spacer Tube 658	$17.85	Add to Cart
38	5033-6	Wheel Tire 18x7008 50306 Tire 50312 Wheel	$144.38	Add to Cart
	5030-6	Standard Tire 18x7008	$131.88	Add to Cart
	5031-2	NR Standard Wheel 8x55	$99.08	Add to Cart
	5030-4	Tire Tube 18x8508	$23.41	Add to Cart
39	5300-3	Chassis Frame S Re Power	$543.19	Add to Cart
40	5301-3	Safety Switch Mount	$13.38	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F016	1213 SelfLocking Nut	$1.51	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F048	12 SAE Washer	$0.50	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F087	10x78 Fender Washer	$0.65	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F151	3816x78 Hex Bolt	$1.18	Add to Cart
	F157	1220x114 Whl Lug Bolt	$5.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F227	38x114x18 Plastic Shoulder Washer	$8.10	Add to Cart
	F241	375x875x10 Washer	$0.79	Add to Cart
	F257	3816 x11116 Shoulder Bolt	$2.51	Add to Cart
	F292	1213x812 Hex BoltGR5	$5.76	Add to Cart
	F341	Coil Roll Pin 764x916	$0.34	Add to Cart
	F342	516 Conical Washer	$1.98	Add to Cart
	F413	51624x516 Set Screw	$0.58	Add to Cart
