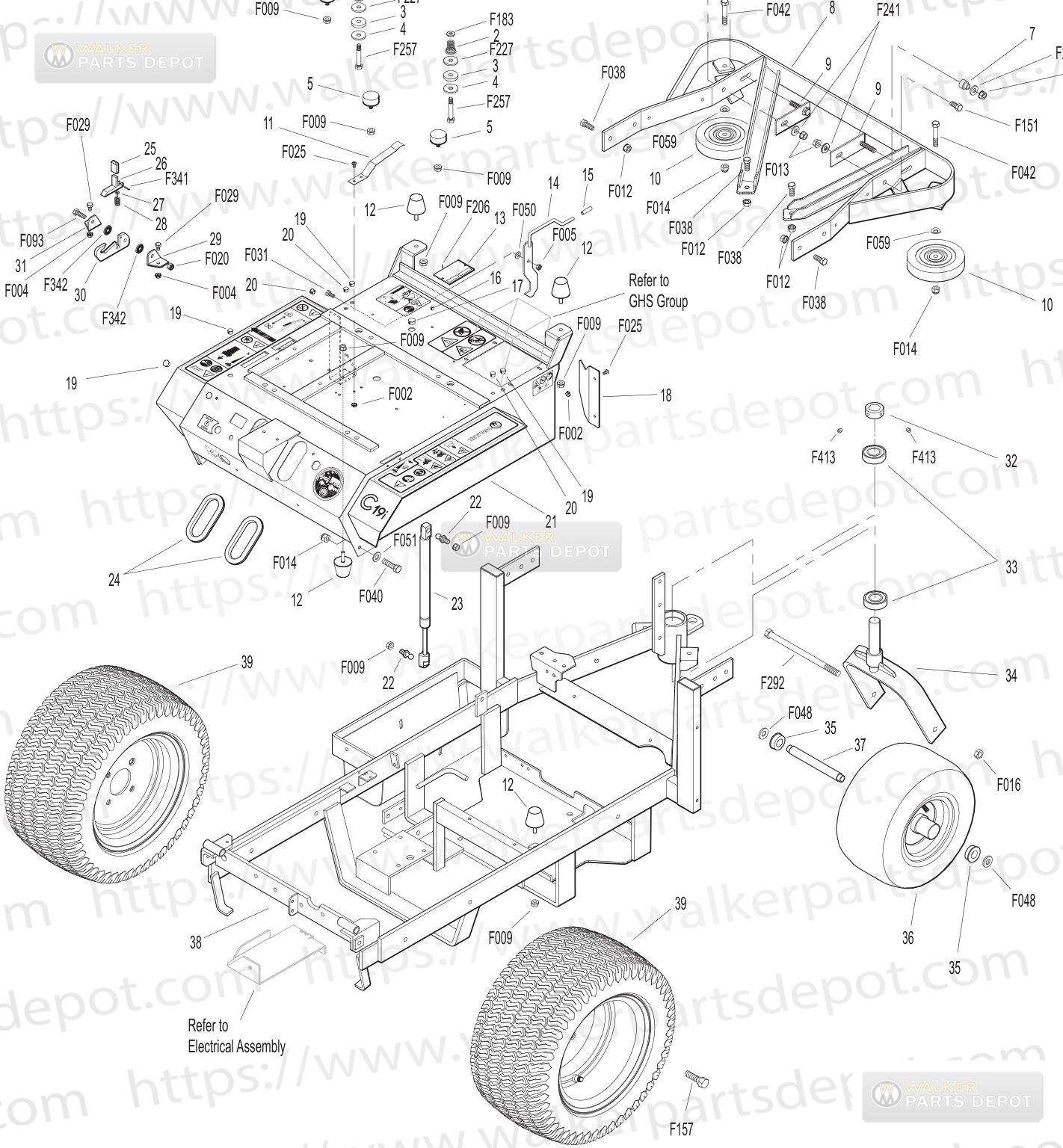

PARTS > MC MANUALS > 2015-05-20, 6000-18, Serial 134498-147790 > Body Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5103	NR Seat	$250.95	Add to Cart
2	7223-4	Compression Spring	$4.12	Add to Cart
3	7846	Washer 38x114x18	$8.06	Add to Cart
4	5841-1	Retainer Washer	$1.51	Add to Cart
5	7845-1	Rubber Bumper 1375X750	$5.66	Add to Cart
6	7440-5	Shock Mount 114x34	$8.21	Add to Cart
7	7516-5	Catcher Pivot Bushing	$11.63	Add to Cart
8	5517-8	NR 70 Rear Bumper MC19	$211.26	Add to Cart
9	7517-2	Catcher Pivot Plate	$7.80	Add to Cart
10	5162	Roller Wheel 5 Rubber	$13.40	Add to Cart
11	2505	NR Leaf Spring	$11.76	Add to Cart
12	5845	Rubber Bumper 150x125	$7.12	Add to Cart
13	NS	Body ID Plate
14	7383-3	NR Body Latch Hook 212 Side Bars	$9.94	Add to Cart
15	7854	Plastic TipRed	$0.50	Add to Cart
16	5989-12	Dome Plug 316	$0.50	Add to Cart
17	5989-10	Dome Plug 916	$0.65	Add to Cart
18	8118	Heat Deflector	$7.42	Add to Cart
19	5989-3	Dome Plug 516	$0.30	Add to Cart
20	5989-4	Dome Plug 38	$0.83	Add to Cart
21	6100-24	Front Body MC19i	$474.81	Add to Cart
22	5146	10mm Ball Stud	$3.77	Add to Cart
23	2145	Gas Spring	$18.26	Add to Cart
24	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
25	5847	Plastic Tip	$0.65	Add to Cart
26	5744-20	Spring Arm TiltUp Latch	$12.43	Add to Cart
27	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
28	5744-15	Compression Spg 38x58	$2.26	Add to Cart
29	5744-13	Mount AngleLH	$9.41	Add to Cart
30	5744-12	Hook TiltUp Latch	$10.22	Add to Cart
31	5744-14	Mount AngleRH	$9.41	Add to Cart
32	5267-1	Retainer Collar 1	$13.52	Add to Cart
33	5270-1	Ball Bearing	$9.20	Add to Cart
34	5420-2	Tail Wheel Fork	$84.92	Add to Cart
35	5037-1	Bearing Tail Wheel	$7.12	Add to Cart
36	5035	Tail Wheel Tire Assy 13x6506	$102.27	Add to Cart
	5035-1	NR Tail Whl Tire 13x6506	$122.96	Add to Cart
	5036	Tail Wheel Hub 6x45	$84.63	Add to Cart
37	5038-1	Axle Spacer Tube 658	$17.85	Add to Cart
38	6307-2	Chassis Frame MC19	$1,134.00	Add to Cart
39	5075-1	LP Wheel Tire 18x8 50 10	$173.82	Add to Cart
	5075-2	LP Tire 18x85010	$130.94	Add to Cart
	5075-5	LP Wheel 10x7	$117.60	Add to Cart
	5033-6	Wheel Tire 18x7008 50306 Tire 50312 Wheel	$144.38	Add to Cart
	5030-6	Standard Tire 18x7008	$131.88	Add to Cart
	5031-2	NR Standard Wheel 8x55	$99.08	Add to Cart
	5030-4	Tire Tube 18x8508	$23.41	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F016	1213 SelfLocking Nut	$1.51	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F042	3816x214 Hex Bolt	$1.97	Add to Cart
	F048	12 SAE Washer	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F151	3816x78 Hex Bolt	$1.18	Add to Cart
	F157	1220x114 Whl Lug Bolt	$5.06	Add to Cart
	F183	312x700x074 Washer	$0.58	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F227	38x114x18 Plastic Shoulder Washer	$8.10	Add to Cart
	F241	375x875x10 Washer	$0.79	Add to Cart
	F257	3816 x11116 Shoulder Bolt	$2.51	Add to Cart
	F292	1213x812 Hex BoltGR5	$5.76	Add to Cart
	F341	Coil Roll Pin 764x916	$0.34	Add to Cart
	F342	516 Conical Washer	$1.98	Add to Cart
	F413	51624x516 Set Screw	$0.58	Add to Cart
