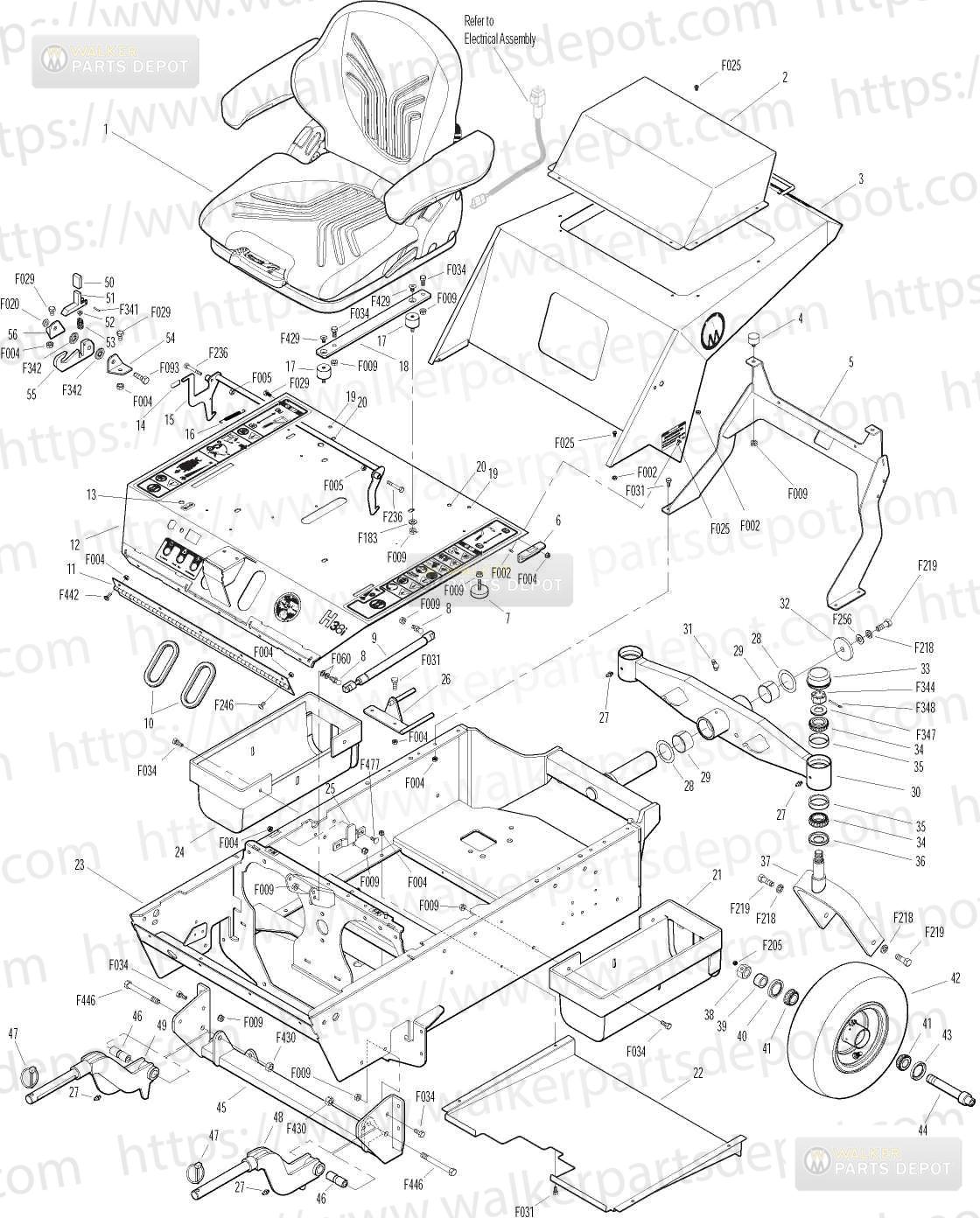

PARTS > MH MANUALS > 2016-02-02, 2000-13, Serial 139019-147210 > Body Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	6103-14	Suspension Seat	$1,069.00	Add to Cart
2	2106-6	Hood ScoopMH38	$52.05	Add to Cart
3	2106-35	Rear Body
4	4845	Rubber Bumper 10x625	$8.50	Add to Cart
5	2104-2	Rear Body Support
6	4102-1	Body GuideUpper	$7.13	Add to Cart
7	7844	Rubber Bumper 125x250	$4.06	Add to Cart
8	5146	10mm Ball Stud	$3.77	Add to Cart
9	2145	Gas Spring	$18.26	Add to Cart
10	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
11	2504-4	Hinge 225	$20.15	Add to Cart
12	2100-6	Front Body (Includes Item # 7)
13	5989-5	Dome Plug 716	$1.04	Add to Cart
14	7854	Plastic TipRed	$0.50	Add to Cart
15	2383	Body Latch Hook	$35.16	Add to Cart
16	7222	Extension Spring 14x3	$6.96	Add to Cart
17	7440-7	Shock Mount	$6.36	Add to Cart
18	6103-35	Suspension Seat Mount	$16.41	Add to Cart
19	5989-4	Dome Plug 38	$0.83	Add to Cart
20	5989-3	Dome Plug 516	$0.30	Add to Cart
21	2046-1	Gas Tank MountLH	$131.78	Add to Cart
22	2301	Debris Shield Kit	$91.22	Add to Cart
23	2300-11	Chassis FrameMH38i	$977.76	Add to Cart
24	2046	Gas Tank Mount	$130.94	Add to Cart
25	4102-2	Body GuideLower	$7.18	Add to Cart
26	2325-8	Belt Guide	$17.55	Add to Cart
27	5830	Grease Fitting 1428	$2.47	Add to Cart
28	2201-2	Fiberglide Thrust Washer	$11.57	Add to Cart
29	2201-3	Fiberglide Bearing 158	$19.05	Add to Cart
30	2300-10	NR Tail Wheel Pivot	$405.51	Add to Cart
31	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
32	2201-4	Washer 214x716x14Thk	$6.77	Add to Cart
33	8769-8	Dust Cap Deck Caster	$10.62	Add to Cart
34	8769-6	Bearing Cone 1ID	$11.86	Add to Cart
35	8769-5	Bearing Cup 2x158	$7.52	Add to Cart
36	8769-7	Seal	$5.66	Add to Cart
37	2770	Caster Wheel Fork	$69.72	Add to Cart
38	8039	Nut Tail Wheel Axle	$6.91	Add to Cart
39	8038-1	Spacer Wheel Axle 750xIDx1125OD	$12.61	Add to Cart
40	8768-2	Seal Reverse Lip	$10.08	Add to Cart
41	8037	Bearing Cone 34ID	$12.09	Add to Cart
42	8035	Tail Whl& Tire(13x5.00-6) (W/Bearing Race)	$75.08	Add to Cart
43	8037-1	Seal- Outer (1-3/4x1-1/8)	$7.16	Add to Cart
44	7038	Wheel Axle34x5916	$43.85	Add to Cart
45	2300-9	Deck Arm Support Mount	$156.24	Add to Cart
46	6840-1	Support Arm Bushing 2116	$17.60	Add to Cart
47	2775	Lynch Pin 516x114	$5.45	Add to Cart
48	2431-2	Deck Support ArmLH	$81.33	Add to Cart
49	2430-2	Deck Support ArmRH	$82.61	Add to Cart
50	5847	Plastic Tip	$0.65	Add to Cart
51	5744-20	Spring Arm TiltUp Latch	$12.43	Add to Cart
52	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
53	5744-15	Compression Spg 38x58	$2.26	Add to Cart
54	5744-13	Mount AngleLH	$9.41	Add to Cart
55	5744-12	Hook TiltUp Latch	$10.22	Add to Cart
56	5744-14	Mount AngleRH	$9.41	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F060	AN960516 Washer	$0.29	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F183	312x700x074 Washer	$0.58	Add to Cart
	F205	51618x14 Set Screw Knurl Point	$0.94	Add to Cart
	F218	716 Split Lock Washer	$0.34	Add to Cart
	F219	71614x114 Hex Bolt	$2.06	Add to Cart
	F236	1420x134 Hex Bolt	$0.84	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F256	716 SAE Washer	$0.50	Add to Cart
	F341	Coil Roll Pin 764x916	$0.34	Add to Cart
	F342	516 Conical Washer	$1.98	Add to Cart
	F344	3416 Slotted Hex Nut	$3.12	Add to Cart
	F347	34 SAE Washer	$1.18	Add to Cart
	F348	18x112 Cotter Pin	$0.18	Add to Cart
	F429	51618x12 SFH Screw	$0.94	Add to Cart
	F430	71620 ESNA Nut	$0.79	Add to Cart
	F442	1420x58 PTHMS	$0.31	Add to Cart
	F446	71620x312 Grd 8 Bolt	$4.87	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
