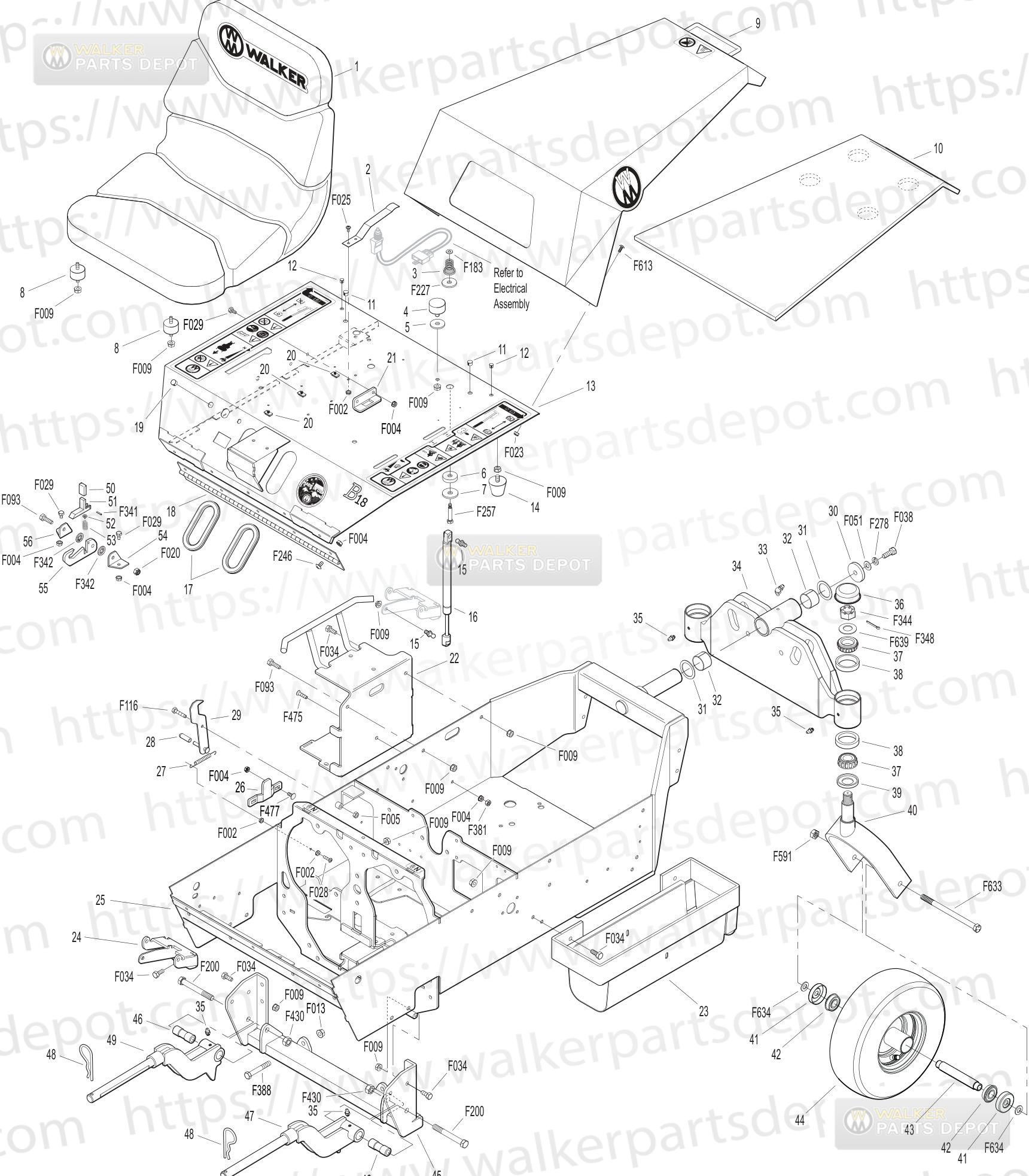

PARTS > MB MANUALS > 2020-03-31, 4000-31, Serial 157301-166214 > Body Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5103	NR Seat	$250.95	Add to Cart
2	2505	NR Leaf Spring	$11.76	Add to Cart
3	7223-4	Compression Spring	$4.12	Add to Cart
4	7845-1	Rubber Bumper 1375X750	$5.66	Add to Cart
5	5841	Retainer Washer 38x114	$1.42	Add to Cart
6	7434	Washer 38x114x14	$4.25	Add to Cart
7	5841-1	Retainer Washer	$1.51	Add to Cart
8	7440-5	Shock Mount 114x34	$8.21	Add to Cart
9	4105-5	NR Rear Body MB	$380.73	Add to Cart
10	4190-2	NR Insulation Foam Pad	$28.07	Add to Cart
11	5989-4	Dome Plug 38	$0.83	Add to Cart
12	5989-3	Dome Plug 516	$0.30	Add to Cart
13	4100-10	Front Body
14	5845	Rubber Bumper 150x125	$7.12	Add to Cart
15	5146	10mm Ball Stud	$3.77	Add to Cart
16	4145-2	Gas Spring Assembly	$17.31	Add to Cart
17	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
18	4504-3	Hinge 19	$31.94	Add to Cart
19	5989-5	Dome Plug 716	$1.04	Add to Cart
20	7834-3	Wire Saddle 3 Wires	$1.20	Add to Cart
21	4102-1	Body GuideUpper	$7.13	Add to Cart
22	4010-8	PrecleanerBattery Mount	$103.55	Add to Cart
23	4320-1	Gas Tank Mount
24	4215-10	Shock MountBody Lift Arm	$19.03	Add to Cart
25	4301-9	Chassis Frame
26	4102-2	Body GuideLower	$7.18	Add to Cart
27	7222	Extension Spring 14x3	$6.96	Add to Cart
28	7854	Plastic TipRed	$0.50	Add to Cart
29	7383-1	Body Latch Hook	$7.18	Add to Cart
30	4401-4	Washer 134x38x14Thk	$5.40	Add to Cart
31	4301-2	Fiberglide Thrust Washer	$11.22	Add to Cart
32	4301-3	Fiberglide Bearing	$12.44	Add to Cart
33	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
34	4301-1	Tail Wheel Pivot	$245.70	Add to Cart
35	5830	Grease Fitting 1428	$2.47	Add to Cart
36	8769-8	Dust Cap Deck Caster	$10.62	Add to Cart
37	8769-6	Bearing Cone 1ID	$11.86	Add to Cart
38	8769-5	Bearing Cup 2x158	$7.52	Add to Cart
39	8769-7	Seal	$5.66	Add to Cart
40	8765-11	SU8765 14 Caster Wheel Fork	$59.13	Add to Cart
41	8769-13	Bearing Cup 716 ID	$6.80	Add to Cart
42	5037-1	Bearing Tail Wheel	$7.12	Add to Cart
43	5038-3	Axle Spacer Tube 4995 4375 ID	$15.74	Add to Cart
44	8768-10	Caster WheelPneu 11x45 PRBB	$148.05	Add to Cart
	8768-8	Tire Pneumatic 11x45 6PLY	$53.81	Add to Cart
45	4301-10	Deck Arm Support Mount	$173.15	Add to Cart
46	6840-2	NR Support Arm Bushing 2 1 16	$12.21	Add to Cart
47	4431-1	NR Deck Support ArmLH	$79.63	Add to Cart
48	5775-2	Hitch Pin 6	$3.24	Add to Cart
49	4430-1	NR Deck Support ArmRH	$81.94	Add to Cart
50	5847	Plastic Tip	$0.65	Add to Cart
51	5744-20	Spring Arm TiltUp Latch	$12.43	Add to Cart
52	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
53	5744-15	Compression Spg 38x58	$2.26	Add to Cart
54	5744-13	Mount AngleLH	$9.41	Add to Cart
55	5744-12	Hook TiltUp Latch	$10.22	Add to Cart
56	5744-14	Mount AngleRH	$9.41	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F023	1024 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F116	1420x114 Hex Bolt	$0.65	Add to Cart
	F183	312x700x074 Washer	$0.58	Add to Cart
	F200	71620x3 Grade 8 Bolt	$4.06	Add to Cart
	F227	38x114x18 Plastic Shoulder Washer	$8.10	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F257	3816 x11116 Shoulder Bolt	$2.51	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F341	Coil Roll Pin 764x916	$0.34	Add to Cart
	F342	516 Conical Washer	$1.98	Add to Cart
	F344	3416 Slotted Hex Nut	$3.12	Add to Cart
	F348	18x112 Cotter Pin	$0.18	Add to Cart
	F381	1420 Hex Nut	$0.18	Add to Cart
	F388	3816x212 Hex Bolt	$2.26	Add to Cart
	F430	71620 ESNA Nut	$0.79	Add to Cart
	F475	1420x1 PFH Screw	$0.34	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
	F591	71614 Flange Top Lock Nut	$1.43	Add to Cart
	F613	102412 Truss Head Torx	$1.22	Add to Cart
	F633	71614x612 Hex Bolt	$8.08	Add to Cart
	F634	Washer 835x438x080	$1.88	Add to Cart
	F639	Belleville Washer15x755x 072	$4.19	Add to Cart
