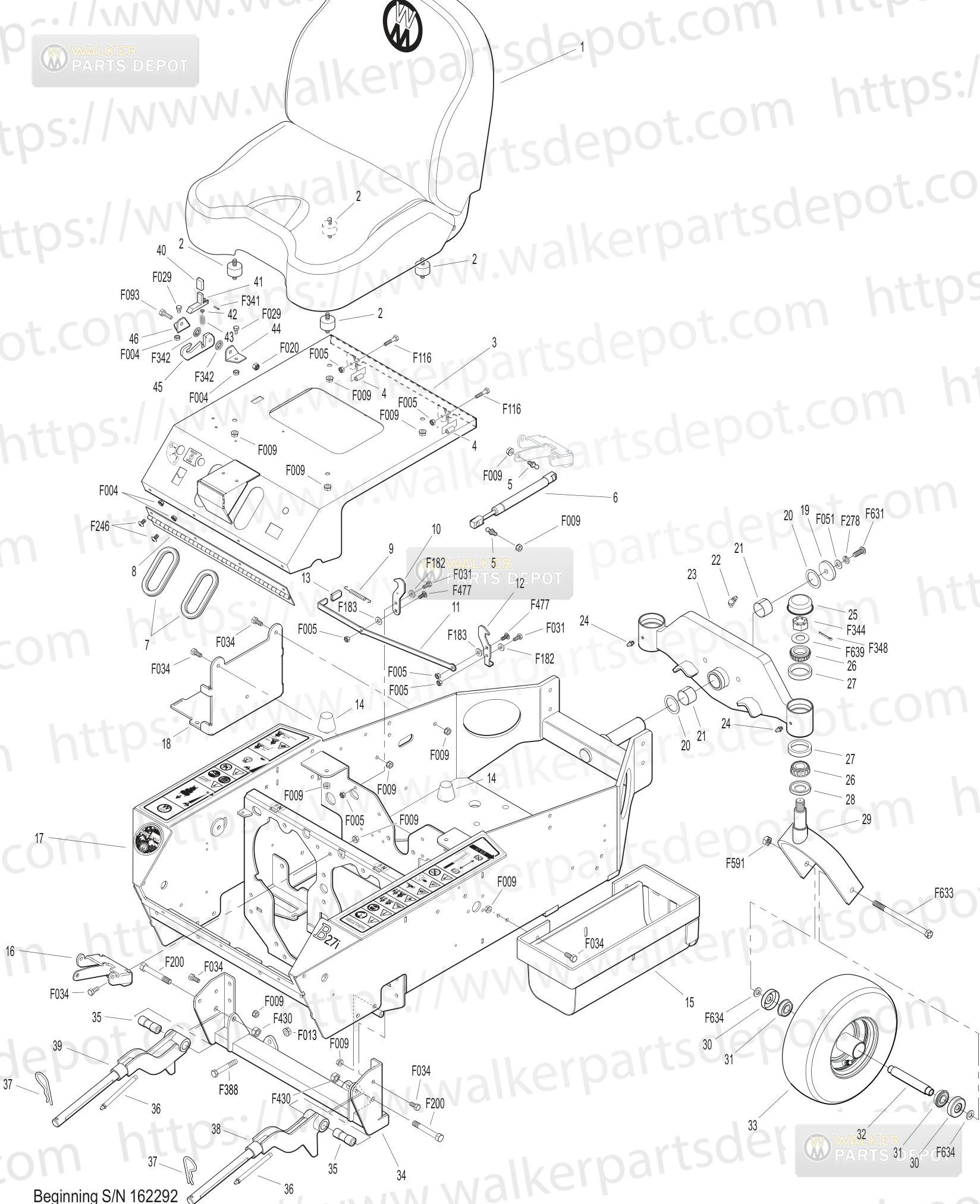

PARTS > MB MANUALS > 2020-04-23, 4000-27, Serial 162292-165083 > Body Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	6104-31	Comfort Seat 2017	$425.46	Add to Cart
2	7440-5	Shock Mount 114x34	$8.21	Add to Cart
3	4100-9	Front BodyMB27i	$372.75	Add to Cart
4	4100-7	Spacer (1/4 x 3/8 x 3/4)
5	5146	10mm Ball Stud	$3.77	Add to Cart
6	4145-2	Gas Spring Assembly	$17.31	Add to Cart
7	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
8	4504-2	Hinge 17	$37.97	Add to Cart
9	7222	Extension Spring 14x3	$6.96	Add to Cart
10	7383-10	Body Latch Hook, RH
11	7383-9	Body Latch Trigger	$12.72	Add to Cart
12	7383-11	Body Latch Hook, LH
13	5854	Plastic Tip	$1.98	Add to Cart
14	5845	Rubber Bumper 150x125	$7.12	Add to Cart
15	2046-1	Gas Tank MountLH	$131.78	Add to Cart
16	4215-10	Shock MountBody Lift Arm	$19.03	Add to Cart
17	4305	Chassis FrameMB27i	$1,431.00	Add to Cart
18	4910-7	Battery Mount MB27i	$58.50	Add to Cart
19	4401-4	Washer 134x38x14Thk	$5.40	Add to Cart
20	4301-2	Fiberglide Thrust Washer	$11.22	Add to Cart
21	4301-3	Fiberglide Bearing	$12.44	Add to Cart
22	5830-4	Grease Fitting 90 Deg	$4.32	Add to Cart
23	4301-12	Tail Wheel Pivot 17938 Center to Center	$381.15	Add to Cart
24	5830	Grease Fitting 1428	$2.47	Add to Cart
25	8769-8	Dust Cap Deck Caster	$10.62	Add to Cart
26	8769-6	Bearing Cone 1ID	$11.86	Add to Cart
27	8769-5	Bearing Cup 2x158	$7.52	Add to Cart
28	8769-7	Seal	$5.66	Add to Cart
29	8765-11	SU8765 14 Caster Wheel Fork	$59.13	Add to Cart
30	8769-13	Bearing Cup 716 ID	$6.80	Add to Cart
31	5037-1	Bearing Tail Wheel	$7.12	Add to Cart
32	5038-3	Axle Spacer Tube 4995 4375 ID	$15.74	Add to Cart
33	8768-10	Caster WheelPneu 11x45 PRBB	$148.05	Add to Cart
	8768-8	Tire Pneumatic 11x45 6PLY	$53.81	Add to Cart
34	4301-11	Deck Arm Support
35	6840-2	NR Support Arm Bushing 2 1 16	$12.21	Add to Cart
36	5830-1	51624 4 Grease Fitting	$8.03	Add to Cart
37	5775-2	Hitch Pin 6	$3.24	Add to Cart
38	4431-2	Deck Support ArmLH	$97.44	Add to Cart
39	4430-2	Deck Support ArmRH	$100.17	Add to Cart
40	5847	Plastic Tip	$0.65	Add to Cart
41	5744-20	Spring Arm TiltUp Latch	$12.43	Add to Cart
42	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
43	5744-15	Compression Spg 38x58	$2.26	Add to Cart
44	5744-13	Mount AngleLH	$9.41	Add to Cart
45	5744-12	Hook TiltUp Latch	$10.22	Add to Cart
46	5744-14	Mount AngleRH	$9.41	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F116	1420x114 Hex Bolt	$0.65	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F183	312x700x074 Washer	$0.58	Add to Cart
	F200	71620x3 Grade 8 Bolt	$4.06	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F341	Coil Roll Pin 764x916	$0.34	Add to Cart
	F342	516 Conical Washer	$1.98	Add to Cart
	F344	3416 Slotted Hex Nut	$3.12	Add to Cart
	F348	18x112 Cotter Pin	$0.18	Add to Cart
	F388	3816x212 Hex Bolt	$2.26	Add to Cart
	F430	71620 ESNA Nut	$0.79	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
	F591	71614 Flange Top Lock Nut	$1.43	Add to Cart
	F631	3816x1 Button Head Cap Screw	$3.98	Add to Cart
	F633	71614x612 Hex Bolt	$8.08	Add to Cart
	F634	Washer 835x438x080	$1.88	Add to Cart
	F639	Belleville Washer15x755x 072	$4.19	Add to Cart
