Part Lookup Tool

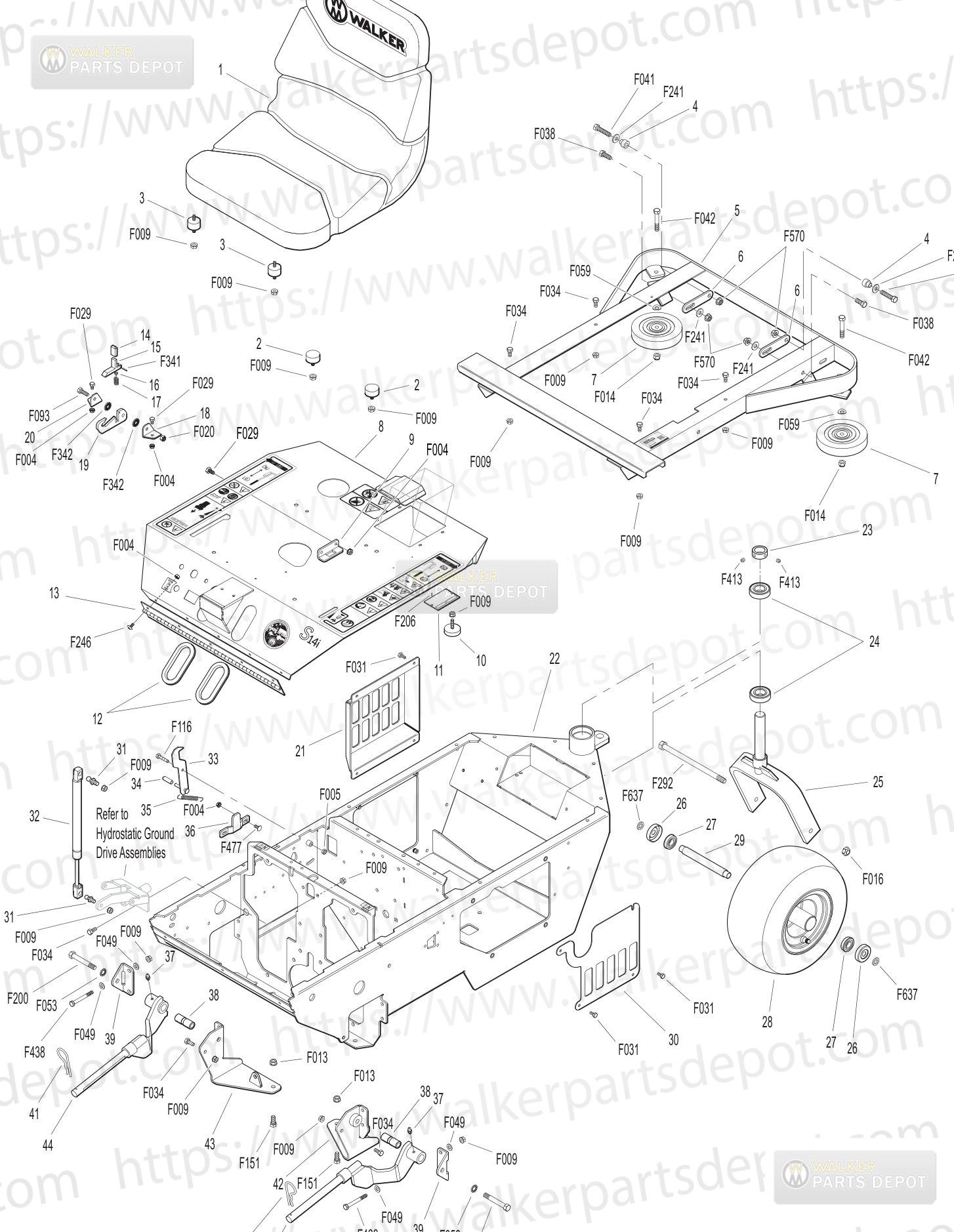

PARTS > MS MANUALS > 2021-10-08, 5000-64, Serial 165757-AND ON > Body Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5103-3	Seat WSwitch	$252.00	Add to Cart
2	7845-1	Rubber Bumper 1375X750	$5.66	Add to Cart
3	7440-5	Shock Mount 114x34	$8.21	Add to Cart
4	7516-5	Catcher Pivot Bushing	$11.63	Add to Cart
5	5517-11	Rear Bumper
6	7517-3	Catcher Pivot Plate
7	5162	Roller Wheel 5 Rubber	$13.40	Add to Cart
8	5100-22	Welded Body MS14i	$490.14	Add to Cart
9	4102-1	Body GuideUpper	$7.13	Add to Cart
10	7844	Rubber Bumper 125x250	$4.06	Add to Cart
11	NS	Body ID Plate
12	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
13	4504-3	Hinge 19	$31.94	Add to Cart
14	5847	Plastic Tip	$0.65	Add to Cart
15	5744-20	Spring Arm TiltUp Latch	$12.43	Add to Cart
16	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
17	5744-15	Compression Spg 38x58	$2.26	Add to Cart
18	5744-13	Mount AngleLH	$9.41	Add to Cart
19	5744-12	Hook TiltUp Latch	$10.22	Add to Cart
20	5744-14	Mount AngleRH	$9.41	Add to Cart
21	5300-14	NR Chassis Side Cover RH MS14i	$58.46	Add to Cart
22	5300-18	Chassis Frame
23	5267-1	Retainer Collar 1	$13.52	Add to Cart
24	5270-1	Ball Bearing	$9.20	Add to Cart
25	5420-2	Tail Wheel Fork	$84.92	Add to Cart
26	8769-12	Bearing Cup 12 ID	$6.71	Add to Cart
27	5037-1	Bearing Tail Wheel	$7.12	Add to Cart
28	5035	Tail Wheel Tire Assy 13x6506	$102.27	Add to Cart
	5035-1	NR Tail Whl Tire 13x6506	$122.96	Add to Cart
	5036	Tail Wheel Hub 6x45	$84.63	Add to Cart
29	5038-1	Axle Spacer Tube 658	$17.85	Add to Cart
30	5300-15	Chassis Side Cover, LH
31	5146	10mm Ball Stud	$3.77	Add to Cart
32	5145-4	Gas Spring Assembly	$16.79	Add to Cart
33	7383-1	Body Latch Hook	$7.18	Add to Cart
34	7854	Plastic TipRed	$0.50	Add to Cart
35	7222	Extension Spring 14x3	$6.96	Add to Cart
36	4102-2	Body GuideLower	$7.18	Add to Cart
37	5830	Grease Fitting 1428	$2.47	Add to Cart
38	6840-1	Support Arm Bushing 2116	$17.60	Add to Cart
39	6431-5	Deck Arm Mount
40	6431-9	Deck Arm Support LH	$54.85	Add to Cart
41	5775-2	Hitch Pin 6	$3.24	Add to Cart
42	5303-5	Deck Arm Hydro MountLHMS	$32.56	Add to Cart
43	5303-6	Deck Arm Hydro MountRHMS	$32.56	Add to Cart
44	6431-8	Deck Arm Support RH	$54.85	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F016	1213 SelfLocking Nut	$1.51	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F041	3816x134 Hex Bolt	$1.87	Add to Cart
	F042	3816x214 Hex Bolt	$1.97	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F053	716 Int Star Lock Wshr	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F116	1420x114 Hex Bolt	$0.65	Add to Cart
	F151	3816x78 Hex Bolt	$1.18	Add to Cart
	F200	71620x3 Grade 8 Bolt	$4.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F241	375x875x10 Washer	$0.79	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F292	1213x812 Hex BoltGR5	$5.76	Add to Cart
	F341	Coil Roll Pin 764x916	$0.34	Add to Cart
	F342	516 Conical Washer	$1.98	Add to Cart
	F413	51624x516 Set Screw	$0.58	Add to Cart
	F438	51618x234 Hex Bolt	$0.50	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
	F570	3816 Flange Top Lock Nut	$1.22	Add to Cart
	F637	Washer 835x505x125	$2.83	Add to Cart
