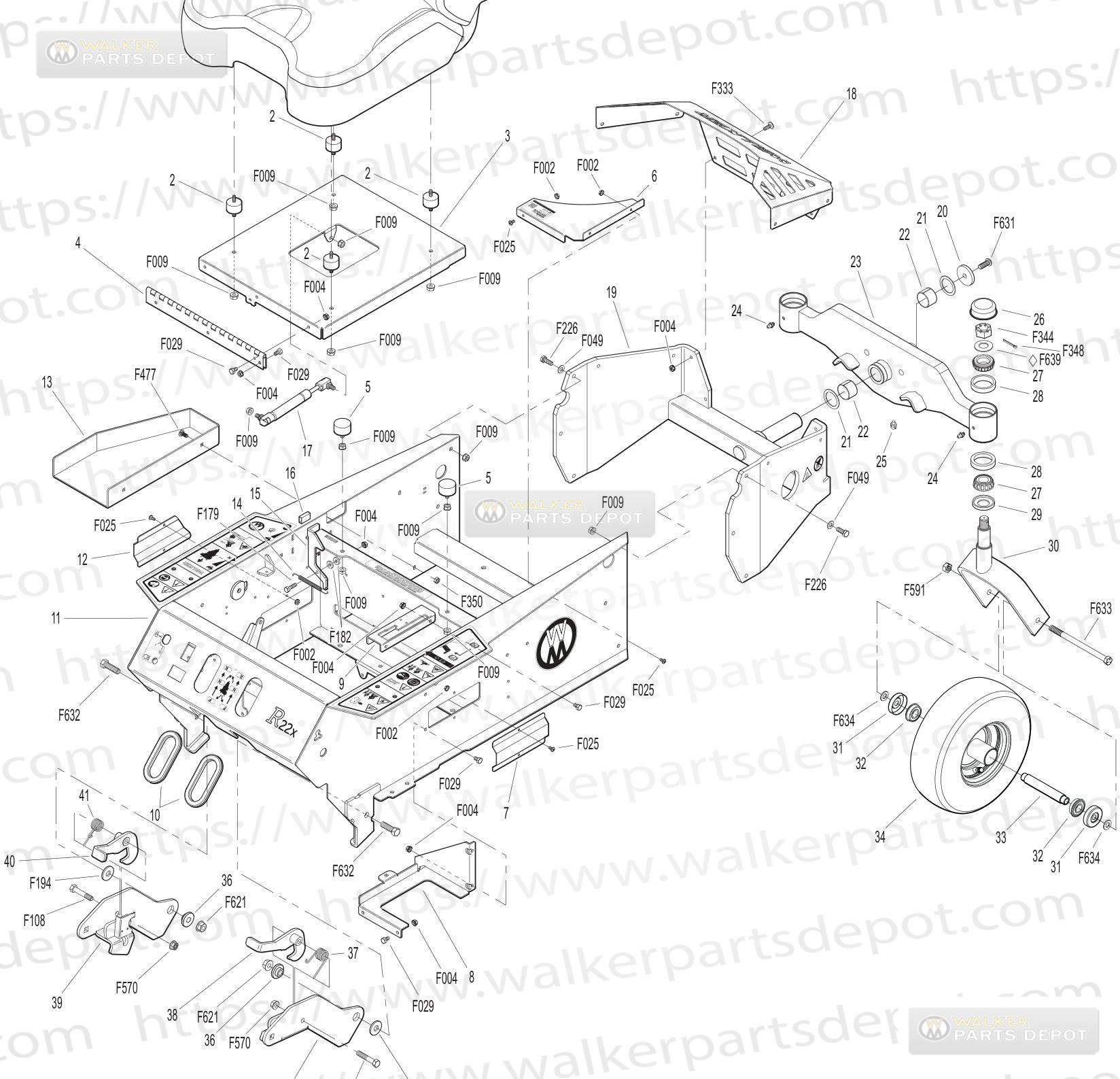

PARTS > MR MANUALS > 2025-07-16, 1000-11, Serial 193996-AND ON > Body Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	6104-31	Comfort Seat 2017	$425.46	Add to Cart
2	7440-5	Shock Mount 114x34	$8.21	Add to Cart
3	5103-11	Seat Pan	$89.50	Add to Cart
4	4504-1	Hinge 1312	$21.22	Add to Cart
5	7845-1	Rubber Bumper 1375X750	$5.66	Add to Cart
6	1300-10	Solenoid Guard
7	1301-5	Hydro Fan Cover, LH
8	1910-3	Battery Mount Plate	$28.78	Add to Cart
9	1406-1	Parking Brake Bracket
10	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
11	1301	Chassis Frame
12	1301-6	Hydro Fan Cover, RH
13	1046	Gas Tank Mount
14	7222	Extension Spring 14x3	$6.96	Add to Cart
15	1383-1	Seat Latch MR21 SN 166435 On	$11.07	Add to Cart
16	5847	Plastic Tip	$0.65	Add to Cart
17	5145-4	Gas Spring Assembly	$16.79	Add to Cart
18	1013-7	Muffler Guard
19	1301-1	NR Rear Chassis	$399.21	Add to Cart
20	4401-4	Washer 134x38x14Thk	$5.40	Add to Cart
21	4301-2	Fiberglide Thrust Washer	$11.22	Add to Cart
22	4301-3	Fiberglide Bearing	$12.44	Add to Cart
23	4301-14	Tail Wheel Pivot Axle 21938 Center to Center	$391.23	Add to Cart
24	5830	Grease Fitting 1428	$2.47	Add to Cart
25	5830-4	Grease Fitting 90 Deg	$4.32	Add to Cart
26	8769-8	Dust Cap Deck Caster	$10.62	Add to Cart
27	8769-6	Bearing Cone 1ID	$11.86	Add to Cart
28	8769-5	Bearing Cup 2x158	$7.52	Add to Cart
29	8769-7	Seal	$5.66	Add to Cart
30	8765-16	Caster Wheel Fork 1 Longer	$64.70	Add to Cart
31	8769-13	Bearing Cup 716 ID	$6.80	Add to Cart
32	5037-1	Bearing Tail Wheel	$7.12	Add to Cart
33	5038-3	Axle Spacer Tube 4995 4375 ID	$15.74	Add to Cart
34	8768-10	Caster WheelPneu 11x45 PRBB	$148.05	Add to Cart
	8768-8	Tire Pneumatic 11x45 6PLY	$53.81	Add to Cart
35	1431-7	Deck Support Arm, LH
36	5840-3	Bushing	$15.19	Add to Cart
37	7364-5	Torsion SpringLH	$9.30	Add to Cart
38	1431-3	Deck Arm LatchLH	$22.84	Add to Cart
39	1431-8	Deck Support Arm, RH
40	1431-4	Deck Arm LatchRH	$34.23	Add to Cart
41	7364-4	Torsion SpringRH	$9.30	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F108	3816x2 Hex Bolt	$1.42	Add to Cart
	F179	1420x1 Hex Bolt	$0.65	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F194	716x114x18 Washer	$1.75	Add to Cart
	F226	51618x78 Hex Bolt	$0.78	Add to Cart
	F333	1420x34 PTHMS	$0.22	Add to Cart
	F344	3416 Slotted Hex Nut	$3.12	Add to Cart
	F348	18x112 Cotter Pin	$0.18	Add to Cart
	F350	1420 LP Nylock	$0.65	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
	F570	3816 Flange Top Lock Nut	$1.22	Add to Cart
	F591	71614 Flange Top Lock Nut	$1.43	Add to Cart
	F621	71620 Flange Top Lock Nut	$3.32	Add to Cart
	F631	3816x1 Button Head Cap Screw	$3.98	Add to Cart
	F632	71620x112 Hex Bolt	$2.57	Add to Cart
	F633	71614x612 Hex Bolt	$8.08	Add to Cart
	F634	Washer 835x438x080	$1.88	Add to Cart
	F639	Belleville Washer15x755x 072	$4.19	Add to Cart
