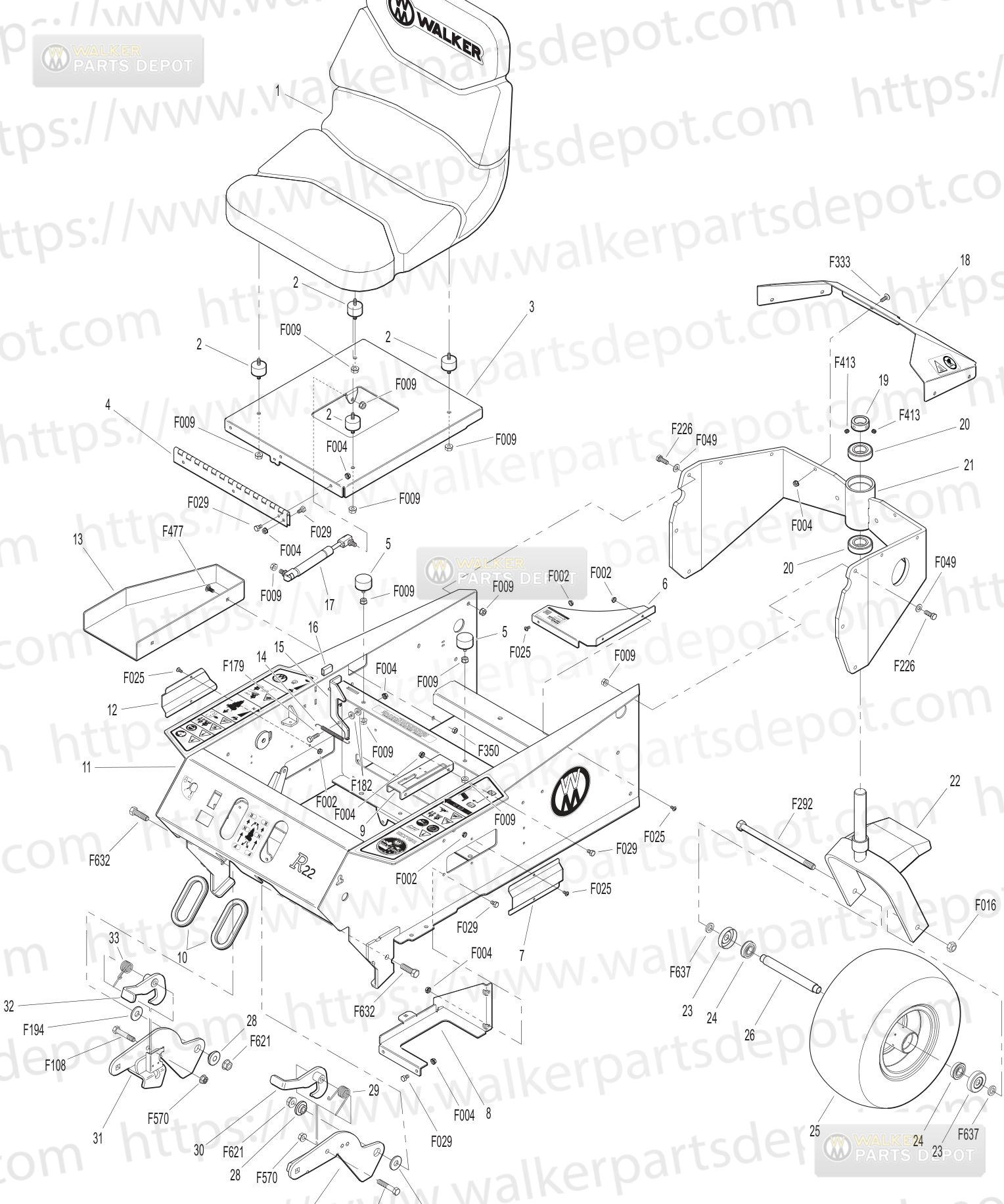

PARTS > MR MANUALS > 2025-07-24, 1000-13, Serial 190920-AND ON > Body Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5103-3	Seat WSwitch	$252.00	Add to Cart
2	7440-5	Shock Mount 114x34	$8.21	Add to Cart
3	5103-11	Seat Pan	$89.50	Add to Cart
4	4504-1	Hinge 1312	$21.22	Add to Cart
5	7845-1	Rubber Bumper 1375X750	$5.66	Add to Cart
6	1300-10	Solenoid Guard
7	1300-5	Hydro Fan Cover, LH
8	1910-3	Battery Mount Plate	$28.78	Add to Cart
9	1406-1	Parking Brake Bracket
10	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
11	1300-1	NR Chassis Frame MR21	$834.75	Add to Cart
12	1300-2	Hydro Fan Cover, RH
13	1046	Gas Tank Mount
14	7222	Extension Spring 14x3	$6.96	Add to Cart
15	1383-1	Seat Latch MR21 SN 166435 On	$11.07	Add to Cart
16	5847	Plastic Tip	$0.65	Add to Cart
17	5145-4	Gas Spring Assembly	$16.79	Add to Cart
18	1013-4	Muffler GuardMR21	$52.71	Add to Cart
19	5267-1	Retainer Collar 1	$13.52	Add to Cart
20	5270-1	Ball Bearing	$9.20	Add to Cart
21	1300-45	Rear Chassis	$286.65	Add to Cart
22	5420-3	Tail Wheel Fork	$86.52	Add to Cart
23	8769-12	Bearing Cup 12 ID	$6.71	Add to Cart
24	5037-1	Bearing Tail Wheel	$7.12	Add to Cart
25	5035	Tail Wheel Tire Assy 13x6506	$102.27	Add to Cart
	5035-1	NR Tail Whl Tire 13x6506	$122.96	Add to Cart
	5036	Tail Wheel Hub 6x45	$84.63	Add to Cart
26	5038-1	Axle Spacer Tube 658	$17.85	Add to Cart
27	1431-1	Deck Support ArmLH	$51.00	Add to Cart
28	5840-3	Bushing	$15.19	Add to Cart
29	7364-5	Torsion SpringLH	$9.30	Add to Cart
30	1431-3	Deck Arm LatchLH	$22.84	Add to Cart
31	1431-6	Deck Support ArmRH	$42.86	Add to Cart
32	1431-4	Deck Arm LatchRH	$34.23	Add to Cart
33	7364-4	Torsion SpringRH	$9.30	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F016	1213 SelfLocking Nut	$1.51	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F108	3816x2 Hex Bolt	$1.42	Add to Cart
	F179	1420x1 Hex Bolt	$0.65	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F194	716x114x18 Washer	$1.75	Add to Cart
	F226	51618x78 Hex Bolt	$0.78	Add to Cart
	F292	1213x812 Hex BoltGR5	$5.76	Add to Cart
	F333	1420x34 PTHMS	$0.22	Add to Cart
	F350	1420 LP Nylock	$0.65	Add to Cart
	F413	51624x516 Set Screw	$0.58	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
	F570	3816 Flange Top Lock Nut	$1.22	Add to Cart
	F621	71620 Flange Top Lock Nut	$3.32	Add to Cart
	F632	71620x112 Hex Bolt	$2.57	Add to Cart
	F637	Washer 835x505x125	$2.83	Add to Cart
