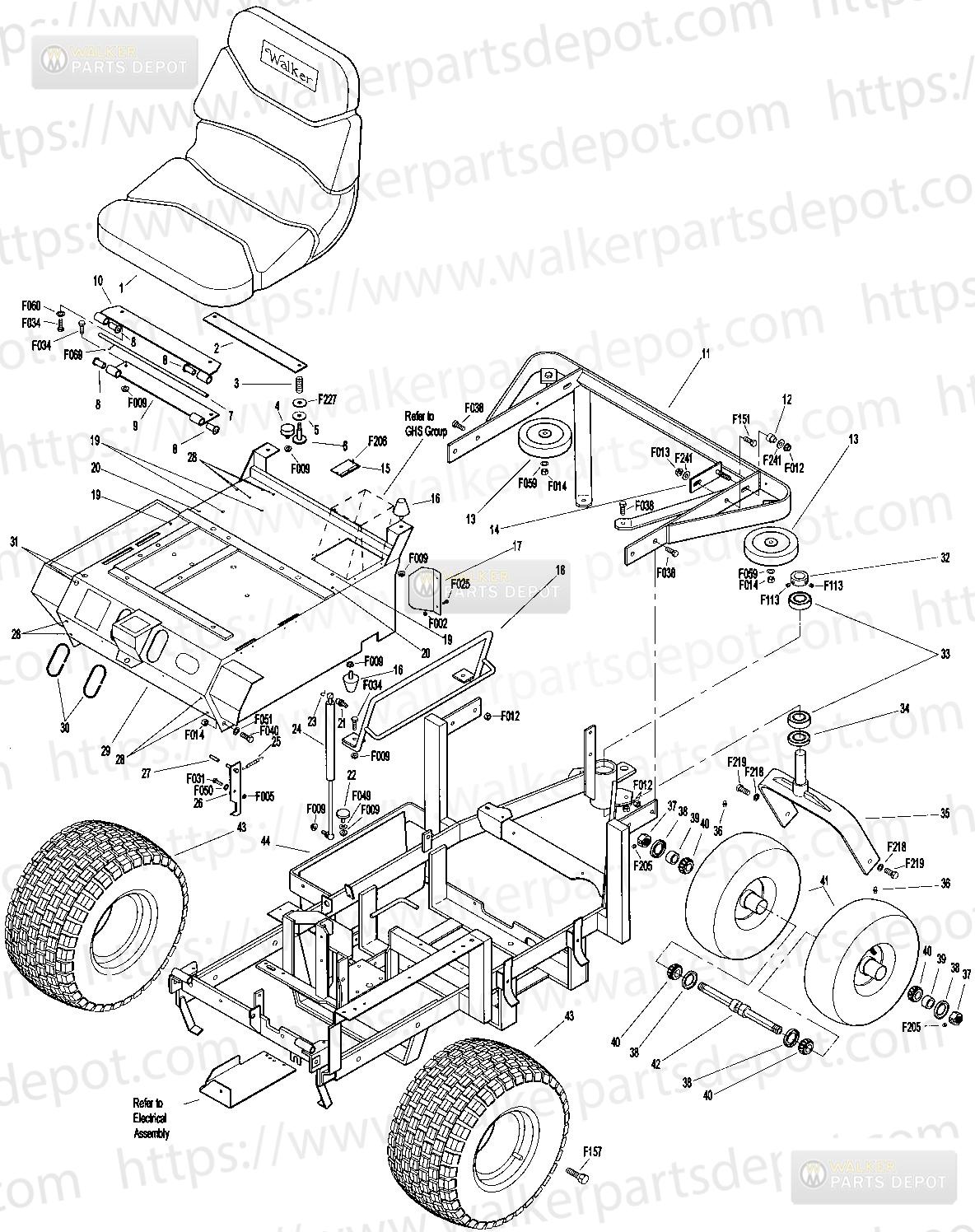

PARTS > MT MANUALS > 1997-05-22, 8000-2, Serial 21329-37479 > Body Chassis Assembly (GHS Models):

Diagram #	Part #	Description	Price	Add to Cart
1	5103	NR Seat	$250.95	Add to Cart
2	7203	Seat Spring Plate
3	7223	Compression Spring (1/2 x 1)
4	7845	Rubber Bumper 1375X63	$4.80	Add to Cart
5	7846	Washer 38x114x18	$8.06	Add to Cart
6	7204	Shoulder Bolt Seat Mount	$7.07	Add to Cart
7	7205-5	Pivot Pin
8	5103-2	Pivot Bushing 516ID	$4.56	Add to Cart
9	7205-1	Lower Plate, SeatHinge
10	7205-2	Upper Plate, SeatHinge
	7205	SeatHinge Assembly (Includes Items# 7, 8, 9,10&F069)
11	7516	NRGHS Rear Bumper TEFI	$281.61	Add to Cart
12	7516-5	Catcher Pivot Bushing	$11.63	Add to Cart
13	5162	Roller Wheel 5 Rubber	$13.40	Add to Cart
14	7517-2	Catcher Pivot Plate	$7.80	Add to Cart
15	NS	Body ID Plate
16	5845	Rubber Bumper 150x125	$7.12	Add to Cart
17	8118	Heat Deflector	$7.42	Add to Cart
18	7422	Panel Guard	$29.19	Add to Cart
19	5989-4	Dome Plug 38	$0.83	Add to Cart
20	5989-3	Dome Plug 516	$0.30	Add to Cart
21	7146	13mm Ball Stud	$4.92	Add to Cart
22	7844	Rubber Bumper 125x250	$4.06	Add to Cart
23	7147	Spring Clip	$1.44	Add to Cart
24	7145	Gas Spring Assembly	$39.60	Add to Cart
25	7222	Extension Spring 14x3	$6.96	Add to Cart
26	7383-1	Body Latch Hook	$7.18	Add to Cart
27	7854	Plastic TipRed	$0.50	Add to Cart
28	5989-9	Dome Plug 14	$0.50	Add to Cart
29	8100	Front BodyT	$778.47	Add to Cart
30	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
31	5989-5	Dome Plug 716	$1.04	Add to Cart
32	5267-1	Retainer Collar 1	$13.52	Add to Cart
33	5270-1	Ball Bearing	$9.20	Add to Cart
34	5842-1	Washer 10IDx1350OD	$6.30	Add to Cart
35	7420	Tail Wheel Fork	$137.03	Add to Cart
36	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
37	8039	Nut Tail Wheel Axle	$6.91	Add to Cart
38	8037-1	Seal- Outer (1-3/4x1-1/8)	$7.16	Add to Cart
39	8038-1	Spacer Wheel Axle 750xIDx1125OD	$12.61	Add to Cart
40	8037	Bearing Cone 34ID	$12.09	Add to Cart
41	8035	Tail Whl& Tire(13x5.00-6) (W/Bearing Race)	$75.08	Add to Cart
	7035-1	Tail Whl Tire 13x5006	$63.00	Add to Cart
	8036	Tail Wheel Hub 6x325 WRace	$60.14	Add to Cart
	8037-2	Bearing Race	$13.55	Add to Cart
42	8038	Tail Whl Axle34x1038	$62.85	Add to Cart
43	7070	Wheel Tire 18x9 50 8	$178.83	Add to Cart
	7070-1	Drive Tire 18x9 50 8	$142.54	Add to Cart
	5070-4	Wide Wheel 8x7	$124.53	Add to Cart
44	8300	NR Chassis FrameT	$796.95	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F060	AN960516 Washer	$0.29	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F113	51618x516 Set Screw	$0.43	Add to Cart
	F151	3816x78 Hex Bolt	$1.18	Add to Cart
	F157	1220x114 Whl Lug Bolt	$5.06	Add to Cart
	F205	51618x14 Set Screw Knurl Point	$0.94	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F218	716 Split Lock Washer	$0.34	Add to Cart
	F219	71614x114 Hex Bolt	$2.06	Add to Cart
	F227	38x114x18 Plastic Shoulder Washer	$8.10	Add to Cart
	F241	375x875x10 Washer	$0.79	Add to Cart
