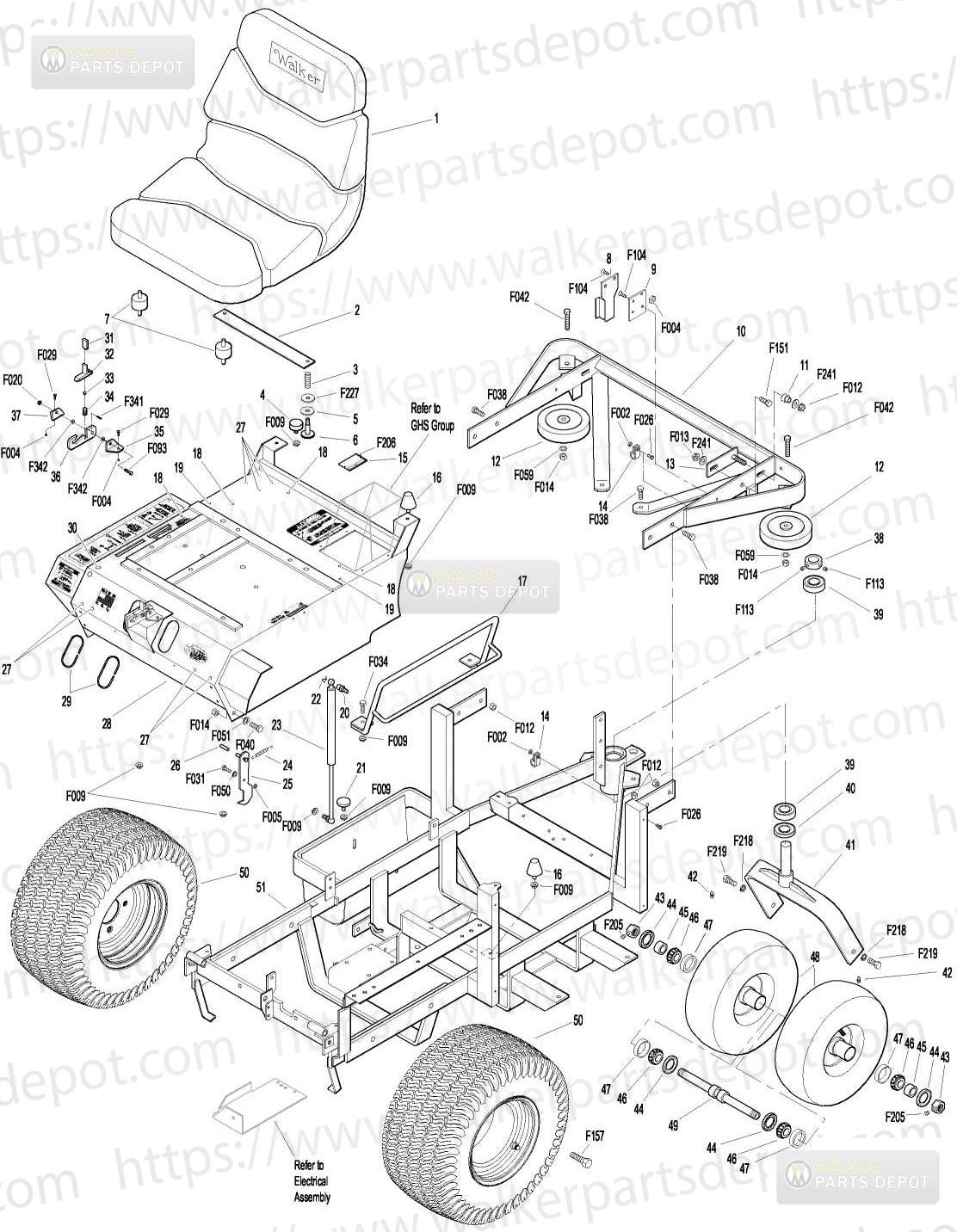

PARTS > MD MANUALS > 2003-05-12, 7000-5, Serial 60192-72867 > Body and Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5103	(NR) Seat	$240.48	Add to Cart
2	7203	Seat Spring Plate
3	7223	Compression Spring (1/2 x 1)
4	7845	Rubber Bumper (1.375X.63)	$4.80	Add to Cart
5	7846	Washer (3/8x1-1/4x1/8)	$8.06	Add to Cart
6	7204	Shoulder Bolt Seat Mount	$7.07	Add to Cart
7	7440-5	Shock Mount (1-1/4x3/4)	$8.21	Add to Cart
8	NS	Recovery Tank Mount (19449-72502 Kubota)
9	7047-5	Mount Plate	$11.42	Add to Cart
10	7516-7	(NR) GHS Rear Bumper D/MTL	$218.48	Add to Cart
11	7516-5	Catcher Pivot Bushing	$11.63	Add to Cart
12	5162	"Roller Wheel (5"" Rubber)"	$13.40	Add to Cart
13	7517-2	Catcher Pivot Plate	$7.80	Add to Cart
14	5832	Cable Clamp (1/2) .203 Hole	$1.87	Add to Cart
15	NS	Body ID Plate
16	5845	Rubber Bumper (1.50x1.25)	$7.12	Add to Cart
17	7422	Panel Guard	$29.19	Add to Cart
18	5989-4	Dome Plug (3/8)	$0.30	Add to Cart
19	5989-3	Dome Plug (5/16)	$0.30	Add to Cart
20	7146	13mm Ball Stud	$4.92	Add to Cart
21	7844	Rubber Bumper (1.25x.250)	$4.06	Add to Cart
22	7147	Spring Clip	$1.44	Add to Cart
23	7145	Gas Spring Assembly	$39.60	Add to Cart
24	7222	Extension Spring (1/4x3)	$6.96	Add to Cart
25	7383-1	Body Latch Hook	$7.18	Add to Cart
26	7854	Plastic Tip/Red	$0.50	Add to Cart
27	5989-9	Dome Plug (1/4)	$0.50	Add to Cart
28	7100	Front Body/D	$607.05	Add to Cart
29	5180	Edge Molding/Lvr Opening	$3.43	Add to Cart
30	5989-5	Dome Plug (7/16)	$1.04	Add to Cart
31	5847	Plastic Tip	$0.65	Add to Cart
32	5744-20	Spring Arm Tilt-Up Latch	$12.43	Add to Cart
33	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
34	5744-15	Compression Spg (3/8x5/8)	$2.26	Add to Cart
35	5744-13	Mount Angle/LH	$9.41	Add to Cart
36	5744-12	Hook Tilt-Up Latch	$10.22	Add to Cart
37	5744-14	Mount Angle/RH	$9.41	Add to Cart
38	5267-1	"Retainer Collar (1"")"	$13.52	Add to Cart
39	5270-1	Ball Bearing	$9.20	Add to Cart
40	5842-1	Washer (1.0IDx1.350OD)	$6.30	Add to Cart
41	7420	Tail Wheel Fork	$137.00	Add to Cart
42	5830-3	Grease Fitting (45 Deg.)	$4.04	Add to Cart
43	8039	Nut Tail Wheel Axle	$6.91	Add to Cart
44	8037-1	Seal- Outer (1-3/4x1-1/8)	$7.16	Add to Cart
45	8038-1	Spacer Wheel Axle (.750xIDx1.125OD)	$12.61	Add to Cart
46	8037	Bearing Cone (3/4ID)	$12.09	Add to Cart
47	8037-2	Bearing Race	$13.55	Add to Cart
48	8035	Tail Whl& Tire(13x5.00-6) (W/Bearing Race)	$75.08	Add to Cart
	7035-1	Tail Whl Tire (13x5.00-6)	$63.00	Add to Cart
	8036	Tail Wheel & Hub (6x3.25) W/Race	$60.14	Add to Cart
49	8038	Tail Whl Axle(3/4x10-3/8)	$62.85	Add to Cart
50	7070	Wheel Tire 18x9 50 8	$178.83	Add to Cart
	7070-1	Drive Tire 18x9 50 8	$142.54	Add to Cart
	5070-4	Wide Wheel (8x7)	$124.48	Add to Cart
51	7300-5	Chassis Frame D/5.0 Tank	$908.73	Add to Cart
	F002	10-24 Keps Nut	$0.18	Add to Cart
	F004	1/4-20 Keps Nut	$0.34	Add to Cart
	F005	1/4-20 ESNA Nut	$0.34	Add to Cart
	F009	5/16-18 Whiz Locknut	$0.50	Add to Cart
	F012	3/8-16 Keps Nut	$0.79	Add to Cart
	F013	3/8-16 Whiz Locknut	$0.65	Add to Cart
	F014	3/8-16 ESNA Nut	$0.65	Add to Cart
	F020	5/16-18 ESNA Nut	$0.34	Add to Cart
	F026	10-24x1/2 PPHMS	$0.18	Add to Cart
	F029	1/4-20x1/2 Hex Bolt	$0.50	Add to Cart
	F031	1/4-20x5/8 Hex Bolt	$0.50	Add to Cart
	F034	5/16-18x3/4 Hex Bolt	$0.79	Add to Cart
	F038	3/8-16x1 Hex Bolt	$1.06	Add to Cart
	F040	3/8-16x1-1/2 Hex Bolt	$1.54	Add to Cart
	F042	3/8-16x2-1/4 Hex Bolt	$1.97	Add to Cart
	F050	1/4 SAE Washer	$0.18	Add to Cart
	F051	3/8 SAE Washer	$0.65	Add to Cart
	F059	3/8 Wave Spring Washer	$1.32	Add to Cart
	F093	5/16-18x1 Hex Bolt	$0.94	Add to Cart
	F104	1/4-20x3/4 PFH Bolt	$0.22	Add to Cart
	F113	5/16-18x5/16 Set Screw	$0.43	Add to Cart
	F151	3/8-16x7/8 Hex Bolt	$1.18	Add to Cart
	F157	1/2-20x1-1/4 Whl Lug Bolt	$5.06	Add to Cart
	F205	5/16-18x1/4 Set Screw (Knurl Point)	$0.94	Add to Cart
	F206	#2x3/16 Drive Pin	$0.18	Add to Cart
	F218	7/16 Split Lock Washer	$0.34	Add to Cart
	F219	7/16-14x1-1/4 Hex Bolt	$2.06	Add to Cart
	F227	3/8x1-1/4x1/8 Plastic Shoulder Washer	$8.10	Add to Cart
	F241	.375x.875x.10 Washer	$0.79	Add to Cart
	F341	Coil Roll Pin (7/64x9/16)	$0.34	Add to Cart
	F342	5/16 Conical Washer	$1.98	Add to Cart
