Part Lookup Tool

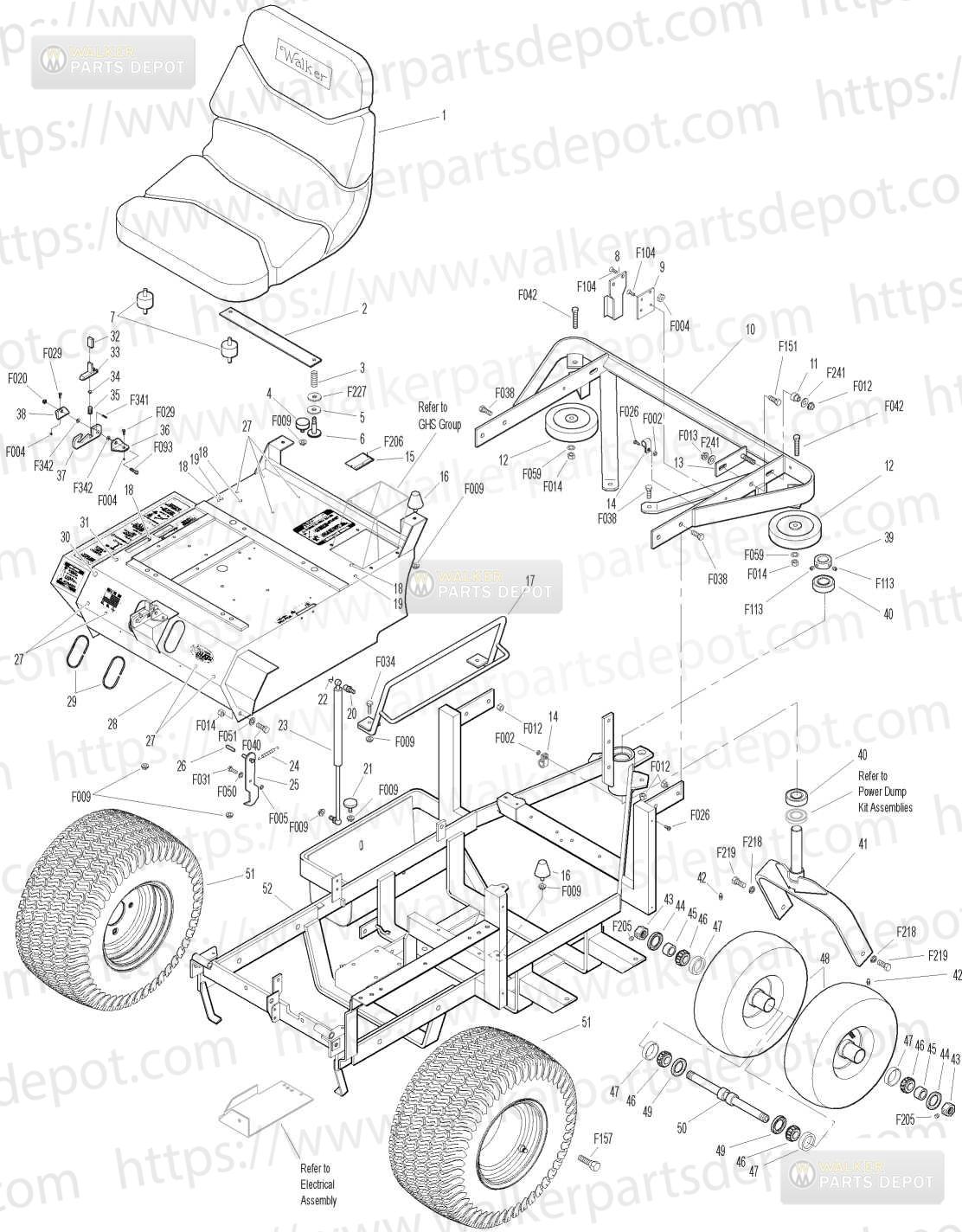

PARTS > MD MANUALS > 2004-05-01, 7000-7, Serial 72868-79107 > Body and Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5103	NR Seat	$250.95	Add to Cart
2	7203	Seat Spring Plate
3	7223	Compression Spring (1/2 x 1)
4	7845	Rubber Bumper 1375X63	$4.80	Add to Cart
5	7846	Washer 38x114x18	$8.06	Add to Cart
6	7204	Shoulder Bolt Seat Mount	$7.07	Add to Cart
7	7440-5	Shock Mount 114x34	$8.21	Add to Cart
8	NS	Recovery Tank Mount (19449-72502 Kubota)
9	7047-5	Mount Plate	$11.42	Add to Cart
10	7516-7	NR GHS Rear Bumper DMTL	$218.40	Add to Cart
11	7516-5	Catcher Pivot Bushing	$11.63	Add to Cart
12	5162	Roller Wheel 5 Rubber	$13.40	Add to Cart
13	7517-2	Catcher Pivot Plate	$7.80	Add to Cart
14	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
15	NS	Body ID Plate
16	5845	Rubber Bumper 150x125	$7.12	Add to Cart
17	7422	Panel Guard	$29.19	Add to Cart
18	5989-4	Dome Plug 38	$0.83	Add to Cart
19	5989-3	Dome Plug 516	$0.30	Add to Cart
20	7146	13mm Ball Stud	$4.92	Add to Cart
21	7844	Rubber Bumper 125x250	$4.06	Add to Cart
22	7147	Spring Clip	$1.44	Add to Cart
23	7145	Gas Spring Assembly	$39.60	Add to Cart
24	7222	Extension Spring 14x3	$6.96	Add to Cart
25	7383-1	Body Latch Hook	$7.18	Add to Cart
26	7854	Plastic TipRed	$0.50	Add to Cart
27	5989-9	Dome Plug 14	$0.50	Add to Cart
28	7100	Front BodyD	$607.11	Add to Cart
29	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
30	5989-55	Dome Plug 12	$0.65	Add to Cart
31	5989-5	Dome Plug 716	$1.04	Add to Cart
32	5847	Plastic Tip	$0.65	Add to Cart
33	5744-20	Spring Arm TiltUp Latch	$12.43	Add to Cart
34	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
35	5744-15	Compression Spg 38x58	$2.26	Add to Cart
36	5744-13	Mount AngleLH	$9.41	Add to Cart
37	5744-12	Hook TiltUp Latch	$10.22	Add to Cart
38	5744-14	Mount AngleRH	$9.41	Add to Cart
39	5267-1	Retainer Collar 1	$13.52	Add to Cart
40	5270-1	Ball Bearing	$9.20	Add to Cart
41	7420	Tail Wheel Fork	$137.03	Add to Cart
42	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
43	8039	Nut Tail Wheel Axle	$6.91	Add to Cart
44	8037-1	Seal- Outer (1-3/4x1-1/8)	$7.16	Add to Cart
45	8038-1	Spacer Wheel Axle 750xIDx1125OD	$12.61	Add to Cart
46	8037	Bearing Cone 34ID	$12.09	Add to Cart
47	8037-2	Bearing Race	$13.55	Add to Cart
48	8035	Tail Whl& Tire(13x5.00-6) (W/Bearing Race)	$75.08	Add to Cart
	7035-1	Tail Whl Tire 13x5006	$63.00	Add to Cart
	8036	Tail Wheel Hub 6x325 WRace	$60.14	Add to Cart
	7420-20	Dual Tail Whl Tire Assy	$386.19	Add to Cart
49	8768-2	Seal Reverse Lip	$10.08	Add to Cart
50	8038	Tail Whl Axle34x1038	$62.85	Add to Cart
51	7070	Wheel Tire 18x9 50 8	$178.83	Add to Cart
	7070-1	Drive Tire 18x9 50 8	$142.54	Add to Cart
	5070-4	Wide Wheel 8x7	$124.53	Add to Cart
52	7300-5	Chassis Frame D50 Tank	$1,719.00	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F042	3816x214 Hex Bolt	$1.97	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F104	1420x34 PFH Bolt	$0.22	Add to Cart
	F113	51618x516 Set Screw	$0.43	Add to Cart
	F151	3816x78 Hex Bolt	$1.18	Add to Cart
	F157	1220x114 Whl Lug Bolt	$5.06	Add to Cart
	F205	51618x14 Set Screw Knurl Point	$0.94	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F218	716 Split Lock Washer	$0.34	Add to Cart
	F219	71614x114 Hex Bolt	$2.06	Add to Cart
	F227	38x114x18 Plastic Shoulder Washer	$8.10	Add to Cart
	F241	375x875x10 Washer	$0.79	Add to Cart
	F341	Coil Roll Pin 764x916	$0.34	Add to Cart
	F342	516 Conical Washer	$1.98	Add to Cart
