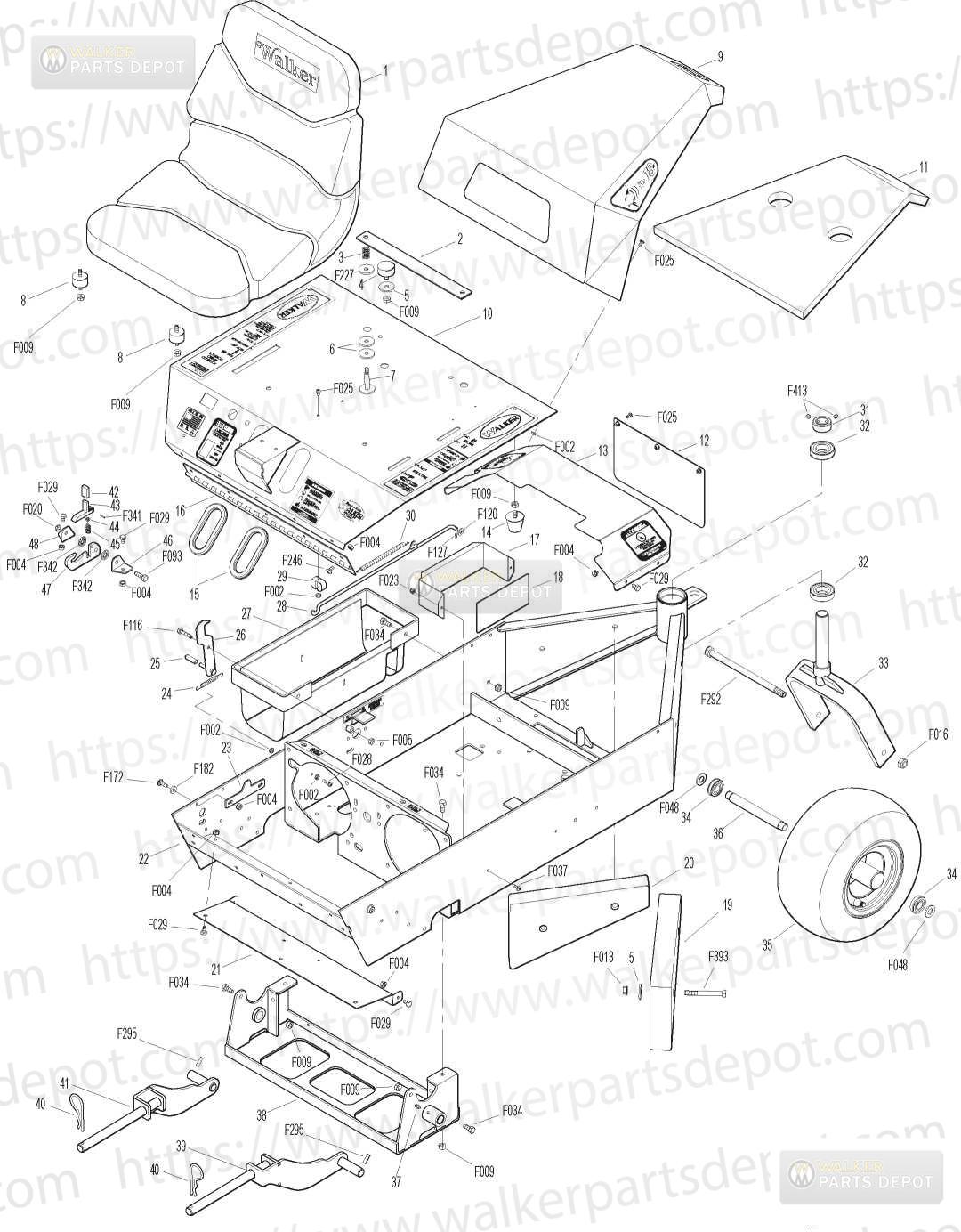

PARTS > MB MANUALS > 2005-12-15, 4000-2, Serial 79432-85247 > Body and Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5103	NR Seat	$250.95	Add to Cart
2	7203	Seat Spring Plate
3	7223	Compression Spring (1/2 x 1)
4	7845	Rubber Bumper 1375X63	$4.80	Add to Cart
5	5841	Retainer Washer 38x114	$1.42	Add to Cart
6	7846	Washer 38x114x18	$8.06	Add to Cart
7	7204	Shoulder Bolt Seat Mount	$7.07	Add to Cart
8	7440-5	Shock Mount 114x34	$8.21	Add to Cart
9	4105	Rear Body	$136.50	Add to Cart
10	4100	Front Body	$233.94	Add to Cart
11	4190	NR Insulation Foam Pad	$14.83	Add to Cart
12	4107-3	NR Clutch Guard	$31.55	Add to Cart
13	4107-2	NR Upper Guard	$51.48	Add to Cart
14	5845	Rubber Bumper 150x125	$7.12	Add to Cart
15	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
16	4504-3	Hinge 19	$31.94	Add to Cart
17	4910-2	Battery Hold Down Plate	$20.20	Add to Cart
18	5747-10	Rubber Mat NoHole 3x6	$5.10	Add to Cart
19	4647-1	Tail WeightLH 43 lbs	$207.38	Add to Cart
20	4647-2	Tail WeightRH 43 lbs	$207.38	Add to Cart
21	4300-8	Chassis Guard Lower Frnt	$34.19	Add to Cart
22	4300	NR Chassis Frame	$409.29	Add to Cart
23	4102	Body Guide	$6.31	Add to Cart
24	7222	Extension Spring 14x3	$6.96	Add to Cart
25	7854	Plastic TipRed	$0.50	Add to Cart
26	7383-1	Body Latch Hook	$7.18	Add to Cart
27	9046	Gas Tank Mount	$74.59	Add to Cart
28	4145	NR Body Support Rod	$13.46	Add to Cart
29	4145-1	Spring Clip	$3.72	Add to Cart
30	5223	Ext Spring 14x512	$6.00	Add to Cart
31	5267-1	Retainer Collar 1	$13.52	Add to Cart
32	5270-1	Ball Bearing	$9.20	Add to Cart
33	5420-2	Tail Wheel Fork	$84.92	Add to Cart
34	5037-1	Bearing Tail Wheel	$7.12	Add to Cart
35	5035	Tail Wheel Tire Assy 13x6506	$102.27	Add to Cart
	5035-1	NR Tail Whl Tire 13x6506	$122.96	Add to Cart
	5036	Tail Wheel Hub 6x45	$84.63	Add to Cart
36	5038-1	Axle Spacer Tube 658	$17.85	Add to Cart
37	5830	Grease Fitting 1428	$2.47	Add to Cart
38	4300-9	Deck SupportArm Mount (Includes Item # 37)
39	4431	NR Deck Support ArmLH	$54.98	Add to Cart
40	5775-2	Hitch Pin 6	$3.24	Add to Cart
41	4430	NR Deck Support ArmRH	$54.98	Add to Cart
42	5847	Plastic Tip	$0.65	Add to Cart
43	5744-20	Spring Arm TiltUp Latch	$12.43	Add to Cart
44	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
45	5744-15	Compression Spg 38x58	$2.26	Add to Cart
46	5744-13	Mount AngleLH	$9.41	Add to Cart
47	5744-12	Hook TiltUp Latch	$10.22	Add to Cart
48	5744-14	Mount AngleRH	$9.41	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F016	1213 SelfLocking Nut	$1.51	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F023	1024 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F037	1024x58 PTH Screw	$0.18	Add to Cart
	F048	12 SAE Washer	$0.50	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F116	1420x114 Hex Bolt	$0.65	Add to Cart
	F120	AN960416 Washer	$0.29	Add to Cart
	F127	116x12 Cotter Pin	$0.18	Add to Cart
	F172	1420x34 Carriage Bolt	$0.50	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F227	38x114x18 Plastic Shoulder Washer	$8.10	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F292	1213x812 Hex BoltGR5	$5.76	Add to Cart
	F295	316x112 Split Spg Pin	$0.64	Add to Cart
	F341	Coil Roll Pin 764x916	$0.34	Add to Cart
	F342	516 Conical Washer	$1.98	Add to Cart
	F393	3816x314 Hex Bolt	$2.26	Add to Cart
	F413	51624x516 Set Screw	$0.58	Add to Cart
