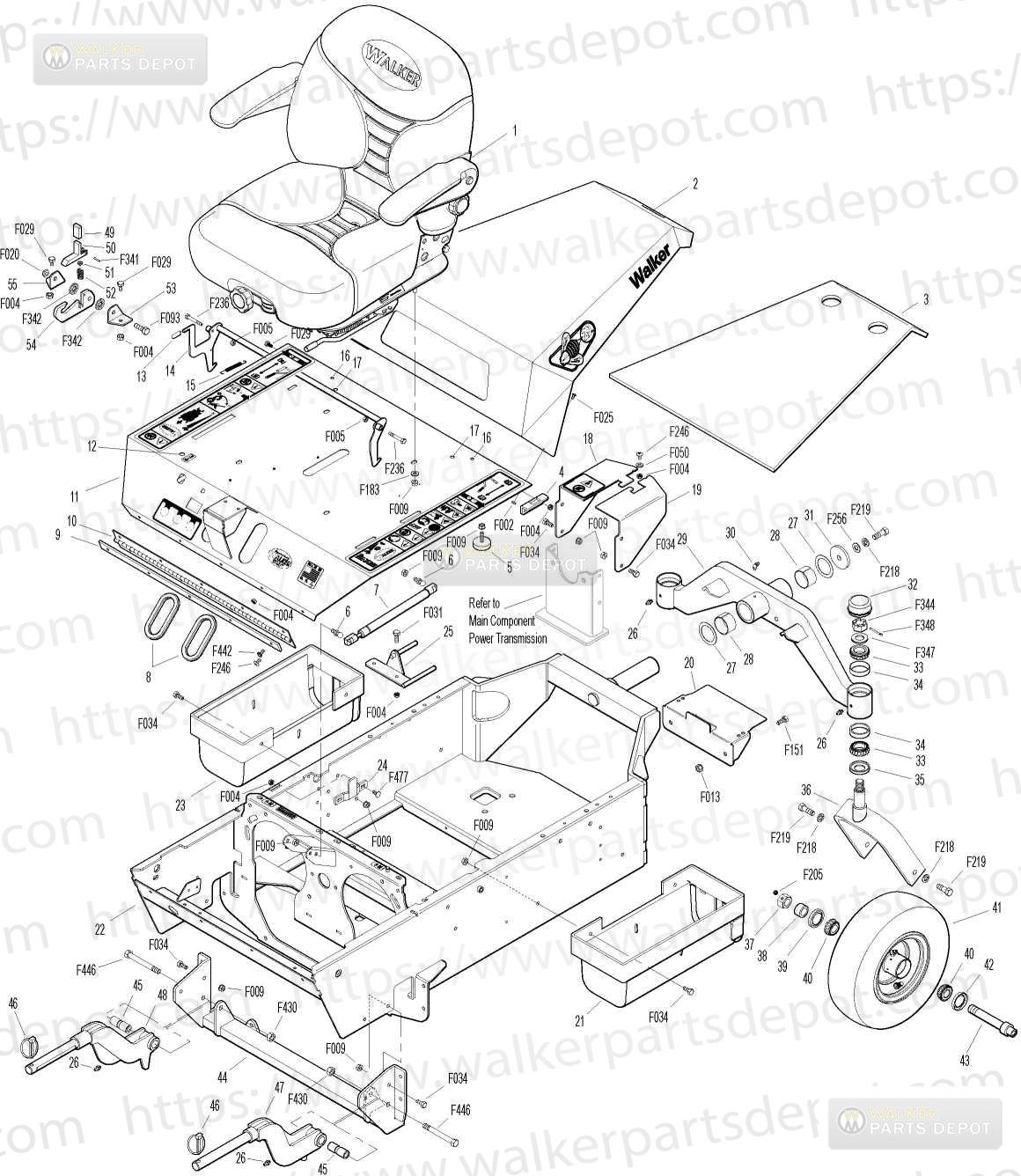

PARTS > MH MANUALS > 2012-07-19, 2000-6, Serial 115338-125121 > Body and Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	2103-1	Seat	$604.44	Add to Cart
2	2105-12	NR Rear BodyMBSMBS2629	$331.17	Add to Cart
3	2190-1	Insulation Foam Pad	$33.99	Add to Cart
4	4102-1	Body GuideUpper	$7.13	Add to Cart
5	7844	Rubber Bumper 125x250	$4.06	Add to Cart
6	5146	10mm Ball Stud	$3.77	Add to Cart
7	2145	Gas Spring	$18.26	Add to Cart
8	5180	Edge MoldingLvr Opening	$3.43	Add to Cart
9	2100-3	Front Body Doubler
10	2504-4	Hinge 225	$20.15	Add to Cart
11	2100-2	Front Body
12	5989-5	Dome Plug 716	$1.04	Add to Cart
13	7854	Plastic TipRed	$0.50	Add to Cart
14	2383	Body Latch Hook	$35.16	Add to Cart
15	7222	Extension Spring 14x3	$6.96	Add to Cart
16	5989-4	Dome Plug 38	$0.83	Add to Cart
17	5989-3	Dome Plug 516	$0.30	Add to Cart
18	2010-12	Flex Coupling Guard RH	$16.83	Add to Cart
19	2010-13	Flex Coupling Guard LH	$15.44	Add to Cart
20	2390-1	Battery Pan	$28.42	Add to Cart
21	2046-1	Gas Tank MountLH	$131.78	Add to Cart
22	2300-3	Chassis Frame
23	2046	Gas Tank Mount	$130.94	Add to Cart
24	4102-2	Body GuideLower	$7.18	Add to Cart
25	2325-8	Belt Guide	$17.55	Add to Cart
26	5830	Grease Fitting 1428	$2.47	Add to Cart
27	2201-2	Fiberglide Thrust Washer	$11.57	Add to Cart
28	2201-3	Fiberglide Bearing 158	$19.05	Add to Cart
29	2300-6	Tail Wheel Pivot	$530.25	Add to Cart
30	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
31	2201-4	Washer 214x716x14Thk	$6.77	Add to Cart
32	8769-8	Dust Cap Deck Caster	$10.62	Add to Cart
33	8769-6	Bearing Cone 1ID	$11.86	Add to Cart
34	8769-5	Bearing Cup 2x158	$7.52	Add to Cart
35	8769-7	Seal	$5.66	Add to Cart
36	2770	Caster Wheel Fork	$69.72	Add to Cart
37	8039	Nut Tail Wheel Axle	$6.91	Add to Cart
38	8038-1	Spacer Wheel Axle 750xIDx1125OD	$12.61	Add to Cart
39	8768-2	Seal Reverse Lip	$10.08	Add to Cart
40	8037	Bearing Cone 34ID	$12.09	Add to Cart
41	8035	Tail Whl& Tire(13x5.00-6) (W/Bearing Race)	$75.08	Add to Cart
42	8037-1	Seal- Outer (1-3/4x1-1/8)	$7.16	Add to Cart
43	7038	Wheel Axle34x5916	$43.85	Add to Cart
44	2300-9	Deck Arm Support Mount	$156.24	Add to Cart
45	6840-1	Support Arm Bushing 2116	$17.60	Add to Cart
46	2775	Lynch Pin 516x114	$5.45	Add to Cart
47	2431	Deck Support Arm LH	$58.44	Add to Cart
48	2430	Deck Support Arm RH	$59.05	Add to Cart
49	5847	Plastic Tip	$0.65	Add to Cart
50	5744-20	Spring Arm TiltUp Latch	$12.43	Add to Cart
51	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
52	5744-15	Compression Spg 38x58	$2.26	Add to Cart
53	5744-13	Mount AngleLH	$9.41	Add to Cart
54	5744-12	Hook TiltUp Latch	$10.22	Add to Cart
55	5744-14	Mount AngleRH	$9.41	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F151	3816x78 Hex Bolt	$1.18	Add to Cart
	F183	312x700x074 Washer	$0.58	Add to Cart
	F205	51618x14 Set Screw Knurl Point	$0.94	Add to Cart
	F218	716 Split Lock Washer	$0.34	Add to Cart
	F219	71614x114 Hex Bolt	$2.06	Add to Cart
	F236	1420x134 Hex Bolt	$0.84	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F256	716 SAE Washer	$0.50	Add to Cart
	F341	Coil Roll Pin 764x916	$0.34	Add to Cart
	F342	516 Conical Washer	$1.98	Add to Cart
	F344	3416 Slotted Hex Nut	$3.12	Add to Cart
	F347	34 SAE Washer	$1.18	Add to Cart
	F348	18x112 Cotter Pin	$0.18	Add to Cart
	F430	71620 ESNA Nut	$0.79	Add to Cart
	F442	1420x58 PTHMS	$0.31	Add to Cart
	F446	71620x312 Grd 8 Bolt	$4.87	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
