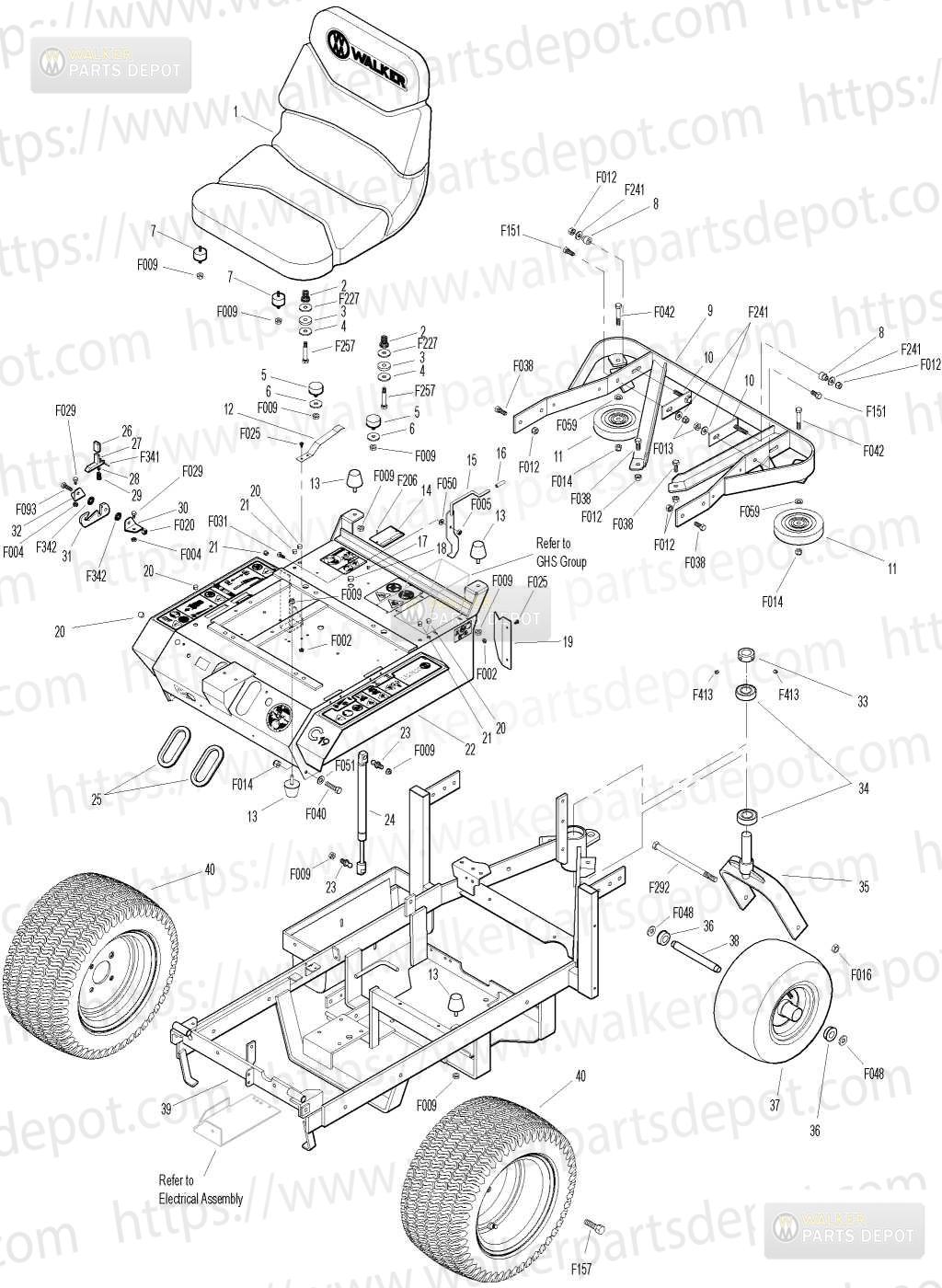

PARTS > MC MANUALS > 2013-11-25, 6000-17, Serial 125718-140306 > Body and Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5103	(NR) Seat	$240.48	Add to Cart
2	7223-1	Compression Spring
3	7846	Washer (3/8x1-1/4x1/8)	$8.06	Add to Cart
4	5841-1	Retainer Washer	$1.51	Add to Cart
5	7845-1	Rubber Bumper (1.375X.750)	$5.66	Add to Cart
6	5841	Retainer Washer (3/8x1-1/4)	$1.42	Add to Cart
7	7440-5	Shock Mount (1-1/4x3/4)	$8.21	Add to Cart
12	2505	(NR) Leaf Spring	$11.76	Add to Cart
13	5845	Rubber Bumper (1.50x1.25)	$7.12	Add to Cart
14	NS	Body ID Plate
15	7383-3	(NR) Body Latch Hook (2-1/2 Side Bars)	$9.94	Add to Cart
16	7854	Plastic Tip/Red	$0.50	Add to Cart
17	5989-12	Dome Plug (3/16)	$0.50	Add to Cart
18	5989-10	Dome Plug (9/16)	$0.65	Add to Cart
19	8118	Heat Deflector	$7.42	Add to Cart
20	5989-5	Dome Plug (7/16)	$1.04	Add to Cart
21	5989-4	Dome Plug (3/8)	$0.30	Add to Cart
22	6100-19	(NR) Front Body MC19	$706.69	Add to Cart
23	7146	13mm Ball Stud	$4.92	Add to Cart
24	2145	Gas Spring	$18.26	Add to Cart
25	5180	Edge Molding/Lvr Opening	$3.43	Add to Cart
26	5847	Plastic Tip	$0.65	Add to Cart
27	5744-20	Spring Arm Tilt-Up Latch	$12.43	Add to Cart
28	5744-10	Spring Pivot Bushing	$7.80	Add to Cart
29	5744-15	Compression Spg (3/8x5/8)	$2.26	Add to Cart
30	5744-13	Mount Angle/LH	$9.41	Add to Cart
31	5744-12	Hook Tilt-Up Latch	$10.22	Add to Cart
32	5744-14	Mount Angle/RH	$9.41	Add to Cart
33	5267-1	"Retainer Collar (1"")"	$13.52	Add to Cart
34	5270-1	Ball Bearing	$9.20	Add to Cart
35	5420-2	Tail Wheel Fork	$84.92	Add to Cart
36	5037-1	Bearing Tail Wheel	$7.12	Add to Cart
37	5035	Tail Wheel & Tire Assy (13x6.50-6)	$102.26	Add to Cart
	5035-1	(NR) Tail Whl Tire (13x6.50-6)	$122.98	Add to Cart
	5036	Tail Wheel & Hub (6x4.5)	$84.62	Add to Cart
38	5038-1	Axle Spacer Tube (6-5/8)	$17.85	Add to Cart
39	6307-2	Chassis Frame MC19	$1,057.92	Add to Cart
40	5075-1	LP Wheel Tire 18x8 50 10	$173.82	Add to Cart
	5075-2	LP Tire (18x8.50-10)	$130.91	Add to Cart
	5075-5	LP Wheel (10x7)	$117.55	Add to Cart
	5033-6	Wheel & Tire (18x7.00-8) (5030-6 Tire & 5031-2 Wheel)	$144.33	Add to Cart
	5030-6	Standard Tire (18x7.00-8)	$131.88	Add to Cart
	5031-2	(NR) Standard Wheel (8x5-5)	$99.07	Add to Cart
	5030-4	Tire Tube (18x8.50-8)	$23.41	Add to Cart
	F002	10-24 Keps Nut	$0.18	Add to Cart
	F004	1/4-20 Keps Nut	$0.34	Add to Cart
	F005	1/4-20 ESNA Nut	$0.34	Add to Cart
	F009	5/16-18 Whiz Locknut	$0.50	Add to Cart
	F012	3/8-16 Keps Nut	$0.79	Add to Cart
	F013	3/8-16 Whiz Locknut	$0.65	Add to Cart
	F014	3/8-16 ESNA Nut	$0.65	Add to Cart
	F016	1/2-13 Self-Locking Nut	$1.51	Add to Cart
	F020	5/16-18 ESNA Nut	$0.34	Add to Cart
	F025	10-24x3/8 PPHMS	$0.18	Add to Cart
	F029	1/4-20x1/2 Hex Bolt	$0.50	Add to Cart
	F031	1/4-20x5/8 Hex Bolt	$0.50	Add to Cart
	F038	3/8-16x1 Hex Bolt	$1.06	Add to Cart
	F040	3/8-16x1-1/2 Hex Bolt	$1.54	Add to Cart
	F042	3/8-16x2-1/4 Hex Bolt	$1.97	Add to Cart
	F048	1/2 SAE Washer	$0.50	Add to Cart
	F050	1/4 SAE Washer	$0.18	Add to Cart
	F051	3/8 SAE Washer	$0.65	Add to Cart
	F059	3/8 Wave Spring Washer	$1.32	Add to Cart
	F093	5/16-18x1 Hex Bolt	$0.94	Add to Cart
	F151	3/8-16x7/8 Hex Bolt	$1.18	Add to Cart
	F157	1/2-20x1-1/4 Whl Lug Bolt	$5.06	Add to Cart
	F206	#2x3/16 Drive Pin	$0.18	Add to Cart
	F227	3/8x1-1/4x1/8 Plastic Shoulder Washer	$8.10	Add to Cart
	F241	.375x.875x.10 Washer	$0.79	Add to Cart
	F257	3/8-16 x1-11/16 Shoulder Bolt	$2.51	Add to Cart
	F292	1/2-13x8-1/2 Hex Bolt GR5	$5.76	Add to Cart
	F341	Coil Roll Pin (7/64x9/16)	$0.34	Add to Cart
	F342	5/16 Conical Washer	$1.98	Add to Cart
	F413	5/16-24x5/16 Set Screw	$0.58	Add to Cart
