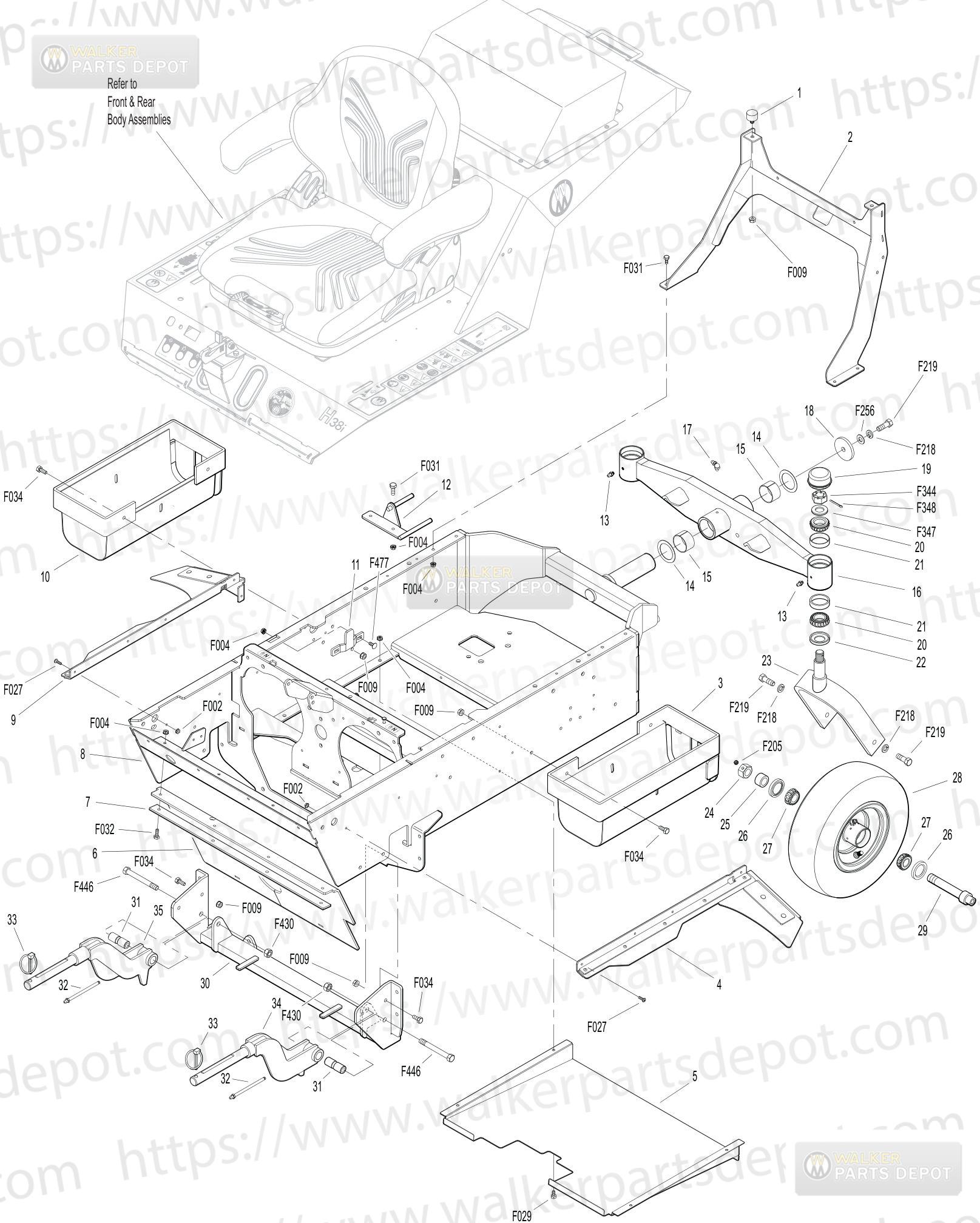

PARTS > MH MANUALS > 2018-02-07, 2000-20, Serial 147211-155105 > Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	4845	Rubber Bumper 10x625	$8.50	Add to Cart
2	2104-3	Rear Body SupportMH38	$67.96	Add to Cart
3	2046-1	Gas Tank MountLH	$131.78	Add to Cart
4	2301-25	Gap Seal Assembly, LH
5	2301	Debris Shield Kit	$91.22	Add to Cart
6	2301-8	Debris Guard	$30.95	Add to Cart
7	2301-9	Back Up Plate	$11.94	Add to Cart
8	2300-11	Chassis FrameMH38i	$977.76	Add to Cart
9	2301-26	Gap Seal Assembly, RH
10	2046	Gas Tank Mount	$130.94	Add to Cart
11	4102-2	Body GuideLower	$7.18	Add to Cart
12	2325-8	Belt Guide	$17.55	Add to Cart
13	5830	Grease Fitting 1428	$2.47	Add to Cart
14	2201-2	Fiberglide Thrust Washer	$11.57	Add to Cart
15	2201-3	Fiberglide Bearing 158	$19.05	Add to Cart
16	2300-10	NR Tail Wheel Pivot	$405.51	Add to Cart
17	5830-4	Grease Fitting 90 Deg	$4.32	Add to Cart
18	2201-4	Washer 214x716x14Thk	$6.77	Add to Cart
19	8769-8	Dust Cap Deck Caster	$10.62	Add to Cart
20	8769-6	Bearing Cone 1ID	$11.86	Add to Cart
21	8769-5	Bearing Cup 2x158	$7.52	Add to Cart
22	8769-7	Seal	$5.66	Add to Cart
23	2770	Caster Wheel Fork	$69.72	Add to Cart
24	8039	Nut Tail Wheel Axle	$6.91	Add to Cart
25	8038-1	Spacer Wheel Axle 750xIDx1125OD	$12.61	Add to Cart
26	8768-2	Seal Reverse Lip	$10.08	Add to Cart
27	8037	Bearing Cone 34ID	$12.09	Add to Cart
28	8035	Tail Whl& Tire(13x5.00-6) (W/Bearing Race)	$75.08	Add to Cart
29	7038	Wheel Axle34x5916	$43.85	Add to Cart
30	2300-9	Deck Arm Support Mount	$156.24	Add to Cart
31	6840-1	Support Arm Bushing 2116	$17.60	Add to Cart
32	5830-1	51624 4 Grease Fitting	$8.03	Add to Cart
33	2775	Lynch Pin 516x114	$5.45	Add to Cart
34	2431-2	Deck Support ArmLH	$81.33	Add to Cart
35	2430-2	Deck Support ArmRH	$82.61	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F205	51618x14 Set Screw Knurl Point	$0.94	Add to Cart
	F218	716 Split Lock Washer	$0.34	Add to Cart
	F219	71614x114 Hex Bolt	$2.06	Add to Cart
	F256	716 SAE Washer	$0.50	Add to Cart
	F344	3416 Slotted Hex Nut	$3.12	Add to Cart
	F347	34 SAE Washer	$1.18	Add to Cart
	F348	18x112 Cotter Pin	$0.18	Add to Cart
	F430	71620 ESNA Nut	$0.79	Add to Cart
	F446	71620x312 Grd 8 Bolt	$4.87	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
