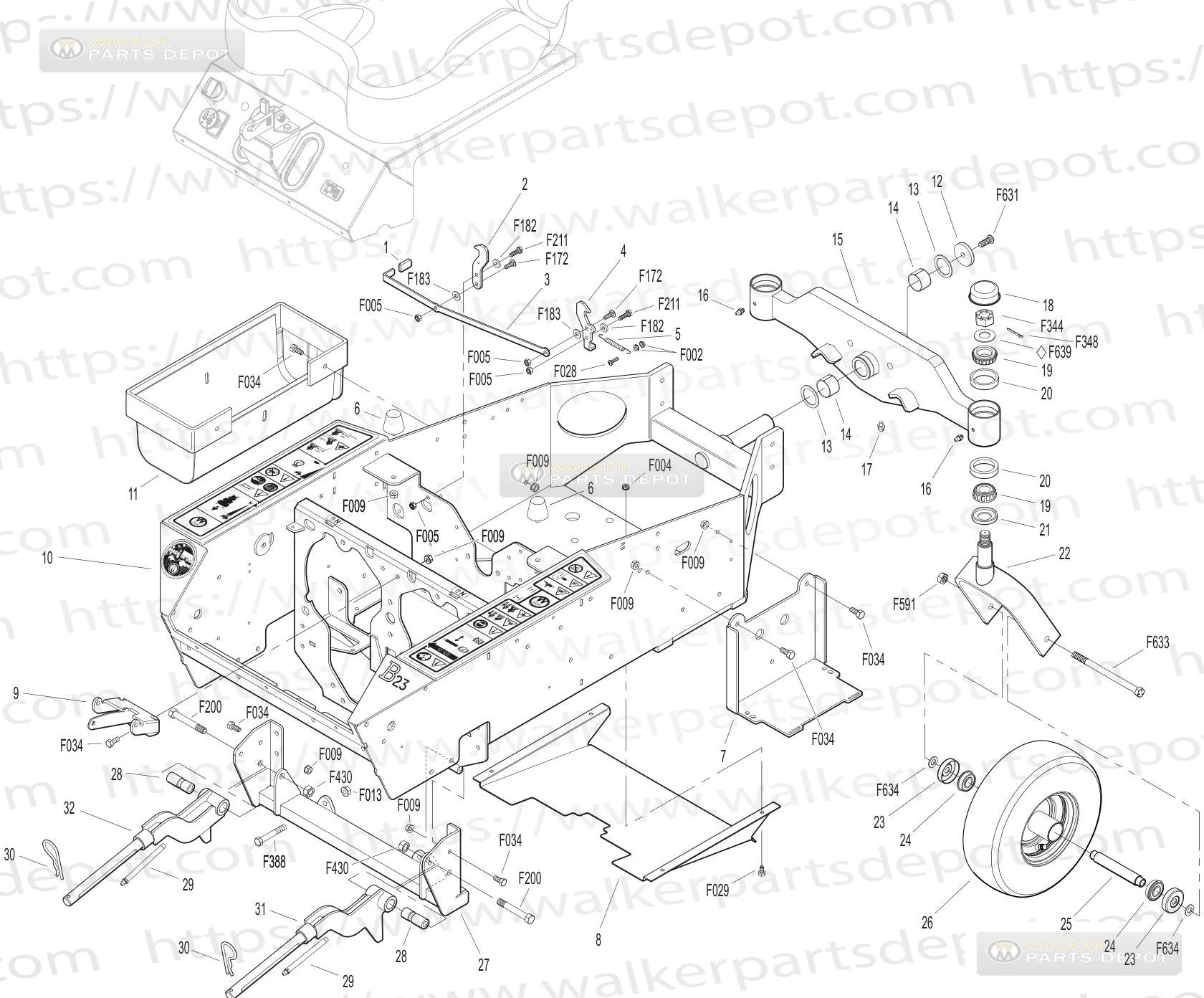

PARTS > MB MANUALS > 2026-05-21, 4000-53, Serial 197180-AND ON > Chassis Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5854	Plastic Tip	$1.98	Add to Cart
2	7383-12	Body Latch HookRH	$9.84	Add to Cart
3	7383-9	Body Latch Trigger	$12.72	Add to Cart
4	7383-15	Body Latch HookLH WSpring Hole	$10.50	Add to Cart
5	7222	Extension Spring 14x3	$6.96	Add to Cart
6	5845	Rubber Bumper 150x125	$7.12	Add to Cart
7	4910-9	Battery MountMB27iMC23i	$56.47	Add to Cart
8	4301-13	Debris Shield KitMB	$67.66	Add to Cart
9	4215-10	Shock MountBody Lift Arm	$19.03	Add to Cart
10	4305-7	Chassis Frame
11	2046	Gas Tank Mount	$130.94	Add to Cart
12	4401-4	Washer 134x38x14Thk	$5.40	Add to Cart
13	4301-2	Fiberglide Thrust Washer	$11.22	Add to Cart
14	4301-3	Fiberglide Bearing	$12.44	Add to Cart
15	4301-14	Tail Wheel Pivot Axle 21938 Center to Center	$391.23	Add to Cart
16	5830	Grease Fitting 1428	$2.47	Add to Cart
17	5830-4	Grease Fitting 90 Deg	$4.32	Add to Cart
18	8769-8	Dust Cap Deck Caster	$10.62	Add to Cart
19	8769-6	Bearing Cone 1ID	$11.86	Add to Cart
20	8769-5	Bearing Cup 2x158	$7.52	Add to Cart
21	8769-7	Seal	$5.66	Add to Cart
22	8765-14	Caster Wheel Fork	$75.18	Add to Cart
23	8769-13	Bearing Cup 716 ID	$6.80	Add to Cart
24	5037-1	Bearing Tail Wheel	$7.12	Add to Cart
25	5038-3	Axle Spacer Tube 4995 4375 ID	$15.74	Add to Cart
26	8768-10	Caster WheelPneu 11x45 PRBB	$148.05	Add to Cart
	8768-8	Tire Pneumatic 11x45 6PLY	$53.81	Add to Cart
27	4301-11	Deck Arm Support
28	6840-3	Support Arm Bushing Offset 2116	$10.21	Add to Cart
29	5830-1	51624 4 Grease Fitting	$8.03	Add to Cart
30	5775-2	Hitch Pin 6	$3.24	Add to Cart
31	4431-2	Deck Support ArmLH	$97.44	Add to Cart
32	4430-2	Deck Support ArmRH	$100.17	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F172	1420x34 Carriage Bolt	$0.50	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F183	312x700x074 Washer	$0.58	Add to Cart
	F200	71620x3 Grade 8 Bolt	$4.06	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F344	3416 Slotted Hex Nut	$3.12	Add to Cart
	F348	18x112 Cotter Pin	$0.18	Add to Cart
	F388	3816x212 Hex Bolt	$2.26	Add to Cart
	F430	71620 ESNA Nut	$0.79	Add to Cart
	F591	71614 Flange Top Lock Nut	$1.43	Add to Cart
	F631	3816x1 Button Head Cap Screw	$3.98	Add to Cart
	F633	71614x612 Hex Bolt	$8.08	Add to Cart
	F634	Washer 835x438x080	$1.88	Add to Cart
	F639	Belleville Washer15x755x 072	$4.19	Add to Cart
