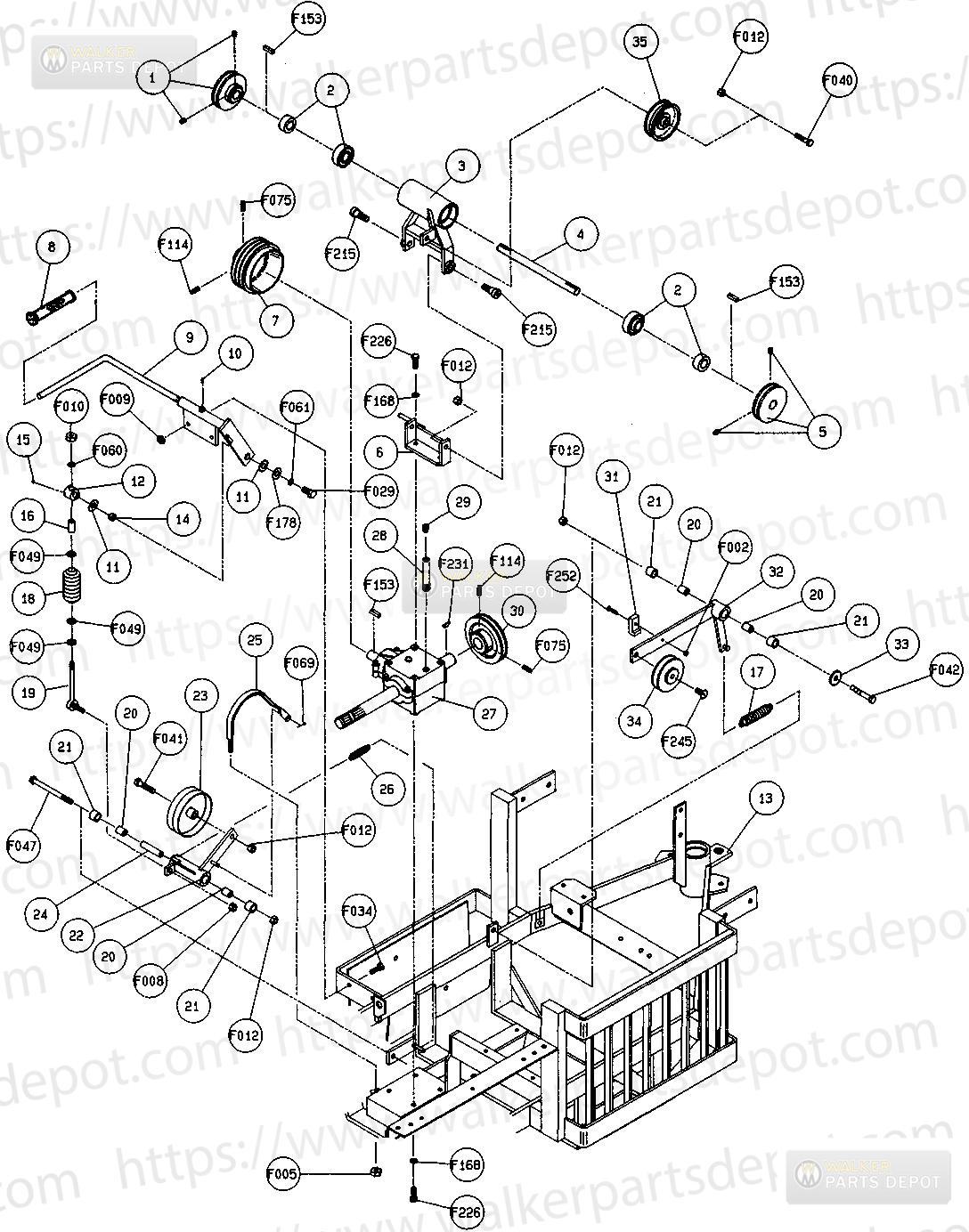

PARTS > MD MANUALS > 1993-03-01, 7895-1, Serial 11756-29675 > Chassis Belt Tensioning Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7240-1	Jackshaft Drive Pulley 3123V	$38.92	Add to Cart
	7240	Jackshaft Drive Pulley (3V)
2	5268	Bearing WCollar 34 BOXED	$52.79	Add to Cart
	7265	Jackshaft Bearing
3	7349	Jackshaft Support Assembly*
	7348	Jackshaft Support Assembly
4	7273	Jackshaft 34x878	$24.46	Add to Cart
	7274	Jackshaft (5/8")
5	7241-1	NR Trans Dr Pulley 314A	$36.41	Add to Cart
	7241	Transmission Drive Pulley (3-1/4")
6	7351	Jackshaft Mount Bracket
7	7236	NR PTO Drive Pulley 4123V	$86.81	Add to Cart
8	7860	Handle Grip
9	7358	NR Clutch LeverD	$101.01	Add to Cart
10	5830	Grease Fitting 1428	$2.47	Add to Cart
11	7377	Plastic Washer 1x438x025	$1.02	Add to Cart
12	7380	Knuckle Joint	$16.48	Add to Cart
13	7300	Chassis Frame (MD)
14	7378	Pivot Bearing 716x916	$9.35	Add to Cart
15	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
16	7379	Bushing
17	5221	Extension Spring 34x4	$7.12	Add to Cart
18	7226	Compress Spg 34x212 516 Bolt	$6.76	Add to Cart
19	7303-1	Clutch Actuator Rod
20	7201	Bearing Inner Race
21	7201-1	Needle Bearing
22	7368	PTO Belt Tightener Assembly
23	7243	Clutch Idler Pulley	$45.10	Add to Cart
24	7368-1	Bearing Spacer Tube
25	7303	NR Brake Band 1338	$38.13	Add to Cart
26	5229	Ext Spring 12x214	$7.56	Add to Cart
27	7050	PTO Gearbox
28	7206	Pressure Relief Valve Stem
29	6206	Pressure Relief Valve
30	7238	NR Blwr Dr Pulley 4143V	$20.15	Add to Cart
31	7390	Idler Arm Guide	$11.72	Add to Cart
32	7373	Ground Drive Idler Arm
33	5841	Retainer Washer 38x114	$1.42	Add to Cart
34	7245-1	Idler Pulley 38 Groove	$23.98	Add to Cart
35	5245	Idler Pulley 3	$23.30	Add to Cart
F002	F002	1024 Keps Nut	$0.18	Add to Cart
F005	F005	1420 ESNA Nut	$0.34	Add to Cart
F008	F008	51624 Keps Nut	$0.79	Add to Cart
F009	F009	51618 Whiz Locknut	$0.50	Add to Cart
F010	F010	51624 ESNA Nut	$0.50	Add to Cart
F012	F012	3816 Keps Nut	$0.79	Add to Cart
F029	F029	1420x12 Hex Bolt	$0.50	Add to Cart
F034	F034	51618x34 Hex Bolt	$0.79	Add to Cart
F040	F040	3816x112 Hex Bolt	$1.54	Add to Cart
F041	F041	3816x134 Hex Bolt	$1.87	Add to Cart
F042	F042	3816x214 Hex Bolt	$1.97	Add to Cart
F047	F047	3816x412 Hex Bolt	$3.12	Add to Cart
F049	F049	516 SAE Washer	$0.18	Add to Cart
F060	F060	AN960516 Washer	$0.29	Add to Cart
F061	F061	14 Star Lock Wshr	$0.18	Add to Cart
F069	F069	332x12 Cotter Pin	$0.18	Add to Cart
F075	F075	51618x12 SQH Set Screw	$0.50	Add to Cart
F114	F114	51618x58 SQH Set Screw	$0.65	Add to Cart
F153	F153	316x316x114 Key	$1.54	Add to Cart
F168	F168	516 Split Lock Washer	$0.18	Add to Cart
F178	F178	14x1 Fender Washer	$1.42	Add to Cart
F215	F215	3816x12x12 SBolt	$6.67	Add to Cart
F226	F226	51618x78 Hex Bolt	$0.78	Add to Cart
F231	F231	14x34 Woodruff Key 806	$2.18	Add to Cart
F245	F245	3824x78 SFH Cap Screw	$3.34	Add to Cart
F252	F252	1024x34 PFHMS	$0.18	Add to Cart
