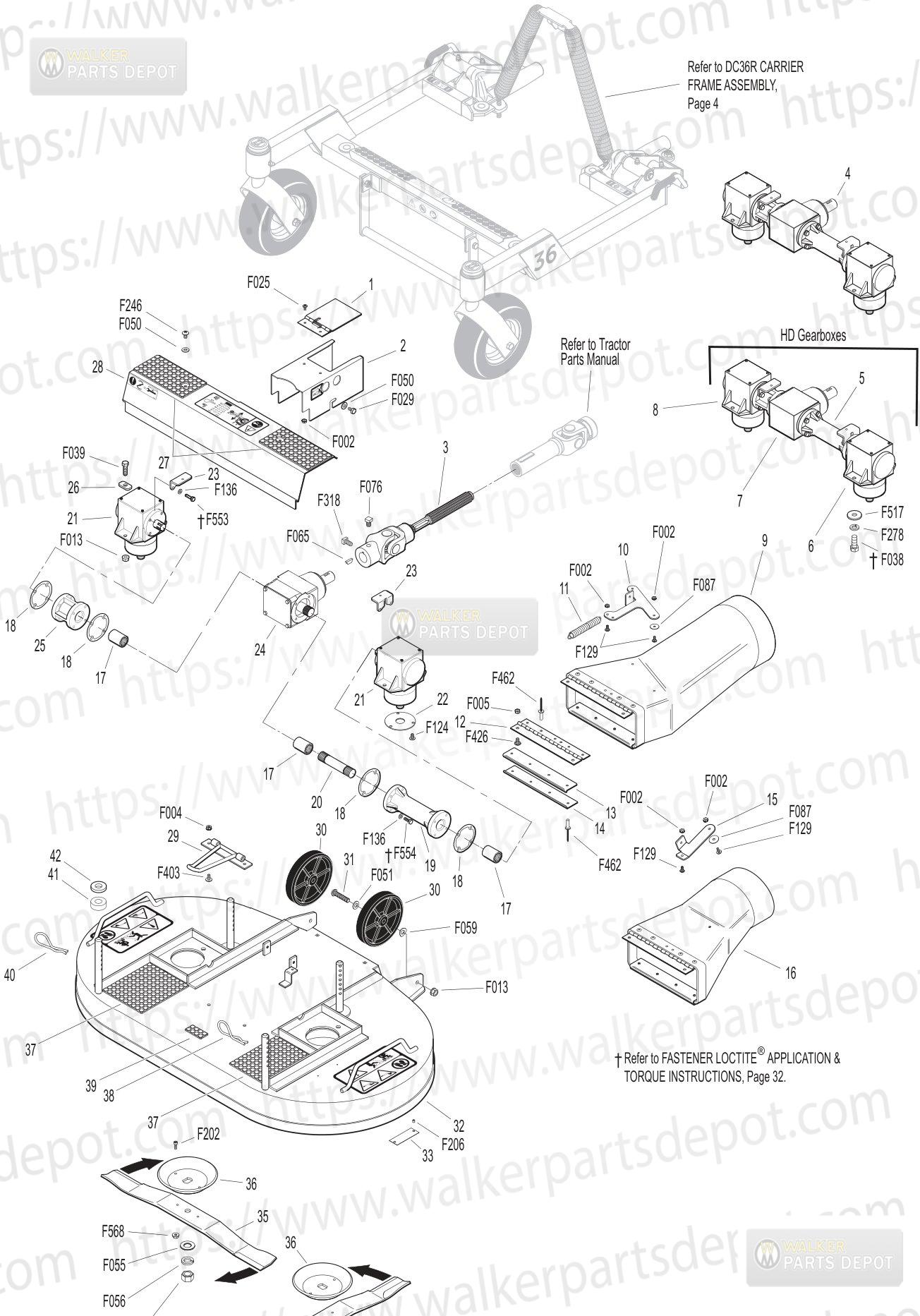

PARTS > DECKS MANUALS > 2020-06-30, 5000-54 > DC36R Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8618-1	Cover PTO Shaft Guard	$21.27	Add to Cart
2	8619	PTO Shaft Guard	$19.57	Add to Cart
	8618	SU8618 10 PTO Shaft Guard Assembly	$40.91	Add to Cart
3	5285-5	UJoint Shaft90 Spline Keyed	$290.01	Add to Cart
4	6704-54	DC36R Gearbox Tube Assembly Woodruff Key	$1,202.00	Add to Cart
5	6711-1	HD Gearbox and Tube Assembly (Includes Items # 6-8, 17-20, 23, 25,
6	5053-9	HD Gearbox 112 CWCW	$469.56	Add to Cart
7	5051-5	HD Tee Gearbox 11 CWCWCCW	$516.39	Add to Cart
8	5052-9	HD Gearbox 112 CCWCCW	$468.72	Add to Cart
9	5794	NR Dischg Chute WO Spg Mnt 612 Dia	$83.58	Add to Cart
	5794-1	Discharge Chute WSpg Mnt	$112.35	Add to Cart
10	8678	Spring Mount Chute	$10.13	Add to Cart
11	8677	Extension Spring 1x6116	$11.99	Add to Cart
12	5726	Chute Hinge 2x8	$7.75	Add to Cart
13	5755-2	Chute LipTop	$5.33	Add to Cart
14	5755-3	Chute LipBottom	$5.33	Add to Cart
15	8678-4	Spring Mount, Chute
16	5794-3	Discharge Chute WSpring Mnt	$97.92	Add to Cart
17	6054	Spline Coupling	$12.09	Add to Cart
18	P007	Gasket Cap P788030	$2.70	Add to Cart
19	5065	Conn Tube 7 11 16	$52.98	Add to Cart
20	6733-4	Connecting Shaft5516	$42.94	Add to Cart
21	5052-11	Blade Drive GearboxLH 112	$309.54	Add to Cart
22	5706-4	Seal Protector Plate	$4.81	Add to Cart
23	5704-1	Gearbox Cover Support	$9.55	Add to Cart
24	5051-2	Tee GearboxKeyed 78 Dia Shaft	$284.55	Add to Cart
25	5060	Connector Tube 2 5 16	$48.73	Add to Cart
26	5052-3	1375x750x187 Washer	$3.84	Add to Cart
27	5747-11	Rubber Mat 3x6	$7.64	Add to Cart
28	5746-6	36 Gearbox Cover	$70.52	Add to Cart
29	8670	TiltUp Hook	$34.85	Add to Cart
30	5162-12	Roller Wheel 5Poly	$17.37	Add to Cart
31	8490	Roller Wheel Axle Bolt	$5.80	Add to Cart
32	5710-6	DC36R Deck Housing	$1,088.00	Add to Cart
33	NS	Deck Serial Number Plate
34	5705-36	Blade 19RH Rotation	$27.06	Add to Cart
35	5705-35	Blade 19LH Rotation	$27.06	Add to Cart
36	5706	Blade Hub Trash Guard	$37.05	Add to Cart
37	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
38	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
39	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
40	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
41	7434-1	Washer 138x5812 Thick Rubber	$2.95	Add to Cart
42	5727-1	Washer Shim 58ID	$4.25	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F018	5818 Hex Nut	$1.66	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F055	58 SAE Washer	$0.65	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F065	316x34 Woodruff Key 606	$2.18	Add to Cart
	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
	F087	10x78 Fender Washer	$0.65	Add to Cart
	F124	1032x38 Taptite MS	$0.36	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F318	3816x34 SQH Set Screw	$0.74	Add to Cart
	F403	1420x12 PTHMS SS	$1.18	Add to Cart
	F426	1420x12 Carriage Bolt	$0.50	Add to Cart
	F462	316x468 010 SemiTube Rivet	$0.34	Add to Cart
	F517	Washer 38x118x18	$1.58	Add to Cart
	F553	1420x1 Hex Bolt WLoctite	$0.92	Add to Cart
	F554	SU558911420x78 Hex Bolt WLoctite	$0.65	Add to Cart
	F568	1024 Flange Top Lock Nut	$1.56	Add to Cart
