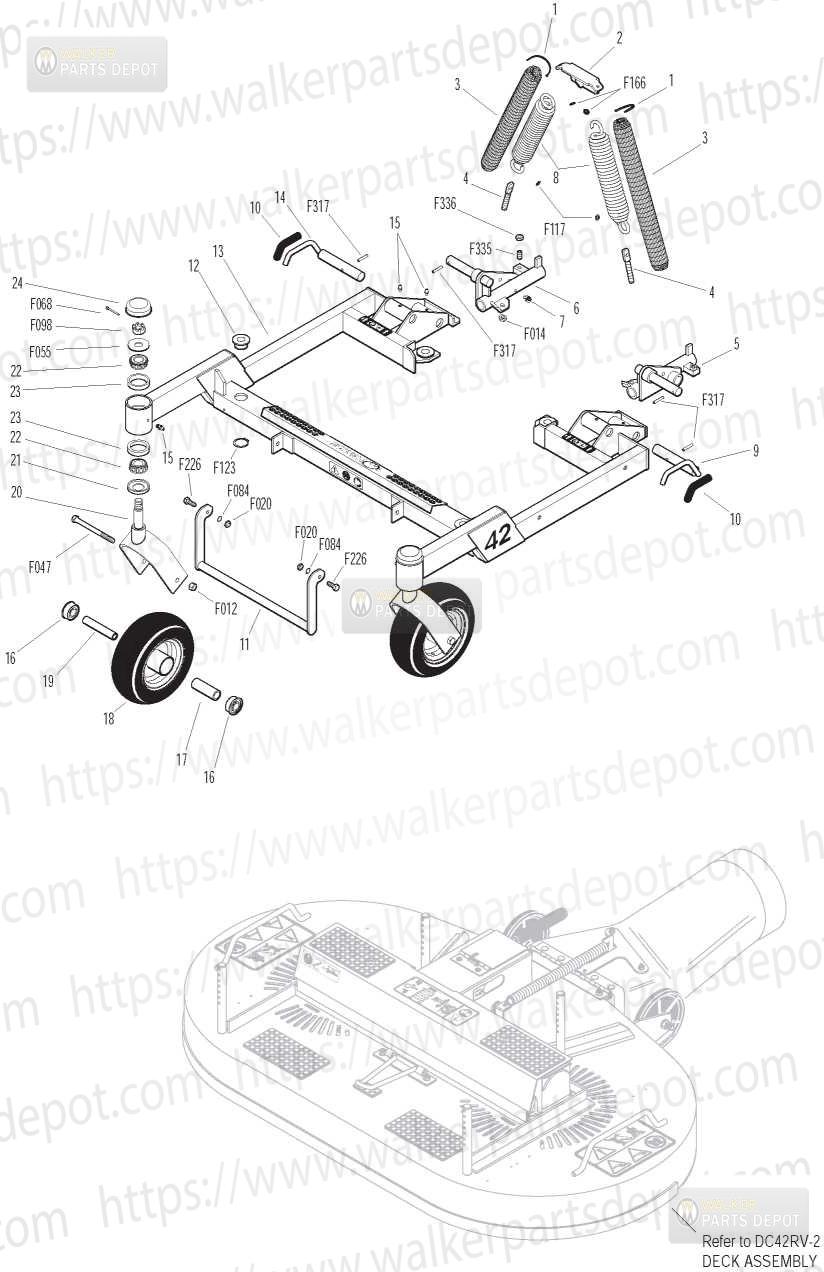

PARTS > DECKS MANUALS > 2014-06-18, 5000-21 European > DC42RV-2 Carrier Frame Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5975-3	Cable Tie 50x7	$0.36	Add to Cart
2	5744-1	Spring Clip Bracket	$15.81	Add to Cart
3	5743-1	Spring Cover	$13.40	Add to Cart
4	5743-4	Eye Bolt 3816x234	$8.21	Add to Cart
5	8466-10	NR 4248E Pivot MountLHAdj	$50.89	Add to Cart
6	8466-20	NR 4248E Pivot MountRHAdj	$51.08	Add to Cart
7	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
8	5743-8	Ext Spring 112x734 Red Spring	$24.02	Add to Cart
9	8674-11	Lever Deck LockLH	$14.86	Add to Cart
10	7406-1	Handle GripRed	$3.02	Add to Cart
11	8669-5	DGHS48R Lift Handle	$23.61	Add to Cart
12	5740-2	Deck Pin Bushing 58	$3.36	Add to Cart
13	8660-24	42RRV Carrier Frame Tapered Bearings	$637.77	Add to Cart
	8660-29	42" Carrier Frame W/Forks (Includes Items # 20-22, 24, F055, F068 & F098)
14	8674-10	Lever Deck LockRH	$14.86	Add to Cart
15	5830	Grease Fitting 1428	$2.47	Add to Cart
16	5714-8	Bearing	$12.36	Add to Cart
17	5714-9	NR Spacer Tube	$16.37	Add to Cart
18	5715-14	Caster Wheel No Flat 8x3 00 4 Without Axle Spacer Tube	$63.21	Add to Cart
	5715-16	Caster Wheel TireNo Flat 8x 3004	$51.26	Add to Cart
	5715-13	Caster Wheel Pnue 8x3 00 4 Without Axle Spacer Tube	$65.54	Add to Cart
	5715-10	Tire Pneu 8x3 00 4	$33.65	Add to Cart
	5715-9	Tire Tube Pneumatic 2802504	$25.70	Add to Cart
19	5714-6	Axle Spacer Tube	$13.84	Add to Cart
20	5770-1	Caster Wheel Fork02	$57.41	Add to Cart
21	8768-1	Seal 134x118	$6.70	Add to Cart
22	8037	Bearing Cone 34ID	$12.09	Add to Cart
23	8769-1	Bearing Cup134x1716	$7.72	Add to Cart
24	8769-9	Dust Cap Deck Caster	$5.60	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F047	3816x412 Hex Bolt	$3.12	Add to Cart
	F055	58 SAE Washer	$0.65	Add to Cart
	F068	18x1 Cotter Pin	$0.18	Add to Cart
	F084	516 Wave Spring Washer	$1.58	Add to Cart
	F098	5818 Slotted Hex Nut	$3.50	Add to Cart
	F117	Retainer Ringfor 57436	$0.58	Add to Cart
	F123	1 External Snap Ring	$1.27	Add to Cart
	F166	Retainer Ring	$0.18	Add to Cart
	F226	51618x78 Hex Bolt	$0.78	Add to Cart
	F317	316x1 Split Spring Pin	$0.50	Add to Cart
	F335	3816x78 Set ScrewSS	$2.71	Add to Cart
	F336	3816 Jam Nut	$0.34	Add to Cart
