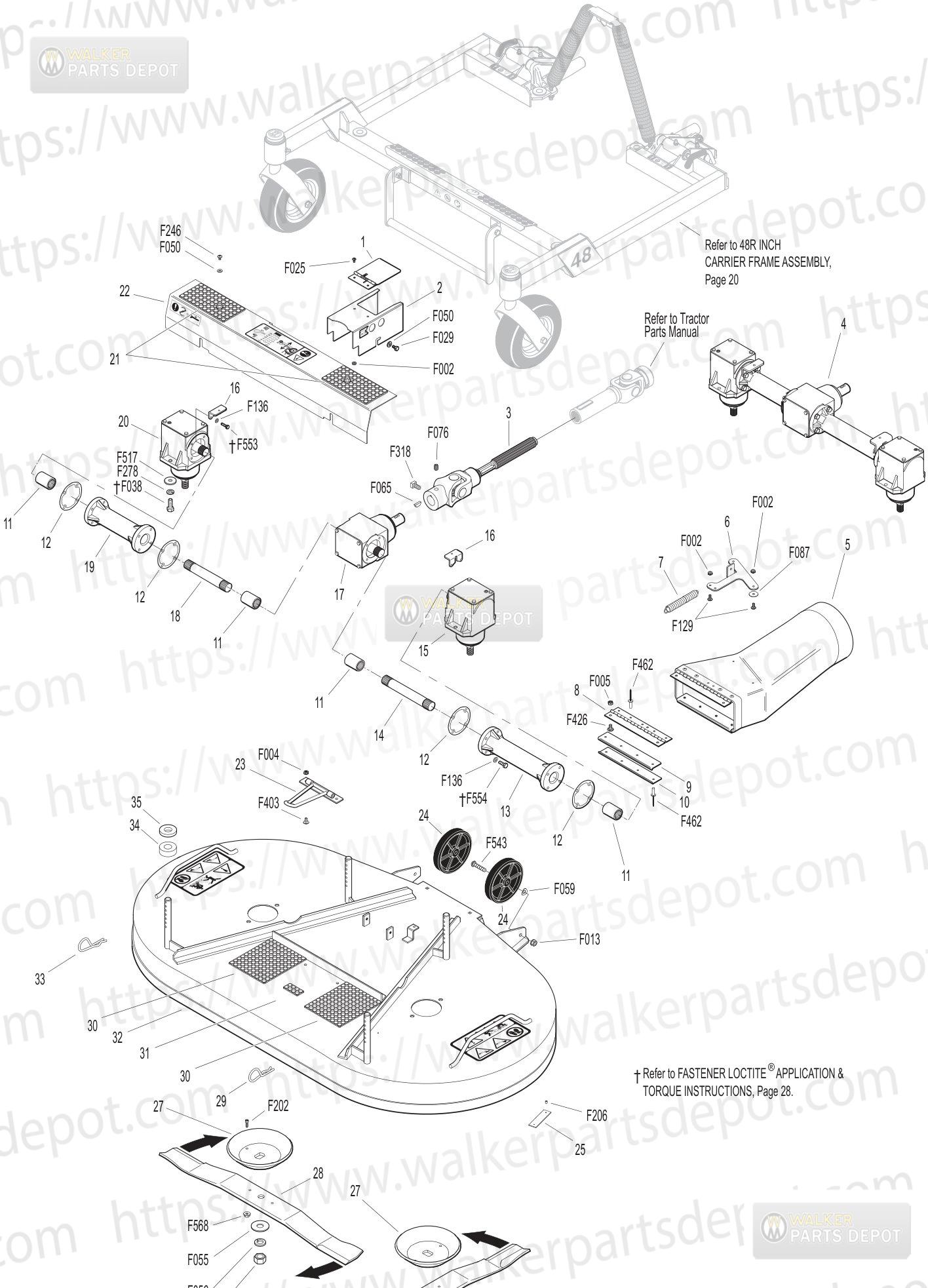

PARTS > DECKS MANUALS > 2019-11-19, 5000-47 > DC48R Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8618-1	Cover PTO Shaft Guard	$21.27	Add to Cart
2	8619	PTO Shaft Guard	$19.57	Add to Cart
	8618	SU8618 10 PTO Shaft Guard Assembly	$40.91	Add to Cart
3	7285-5	UJoint ShaftSplined Keyed	$313.32	Add to Cart
4	6711-9	DC48RV GearboxTube Assembly HD ProGear	$1,864.00	Add to Cart
5	5794	NR Dischg Chute WO Spg Mnt 612 Dia	$83.58	Add to Cart
	5794-1	Discharge Chute WSpg Mnt	$112.35	Add to Cart
6	8678	Spring Mount Chute	$10.13	Add to Cart
7	8677	Extension Spring 1x6116	$11.99	Add to Cart
8	5726	Chute Hinge 2x8	$7.75	Add to Cart
9	5755-2	Chute LipTop	$5.33	Add to Cart
10	5755-3	Chute LipBottom	$5.33	Add to Cart
11	6054	Spline Coupling	$12.09	Add to Cart
12	P007	Gasket Cap P788030	$2.70	Add to Cart
13	5066	Connector Tube 9 5 16	$49.21	Add to Cart
14	6733-6	Connecting Shaft 7	$38.57	Add to Cart
15	5053-13	HD Gearbox 11CWCW	$482.79	Add to Cart
16	5704-1	Gearbox Cover Support	$9.55	Add to Cart
17	7751-18	HD Tee Gearbox ExtKeyed 121 Input CWCCWCW	$592.41	Add to Cart
18	6733-2	Connecting Shaft 418	$41.27	Add to Cart
19	5061	Connector Tube 6 11 16	$44.21	Add to Cart
20	5052-13	HD Gearbox 11 CCWCCW	$488.88	Add to Cart
21	5747-12	Rubber Mat 3x6	$6.74	Add to Cart
22	7785-3	NR 48 Gearbox Cover02	$74.03	Add to Cart
23	8670-9	Tilt Up Hook	$33.15	Add to Cart
24	5162-12	Roller Wheel 5Poly	$17.37	Add to Cart
25	NS	Deck Serial Number
26	7705-2	Blade 25LH Rotation	$37.09	Add to Cart
	7705-3	48GHS Blade Set WHubs	$143.96	Add to Cart
27	5706	Blade Hub Trash Guard	$37.05	Add to Cart
28	7705-1	Blade 25 RH Rotation	$37.09	Add to Cart
29	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
30	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
31	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
32	7702-6	DGHS48R Deck Housing	$1,327.42	Add to Cart
33	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
34	7434-1	Washer 138x5812 Thick Rubber	$2.95	Add to Cart
35	5727-1	Washer Shim 58ID	$4.25	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F018	5818 Hex Nut	$1.66	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F055	58 SAE Washer	$0.65	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F065	316x34 Woodruff Key 606	$2.18	Add to Cart
	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
	F087	10x78 Fender Washer	$0.65	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F318	3816x34 SQH Set Screw	$0.74	Add to Cart
	F403	1420x12 PTHMS SS	$1.18	Add to Cart
	F426	1420x12 Carriage Bolt	$0.50	Add to Cart
	F462	316x468 010 SemiTube Rivet	$0.34	Add to Cart
	F517	Washer 38x118x18	$1.58	Add to Cart
	F543	SU8490 3816x112 BH Cap Screw	$4.99	Add to Cart
	F553	1420x1 Hex Bolt WLoctite	$0.92	Add to Cart
	F554	SU558911420x78 Hex Bolt WLoctite	$0.65	Add to Cart
	F568	1024 Flange Top Lock Nut	$1.56	Add to Cart
