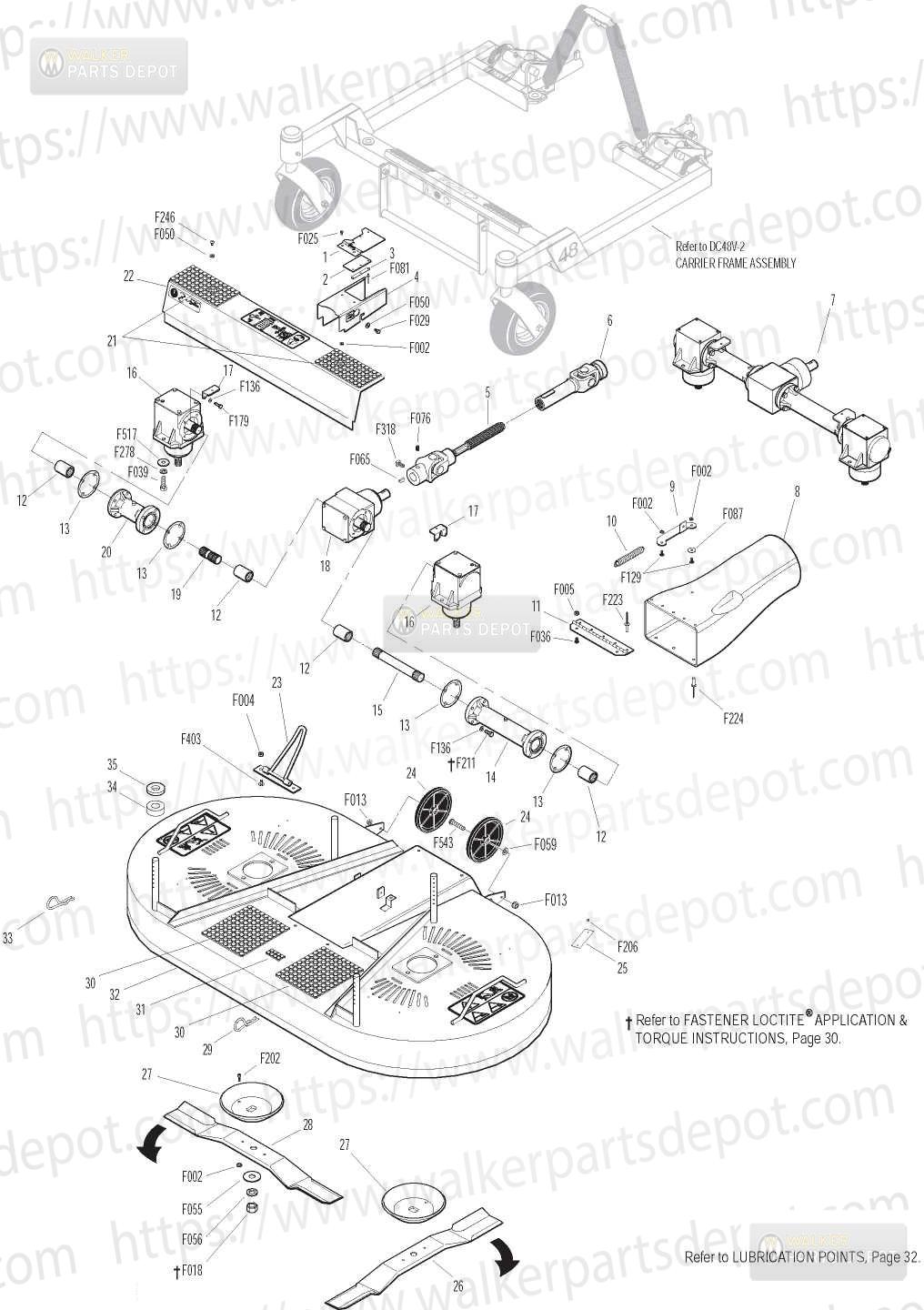

PARTS > DECKS MANUALS > 2014-06-18, 5000-21 European > DC48V-2 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8618-2	NR 4248E CoverPTO Shft Grd	$42.53	Add to Cart
2	5161-10	Rubber Flap	$6.72	Add to Cart
3	8620-30	Backing Plate Flap	$5.11	Add to Cart
4	8561-4	48E PTO Shaft Guard	$15.38	Add to Cart
	8560-1	48E PTO Shaft Guard Assy	$68.67	Add to Cart
5	7285-5	UJoint ShaftSplined Keyed	$313.32	Add to Cart
6	7275-16	UJnt Tube AssySpline 10 OAL	$217.77	Add to Cart
7	6704-46	HD Gearbox & Tube Assembly, Keyed (Includes Items # 12-20)
8	8494	4248E Dschrge Chute WSpring Mnt 525x825	$129.26	Add to Cart
9	8489	4248E Spring MountChute	$7.99	Add to Cart
10	8677	Extension Spring 1x6116	$11.99	Add to Cart
11	8488	Chute Hinge 2x8	$9.12	Add to Cart
12	6054	Spline Coupling	$12.09	Add to Cart
13	P007	Gasket Cap P788030	$2.70	Add to Cart
14	5067	SU50672 48E Cntr Tube 1158	$53.72	Add to Cart
15	6733-7	48E Cnnctng Shaft918	$44.88	Add to Cart
16	5052-7	(NR)42/48E Blade Drv Grbx/LH Cast Iron	$240.11	Add to Cart
17	5704-1	Gearbox Cover Support	$9.55	Add to Cart
18	7751-13	(NR)Tee Gearbox- Keyed (1.2:1 ) HD	$260.40	Add to Cart
19	6733-1	Connecting Shaft 2	$32.12	Add to Cart
20	5062	Connector Tube 4 3 8	$37.93	Add to Cart
21	5747-12	Rubber Mat 3x6	$6.74	Add to Cart
22	8559-3	48E Gearbox CoverBeg02	$44.48	Add to Cart
23	8670-9	Tilt Up Hook	$33.15	Add to Cart
24	5162-11	"Roller Wheel (5""Poly)"	$9.05	Add to Cart
25	NS	Deck Serial Number Plate
26	7705-1	Blade 25 RH Rotation	$37.09	Add to Cart
27	5706	Blade Hub Trash Guard	$37.05	Add to Cart
28	7705-2	Blade 25LH Rotation	$37.09	Add to Cart
	7705-3	48GHS Blade Set WHubs	$143.96	Add to Cart
29	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
30	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
31	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
32	7702-15	48 GHS Deck Housing (Includes Items # 30 & 31)
33	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
34	7434-1	Washer 138x5812 Thick Rubber	$2.95	Add to Cart
35	5727-1	Washer Shim 58ID	$4.25	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F018	5818 Hex Nut	$1.66	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F036	1420x12 SBH Screw	$0.43	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F055	58 SAE Washer	$0.65	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F065	316x34 Woodruff Key 606	$2.18	Add to Cart
	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
	F081	AA45D Aluminum Pop Rivet	$0.34	Add to Cart
	F087	10x78 Fender Washer	$0.65	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F179	1420x1 Hex Bolt	$0.65	Add to Cart
	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F223	316x516 SemiTube Rivet	$0.44	Add to Cart
	F224	316x716 SemiTube Rivet	$0.34	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F318	3816x34 SQH Set Screw	$0.74	Add to Cart
	F403	1420x12 PTHMS SS	$1.18	Add to Cart
	F517	Washer 38x118x18	$1.58	Add to Cart
	F543	SU8490 3816x112 BH Cap Screw	$4.99	Add to Cart
