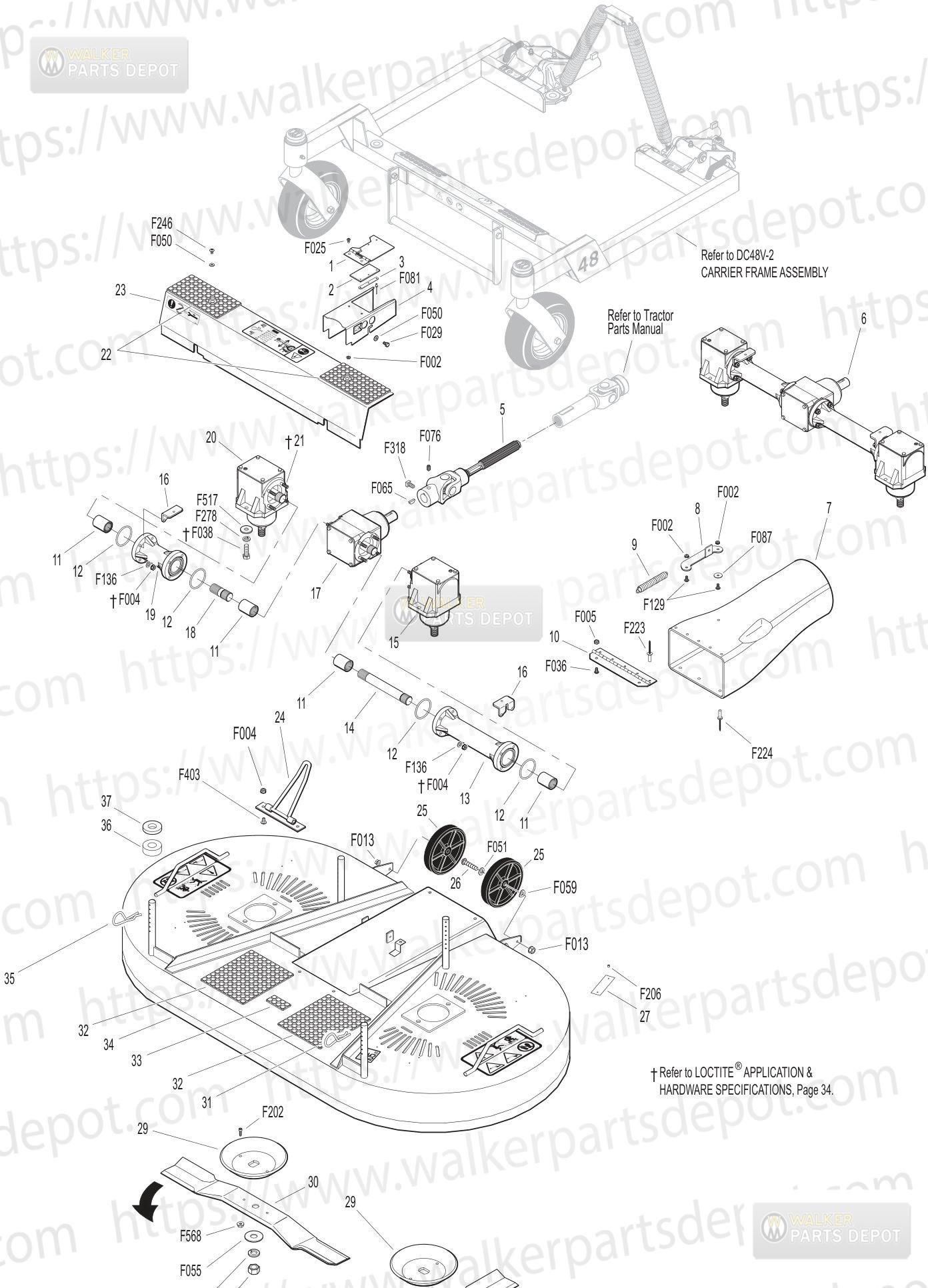

PARTS > DECKS MANUALS > 2022-08-22, 5000-70 > DC48V-2 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8618-2	NR 4248E CoverPTO Shft Grd	$42.53	Add to Cart
2	5161-10	Rubber Flap	$6.72	Add to Cart
3	8620-30	Backing Plate Flap	$5.11	Add to Cart
4	8561-4	48E PTO Shaft Guard	$15.38	Add to Cart
	8560-1	48E PTO Shaft Guard Assy	$68.67	Add to Cart
5	7285-5	UJoint ShaftSplined Keyed	$313.32	Add to Cart
6	6711-11	DC48V Gearbox Tube Assembly HD ProGear	$1,866.00	Add to Cart
7	8497-1	NR Discharge Chute CSSW	$126.32	Add to Cart
	8494	4248E Dschrge Chute WSpring Mnt 525x825	$129.26	Add to Cart
8	8489	4248E Spring MountChute	$7.99	Add to Cart
9	8677	Extension Spring 1x6116	$11.99	Add to Cart
10	8488	Chute Hinge 2x8	$9.12	Add to Cart
11	6054	Spline Coupling	$12.09	Add to Cart
12	5068-6	ORing 178x2	$0.80	Add to Cart
13	5067-2	48E Connector Tube 11655 Oring	$52.84	Add to Cart
14	6733-7	48E Cnnctng Shaft918	$44.88	Add to Cart
15	5052-14	HD Bld Dr Gearbox 11CCWCCW	$446.67	Add to Cart
16	5704-1	Gearbox Cover Support	$9.55	Add to Cart
17	7751-11	HD Tee GearboxKeyed 121	$520.59	Add to Cart
18	6733-1	Connecting Shaft 2	$32.12	Add to Cart
19	5062-2	Connector Tube 4405 Oring	$48.71	Add to Cart
20	5053-14	HD Bld Dr Gearbox 11 CWCW	$494.34	Add to Cart
21	5589-1	1420x112 Stud Threadlocker	$2.15	Add to Cart
22	5747-12	Rubber Mat 3x6	$6.74	Add to Cart
23	8559-3	48E Gearbox CoverBeg02	$44.48	Add to Cart
24	8670	TiltUp Hook	$34.85	Add to Cart
25	5162-12	Roller Wheel 5Poly	$17.37	Add to Cart
26	8490	Roller Wheel Axle Bolt	$5.80	Add to Cart
27	NS	Deck Serial Number
28	7705-1	Blade 25 RH Rotation	$37.09	Add to Cart
29	5706	Blade Hub Trash Guard	$37.05	Add to Cart
30	7705-2	Blade 25LH Rotation	$37.09	Add to Cart
	7705-3	48GHS Blade Set WHubs	$143.96	Add to Cart
31	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
32	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
33	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
34	7702-15	48 GHS Deck Housing (Includes Items # 32 & 33)
35	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
36	7434-1	Washer 138x5812 Thick Rubber	$2.95	Add to Cart
37	5727-1	Washer Shim 58ID	$4.25	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F018	5818 Hex Nut	$1.66	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F036	1420x12 SBH Screw	$0.43	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F055	58 SAE Washer	$0.65	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F065	316x34 Woodruff Key 606	$2.18	Add to Cart
	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
	F081	AA45D Aluminum Pop Rivet	$0.34	Add to Cart
	F087	10x78 Fender Washer	$0.65	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F223	316x516 SemiTube Rivet	$0.44	Add to Cart
	F224	316x716 SemiTube Rivet	$0.34	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F318	3816x34 SQH Set Screw	$0.74	Add to Cart
	F403	1420x12 PTHMS SS	$1.18	Add to Cart
	F517	Washer 38x118x18	$1.58	Add to Cart
	F568	1024 Flange Top Lock Nut	$1.56	Add to Cart
