Part Lookup Tool

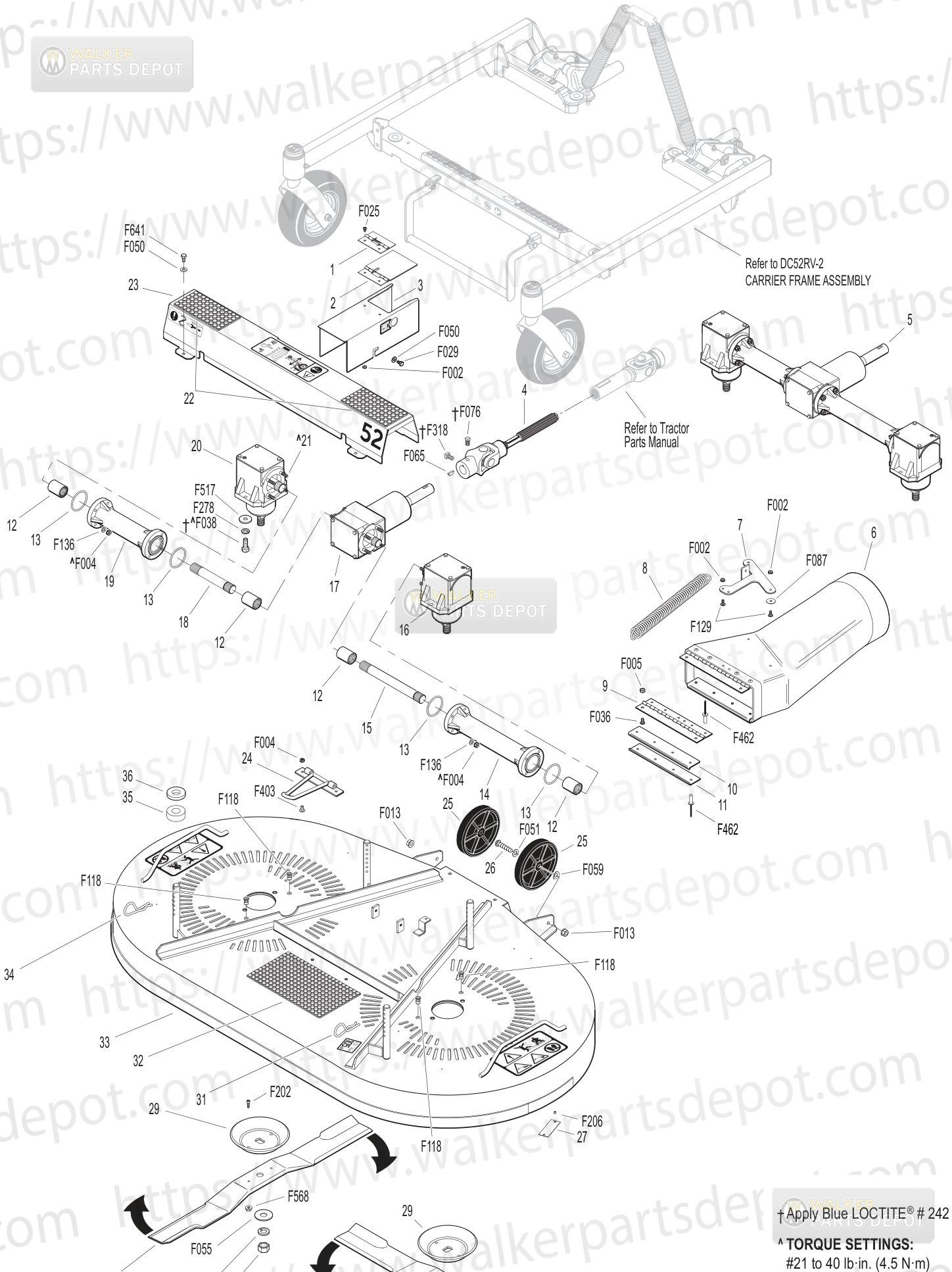

PARTS > DECKS MANUALS > 2024-05-22, 5000-84 > DC52RV-2 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8620-3	Hinge PTO Shaft Guard	$10.49	Add to Cart
2	8618-1	Cover PTO Shaft Guard	$21.27	Add to Cart
3	8618-11	PTO Shaft Guard AssyDC52	$53.42	Add to Cart
4	7285-5	UJoint ShaftSplined Keyed	$313.32	Add to Cart
5	6711-14	DC52RRV GearboxTube Assembly HD ProGear	$1,875.00	Add to Cart
6	5794	NR Dischg Chute WO Spg Mnt 612 Dia	$83.58	Add to Cart
	5794-1	Discharge Chute WSpg Mnt	$112.35	Add to Cart
7	8678	Spring Mount Chute	$10.13	Add to Cart
8	8677	Extension Spring 1x6116	$11.99	Add to Cart
9	5726	Chute Hinge 2x8	$7.75	Add to Cart
10	5755-2	Chute LipTop	$5.33	Add to Cart
11	5755-3	Chute LipBottom	$5.33	Add to Cart
12	6054	Spline Coupling	$12.09	Add to Cart
13	5068-6	ORing 178x2	$0.80	Add to Cart
14	5068-4	Connector Tube 10343 Oring	$58.59	Add to Cart
15	6733-10	Connecting Shaft8132	$54.60	Add to Cart
16	5053-13	HD Gearbox 11CWCW	$482.79	Add to Cart
17	7751-18	HD Tee Gearbox ExtKeyed 121 Input CWCCWCW	$592.41	Add to Cart
18	6733-4	Connecting Shaft5516	$42.94	Add to Cart
19	5065-2	Connector Tube 7718 Oring	$54.71	Add to Cart
20	5052-13	HD Gearbox 11 CCWCCW	$488.88	Add to Cart
21	5589-1	1420x112 Stud Threadlocker	$2.15	Add to Cart
22	5747-10	Rubber Mat NoHole 3x6	$5.10	Add to Cart
23	6786-4	DC52R Gearbox Cover	$66.91	Add to Cart
24	8670-17	TiltUp Hook	$39.38	Add to Cart
25	5162-12	Roller Wheel 5Poly	$17.37	Add to Cart
26	8490	Roller Wheel Axle Bolt	$5.80	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
27	NS	Deck Serial Number Plate
28	7705-35	Blade 27 LH	$39.42	Add to Cart
29	5706	Blade Hub Trash Guard	$37.05	Add to Cart
30	7705-34	Blade 27 RH	$39.42	Add to Cart
	7705-41	DC5248EOHD Blade Set WHubs	$146.79	Add to Cart
31	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
32	8786-10	Rubber Mat 6x1012	$15.07	Add to Cart
33	8810-11	DC52RV Deck Housing (Includes Items # 32 & F118)
34	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
35	7434-1	Washer 138x5812 Thick Rubber	$2.95	Add to Cart
36	5727-1	Washer Shim 58ID	$4.25	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F018	5818 Hex Nut	$1.66	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F036	1420x12 SBH Screw	$0.43	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F055	58 SAE Washer	$0.65	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F065	316x34 Woodruff Key 606	$2.18	Add to Cart
	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
	F087	10x78 Fender Washer	$0.65	Add to Cart
	F118	1420 Knurled Insert Grip Range 027 to 165	$2.06	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F318	3816x34 SQH Set Screw	$0.74	Add to Cart
	F403	1420x12 PTHMS SS	$1.18	Add to Cart
	F462	316x468 010 SemiTube Rivet	$0.34	Add to Cart
	F517	Washer 38x118x18	$1.58	Add to Cart
	F568	1024 Flange Top Lock Nut	$1.56	Add to Cart
	F641	1420x58 Hex Bolt SS	$0.68	Add to Cart
