Part Lookup Tool

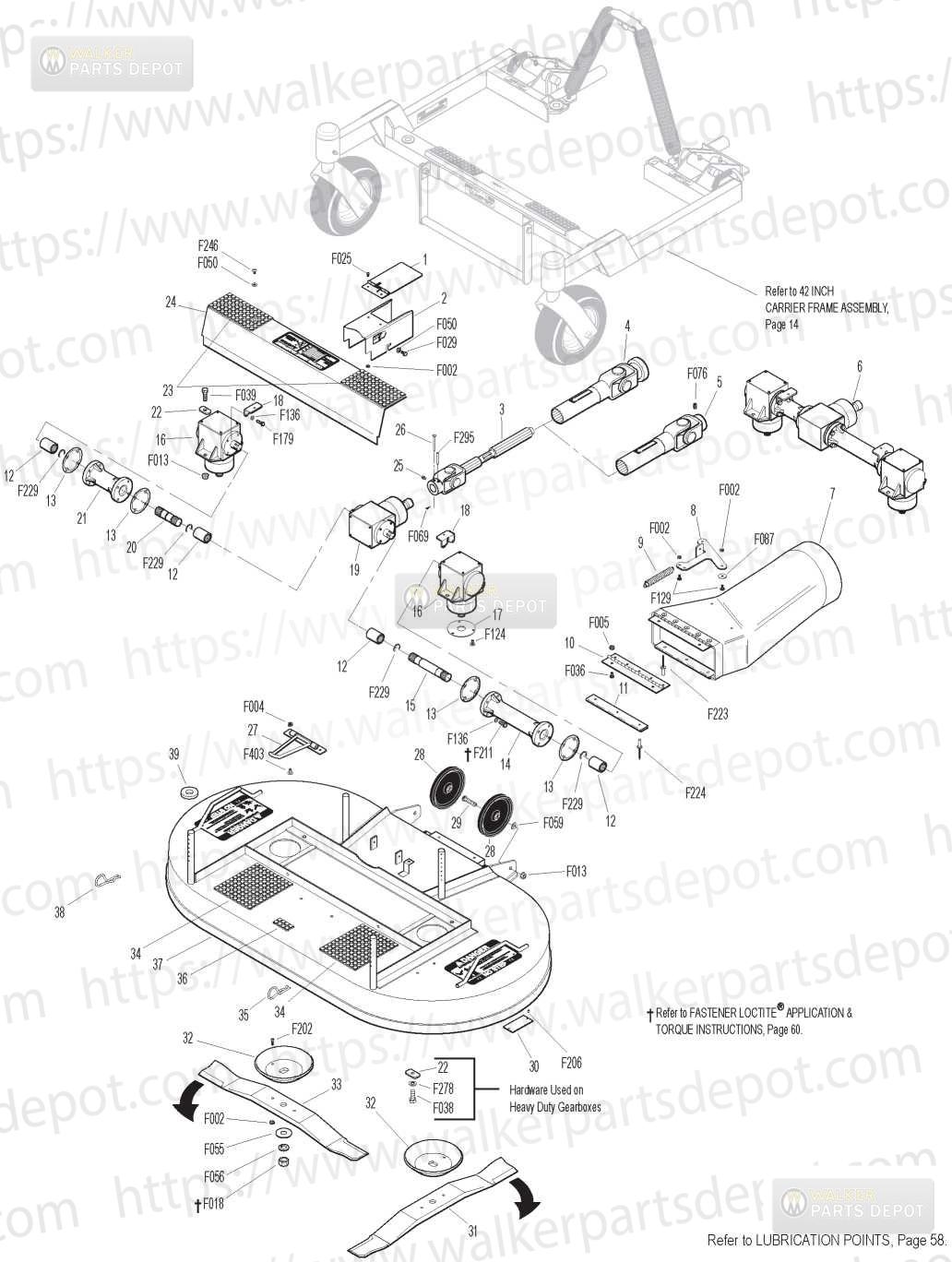

PARTS > DECKS MANUALS > 2008-08-01, 5000-19 > DGHS42 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8618-1	Cover PTO Shaft Guard	$21.27	Add to Cart
2	8619	PTO Shaft Guard	$19.57	Add to Cart
	8618	SU8618 10 PTO Shaft Guard Assembly	$40.91	Add to Cart
3	5285-15	UJnt Shaft90degSpline	$332.01	Add to Cart
4	7275-16	UJnt Tube AssySpline 10 OAL	$217.77	Add to Cart
5	5275-15	NR UJnt Tube95OALSpline	$154.77	Add to Cart
6	5704-50	42GHS Gearbox Tube Assy	$764.85	Add to Cart
	5704-8	42GHS Grbx Tube Assy HD	$934.63	Add to Cart
7	5794	NR Dischg Chute WO Spg Mnt 612 Dia	$83.58	Add to Cart
	5794-1	Discharge Chute WSpg Mnt	$112.35	Add to Cart
8	8678	Spring Mount Chute	$10.13	Add to Cart
9	8677	Extension Spring 1x6116	$11.99	Add to Cart
10	5726	Chute Hinge 2x8	$7.75	Add to Cart
11	5755	NR Chute Lower Lip	$5.76	Add to Cart
12	6054	Spline Coupling	$12.09	Add to Cart
13	P007	Gasket Cap P788030	$2.70	Add to Cart
14	5063	SU50632 Connector Tube 858	$41.84	Add to Cart
15	6732-3	Connecting Shaft (6-1/4)
16	5052-1	Gearbox LH Rotation	$280.77	Add to Cart
	5052-5	(NR) Gearbox- HD (LH Rotation)	$243.69	Add to Cart
17	5706-4	Seal Protector Plate	$4.81	Add to Cart
18	5704-1	Gearbox Cover Support	$9.55	Add to Cart
19	5051-16	Tee Gearbox Shear Less Flanges	$195.32	Add to Cart
	5051-6	Tee Gearbox Shear	$262.08	Add to Cart
20	6732-1	Connecting Shaft (2")
21	5062	Connector Tube 4 3 8	$37.93	Add to Cart
22	5052-3	1375x750x187 Washer	$3.84	Add to Cart
23	5747-11	Rubber Mat 3x6	$7.64	Add to Cart
24	5785-5	42 Gearbox Cover	$72.91	Add to Cart
25	5830	Grease Fitting 1428	$2.47	Add to Cart
26	8067-13	Shr Pin WCotter Set5 Softer Pin WX Mark	$11.90	Add to Cart
27	8670	TiltUp Hook	$34.85	Add to Cart
28	5162-11	"Roller Wheel (5""Poly)"	$9.05	Add to Cart
29	8490	Roller Wheel Axle Bolt	$5.80	Add to Cart
30	NS	Deck Serial Number Plate
31	5705-3	Blade 22RH Rotation	$35.60	Add to Cart
32	5706	Blade Hub Trash Guard	$37.05	Add to Cart
33	5705-4	Blade 22LH Rotation	$35.60	Add to Cart
	5705-8	42GHS Blade Set WHubs	$140.07	Add to Cart
34	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
35	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
36	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
37	5704-4	42GHS Deck Housing	$1,063.60	Add to Cart
38	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
39	5727-1	Washer Shim 58ID	$4.25	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F018	5818 Hex Nut	$1.66	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F036	1420x12 SBH Screw	$0.43	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F055	58 SAE Washer	$0.65	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
	F087	10x78 Fender Washer	$0.65	Add to Cart
	F124	1032x38 Taptite MS	$0.36	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F179	1420x1 Hex Bolt	$0.65	Add to Cart
	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F223	316x516 SemiTube Rivet	$0.44	Add to Cart
	F224	316x716 SemiTube Rivet	$0.34	Add to Cart
	F229	CClip 1316	$0.50	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F295	316x112 Split Spg Pin	$0.64	Add to Cart
	F403	1420x12 PTHMS SS	$1.18	Add to Cart
