Part Lookup Tool

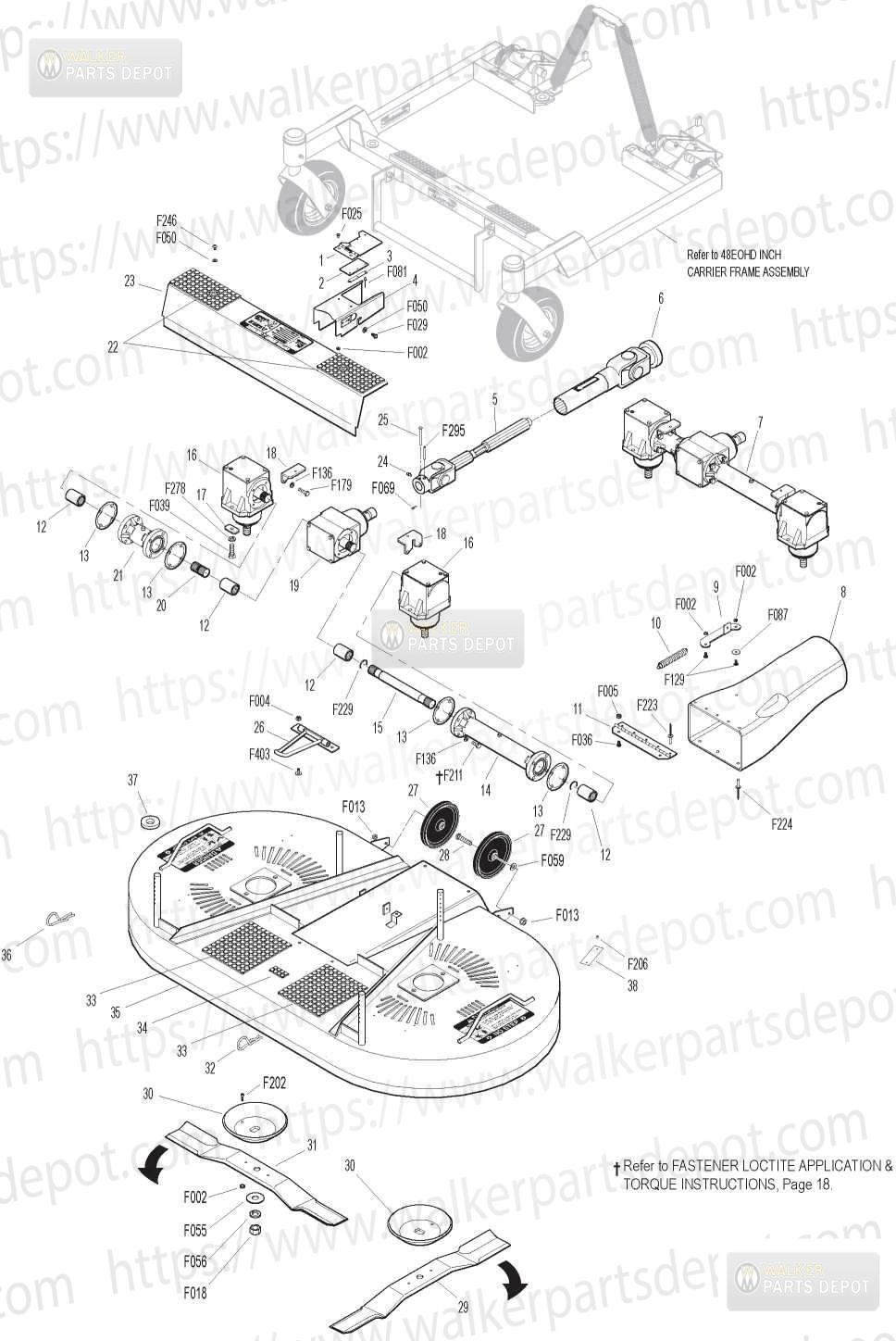

PARTS > DECKS MANUALS > 2006-03-01, 5000-18 European > DGHS48EOHD Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8618-2	NR 4248E CoverPTO Shft Grd	$42.53	Add to Cart
2	5161-10	Rubber Flap	$6.72	Add to Cart
3	8620-30	Backing Plate Flap	$5.11	Add to Cart
4	8561-3	48EOHD PTO Shaft Guard	$15.51	Add to Cart
	8560-1	48E PTO Shaft Guard Assy	$68.67	Add to Cart
5	7285-15	UJnt Shaft90degSpline	$334.74	Add to Cart
6	7275-16	UJnt Tube AssySpline 10 OAL	$217.77	Add to Cart
7	5704-23	48GHSEO Grbx-Tube Assy/HD	$937.38	Add to Cart
8	8494	4248E Dschrge Chute WSpring Mnt 525x825	$129.26	Add to Cart
9	8489	4248E Spring MountChute	$7.99	Add to Cart
10	8677	Extension Spring 1x6116	$11.99	Add to Cart
11	8488	Chute Hinge 2x8	$9.12	Add to Cart
12	6054	Spline Coupling	$12.09	Add to Cart
13	P007	Gasket Cap P788030	$2.70	Add to Cart
14	5068-3	Connector Tube 10 5 16	$55.50	Add to Cart
15	6732-10	Connecting Shaft (8-1/32)
16	5052-7	(NR)42/48E Blade Drv Grbx/LH Cast Iron	$240.11	Add to Cart
17	5052-3	1375x750x187 Washer	$3.84	Add to Cart
18	5704-1	Gearbox Cover Support	$9.55	Add to Cart
19	7751-5	Tee Gearbox Shear 1 2 1	$263.64	Add to Cart
20	6732-8	42E Cnnctng Shft 1516	$22.75	Add to Cart
21	5068	42E Cnctr Tube 3 11 16	$36.25	Add to Cart
22	5747-12	Rubber Mat 3x6	$6.74	Add to Cart
23	8559-6	48EOHD Gearbox Cover	$32.08	Add to Cart
24	5830	Grease Fitting 1428	$2.47	Add to Cart
25	8067-10	Shr Pin WCotter Set5	$11.89	Add to Cart
26	8670	TiltUp Hook	$34.85	Add to Cart
27	5162-11	"Roller Wheel (5""Poly)"	$9.05	Add to Cart
28	8490	Roller Wheel Axle Bolt	$5.80	Add to Cart
29	7705-18	Blade 27 RH Rotation	$24.16	Add to Cart
30	5706	Blade Hub Trash Guard	$37.05	Add to Cart
31	7705-17	Blade 27 LH Rotation	$24.16	Add to Cart
	7705-19	48EOHD Blade Set W Hub	$92.05	Add to Cart
32	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
33	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
34	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
35	8555-1	NR 48EOHD GHS Deck Housing	$752.61	Add to Cart
36	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
37	5727-1	Washer Shim 58ID	$4.25	Add to Cart
38	NS	Deck Serial Number Plate
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F018	5818 Hex Nut	$1.66	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F036	1420x12 SBH Screw	$0.43	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F055	58 SAE Washer	$0.65	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F081	AA45D Aluminum Pop Rivet	$0.34	Add to Cart
	F087	10x78 Fender Washer	$0.65	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F179	1420x1 Hex Bolt	$0.65	Add to Cart
	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F223	316x516 SemiTube Rivet	$0.44	Add to Cart
	F224	316x716 SemiTube Rivet	$0.34	Add to Cart
	F229	CClip 1316	$0.50	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F295	316x112 Split Spg Pin	$0.64	Add to Cart
	F403	1420x12 PTHMS SS	$1.18	Add to Cart
