Part Lookup Tool

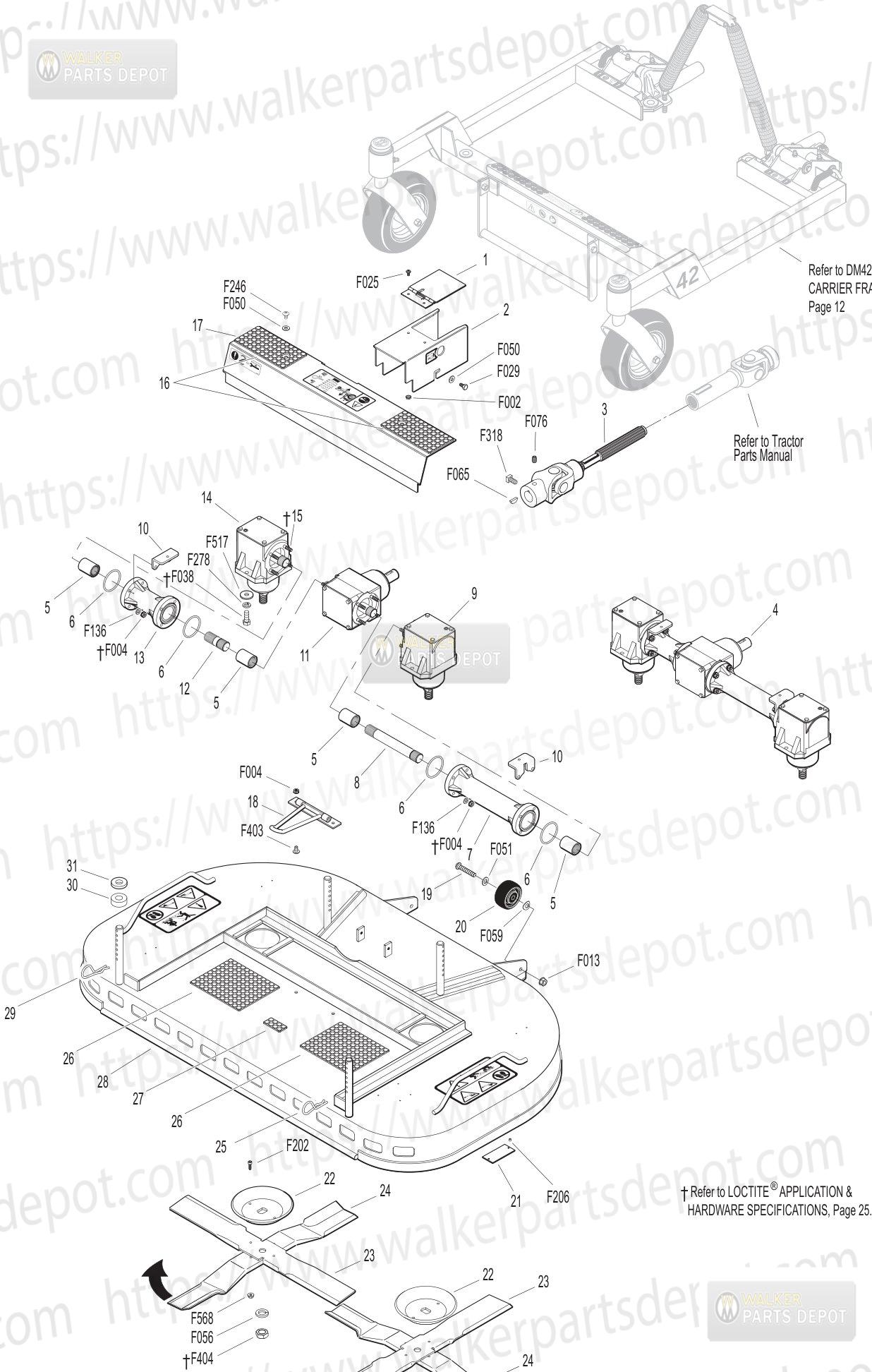

PARTS > DECKS MANUALS > 2023-10-03, 5000-75 > DM42B-2 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8618-1	Cover PTO Shaft Guard	$21.27	Add to Cart
2	8618-12	"PTO Shaft Guard Assembly "	$52.92	Add to Cart
3	7285-4	UJoint ShaftSplined Keyed	$234.15	Add to Cart
4	6711-7	DMDS42 Gearbox Tube Assembly HD ProGear	$1,772.00	Add to Cart
5	6054	Spline Coupling	$12.09	Add to Cart
6	5068-6	ORing 178x2	$0.80	Add to Cart
7	5063-2	Connector Tube 8655 Oring	$51.22	Add to Cart
8	6733-3	Connecting Shaft 614	$34.56	Add to Cart
9	5052-13	HD Gearbox 11 CCWCCW	$488.88	Add to Cart
10	5704-1	Gearbox Cover Support	$9.55	Add to Cart
11	5051-5	HD Tee Gearbox 11 CWCWCCW	$516.39	Add to Cart
12	6733-1	Connecting Shaft 2	$32.12	Add to Cart
13	5062-2	Connector Tube 4405 Oring	$48.71	Add to Cart
14	5053-3	HD Gearbox 11 CWCCW	$498.12	Add to Cart
15	5589-1	1420x112 Stud Threadlocker	$2.15	Add to Cart
16	5747-11	Rubber Mat 3x6	$7.64	Add to Cart
17	5785-5	42 Gearbox Cover	$72.91	Add to Cart
18	8670	TiltUp Hook	$34.85	Add to Cart
19	8490-1	Roller Wheel Axle Bolt	$3.10	Add to Cart
20	9772	Roller Wheel Assy 212	$6.50	Add to Cart
21	NS	Deck Serial Number
22	5706	Blade Hub Trash Guard	$37.05	Add to Cart
23	5705-11	Blade 22 Upper Mulching	$35.64	Add to Cart
24	5705-10	Blade 21 Lower Mulching	$34.65	Add to Cart
	5705-12	42DML Blade Set WHubs	$195.62	Add to Cart
25	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
26	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
27	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
28	5701-13	DML42B Deck Housing	$1,282.00	Add to Cart
29	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
30	7434-1	Washer 138x5812 Thick Rubber	$2.95	Add to Cart
31	5727-1	Washer Shim 58ID	$4.25	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F065	316x34 Woodruff Key 606	$2.18	Add to Cart
	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F318	3816x34 SQH Set Screw	$0.74	Add to Cart
	F403	1420x12 PTHMS SS	$1.18	Add to Cart
	F404	5818 Jam Nut	$1.30	Add to Cart
	F517	Washer 38x118x18	$1.58	Add to Cart
	F568	1024 Flange Top Lock Nut	$1.56	Add to Cart
