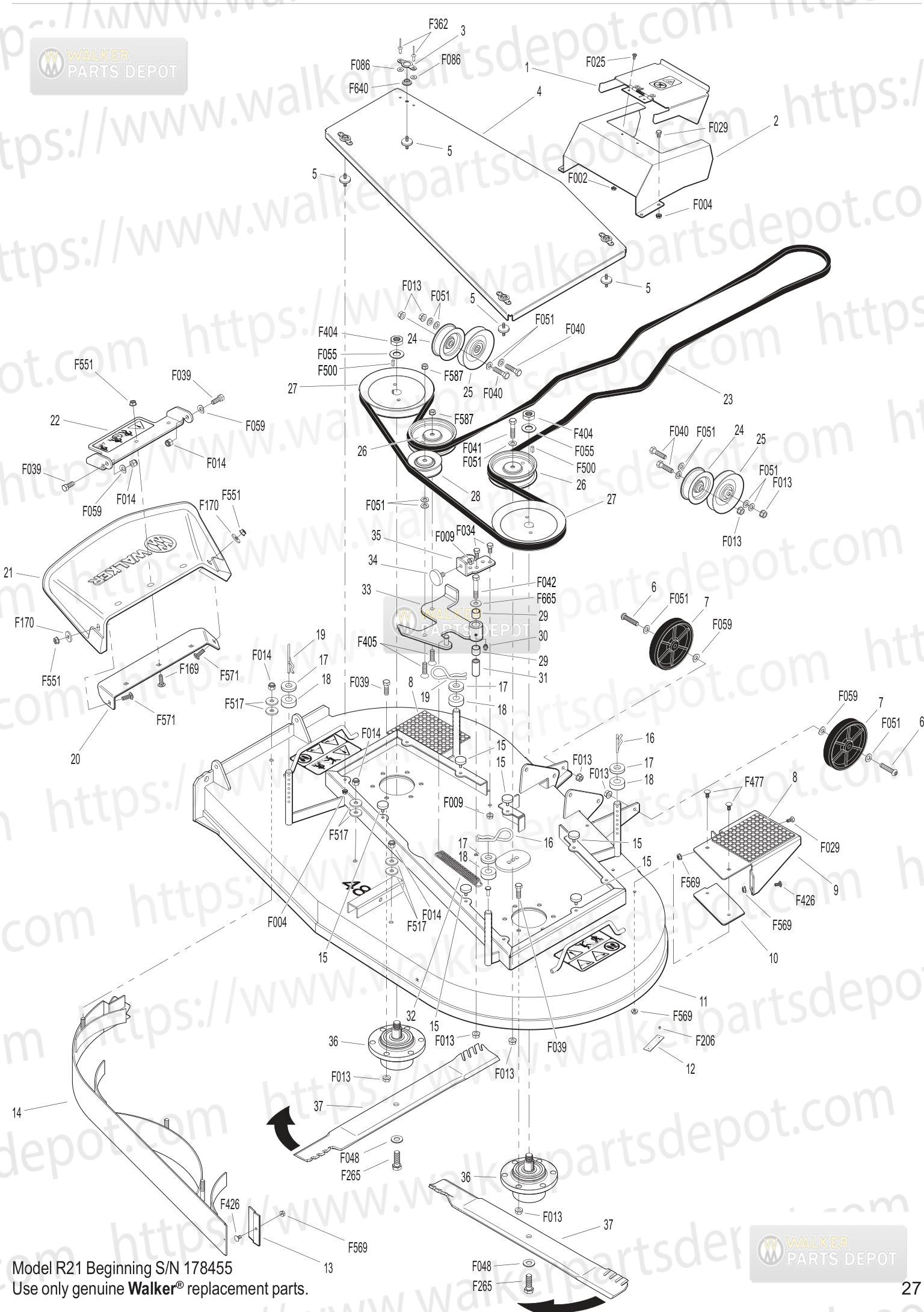

PARTS > MR MANUALS > 2023-11-27, 1000-7, Serial 178455-189148 > DM48-R Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	1620-2	Belt Drive Cover	$37.36	Add to Cart
2	1619-2	Drive Belt Guard 48	$37.66	Add to Cart
3	1701-58	Retaining Tab
4	1701-14	Deck Belt Cover (Includes Items # 3, F362 & F640)
5	7307-1	Shock Mount 10x25 Double Stud	$5.66	Add to Cart
6	8490	Roller Wheel Axle Bolt	$5.80	Add to Cart
7	5162-12	Roller Wheel 5Poly	$17.37	Add to Cart
8	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
9	1701-13	Deck Step, DS48-R (Includes Item # 8)
10	1701-12	Spacer Plate
11	1701-18	DSDM 48R Deck Housing	$1,303.00	Add to Cart
12	NS	Deck Serial Number Plate
13	1692-2	Baffle Retaining Clip	$17.46	Add to Cart
14	1692-47	Removable Mulch Baffle
15	7307-9	Pull Through Bumper	$1.67	Add to Cart
16	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
17	5727-1	Washer Shim 58ID	$4.25	Add to Cart
18	7434-1	Washer 138x5812 Thick Rubber	$2.95	Add to Cart
19	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
20	1709-5	Backup Plate	$25.98	Add to Cart
21	1709-3	Rubber ShieldMRDU	$46.29	Add to Cart
22	1709-6	Discharge Shield Frame	$29.00	Add to Cart
23	1731	Blade Drive BeltMR 48	$106.37	Add to Cart
24	5245-2	Idler Pulley 234	$21.01	Add to Cart
25	5247-2	VGroove Idler 4	$31.77	Add to Cart
26	7245-2	Idler Pulley	$33.88	Add to Cart
27	6240-23	Spindle Pulley 634B	$25.70	Add to Cart
28	4245	Idler Pulley 3A	$27.41	Add to Cart
29	7201-3	Fiberglide Bearing	$6.91	Add to Cart
30	5830	Grease Fitting 1428	$2.47	Add to Cart
31	7201-4	Inner Race 112	$11.75	Add to Cart
32	5221-1	Extension Spring 34x5	$8.06	Add to Cart
33	1701-19	Idler Arm (Includes Items # 29 & 30)
34	7844	Rubber Bumper 125x250	$4.06	Add to Cart
35	1701-16	Idler Stop
36	8052-5	Blade Spindle	$80.35	Add to Cart
37	7705-37	Blade 2438 Mulch	$34.41	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F041	3816x134 Hex Bolt	$1.87	Add to Cart
	F042	3816x214 Hex Bolt	$1.97	Add to Cart
	F048	12 SAE Washer	$0.50	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F055	58 SAE Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F086	10 SAE Washer	$0.18	Add to Cart
	F169	51618x1 Carriage Bolt	$0.79	Add to Cart
	F170	516x1x764 Flat Washer Zinc Plate	$1.75	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F265	1220x112 Hex Bolt	$2.62	Add to Cart
	F362	AA62D Alum Pop Rivet 316Dx1332L	$0.48	Add to Cart
	F404	5818 Jam Nut	$1.30	Add to Cart
	F405	3816x112 FHA Screw SS	$3.24	Add to Cart
	F426	1420x12 Carriage Bolt	$0.50	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
	F500	316x316x916 Key	$1.54	Add to Cart
	F517	Washer 38x118x18	$1.58	Add to Cart
	F551	51618 Flange Top Lock Nut	$1.06	Add to Cart
	F569	1420 Flange Top Lock Nut	$1.20	Add to Cart
	F571	51618x78 Carriage Bolt	$2.29	Add to Cart
	F587	3816 Top Lock Flange Nut Grade G	$1.25	Add to Cart
	F640	1/4-20, 7/8 Washer Free Spinning Nut
	F665	Washer 10x406x062	$2.10	Add to Cart
