Part Lookup Tool

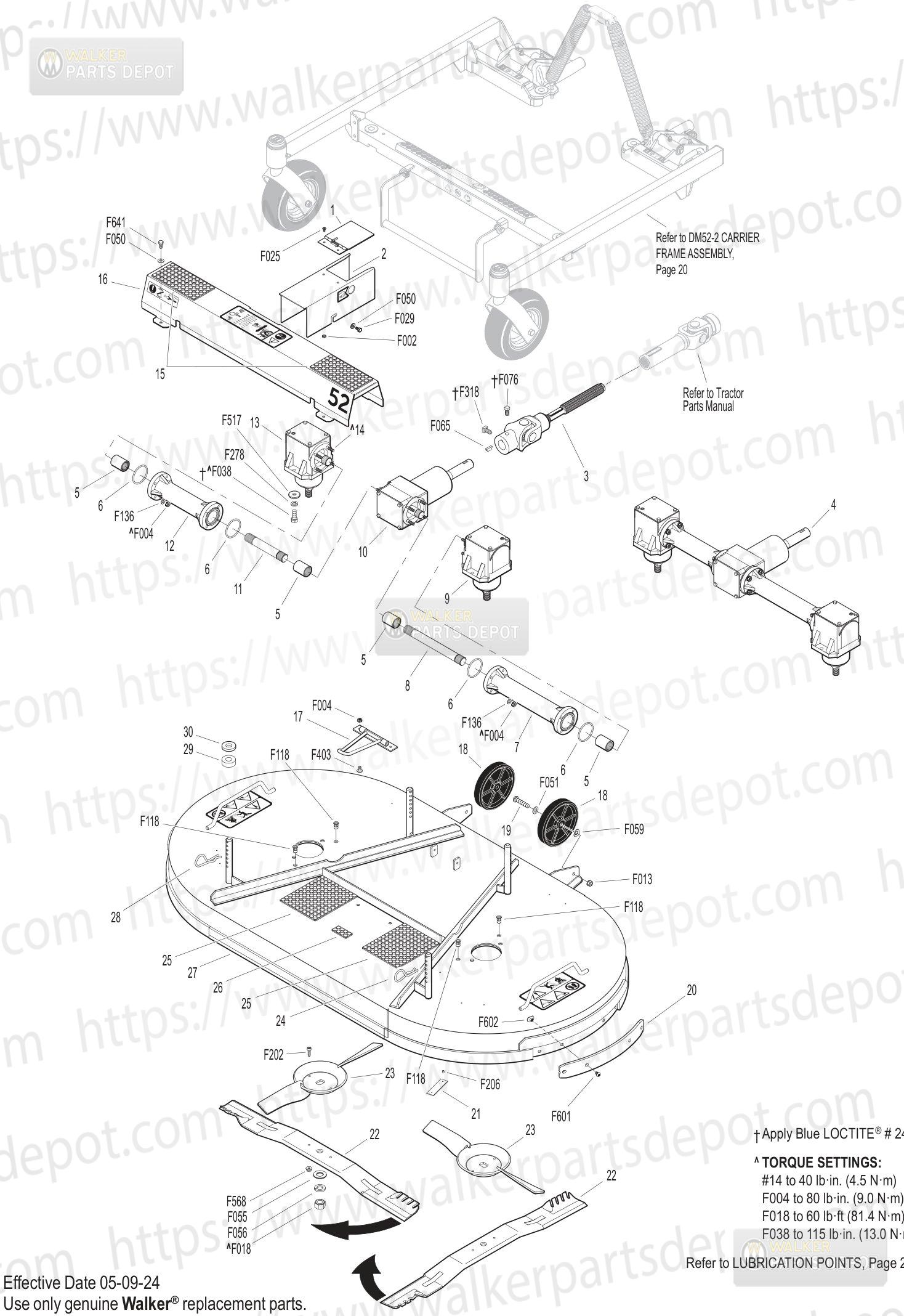

PARTS > DECKS MANUALS > 2024-05-14, 5000-83 > DM52-2 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8618-1	Cover PTO Shaft Guard	$21.27	Add to Cart
2	8618-11	PTO Shaft Guard AssyDC52	$53.42	Add to Cart
3	7285-5	UJoint ShaftSplined Keyed	$313.32	Add to Cart
4	6711-51	HD Gearbox and (Includes Items #
5	6054	Spline Coupling	$12.09	Add to Cart
6	5068-6	ORing 178x2	$0.80	Add to Cart
7	5068-4	Connector Tube 10343 Oring	$58.59	Add to Cart
8	6733-10	Connecting Shaft8132	$54.60	Add to Cart
9	5052-13	HD Gearbox 11 CCWCCW	$488.88	Add to Cart
10	7751-18	HD Tee Gearbox ExtKeyed 121 Input CWCCWCW	$592.41	Add to Cart
11	6733-4	Connecting Shaft5516	$42.94	Add to Cart
12	5065-2	Connector Tube 7718 Oring	$54.71	Add to Cart
13	5053-3	HD Gearbox 11 CWCCW	$498.12	Add to Cart
14	5589-1	1420x112 Stud Threadlocker	$2.15	Add to Cart
15	5747-10	Rubber Mat NoHole 3x6	$5.10	Add to Cart
16	6786-4	DC52R Gearbox Cover	$66.91	Add to Cart
17	8670-17	TiltUp Hook	$39.38	Add to Cart
18	5162-12	Roller Wheel 5Poly	$17.37	Add to Cart
19	8490	Roller Wheel Axle Bolt	$5.80	Add to Cart
20	7703-2	Replaceable Wear EdgeDM52	$32.96	Add to Cart
21	NS	Deck Serial Number
22	7705-33	Blade 27	$41.58	Add to Cart
	7705-46	DM52 Blade Set WHubs	$223.86	Add to Cart
23	5706-8	Mulch Blade Hub 16 Yellow Zinc	$73.21	Add to Cart
24	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
25	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
26	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
27	8810-12	DM52 Deck Housing SN220949	$1,512.00	Add to Cart
28	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
29	7434-1	Washer 138x5812 Thick Rubber	$2.95	Add to Cart
30	5727-1	Washer Shim 58ID	$4.25	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F018	5818 Hex Nut	$1.66	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F055	58 SAE Washer	$0.65	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F065	316x34 Woodruff Key 606	$2.18	Add to Cart
	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
	F118	1420 Knurled Insert Grip Range 027 to 165	$2.06	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F318	3816x34 SQH Set Screw	$0.74	Add to Cart
	F403	1420x12 PTHMS SS	$1.18	Add to Cart
	F517	Washer 38x118x18	$1.58	Add to Cart
	F568	1024 Flange Top Lock Nut	$1.56	Add to Cart
	F601	1420x38 Torx Button Head	$2.39	Add to Cart
	F602	1420x14 TNut 14 Barrel Height	$2.87	Add to Cart
	F641	1420x58 Hex Bolt SS	$0.68	Add to Cart
