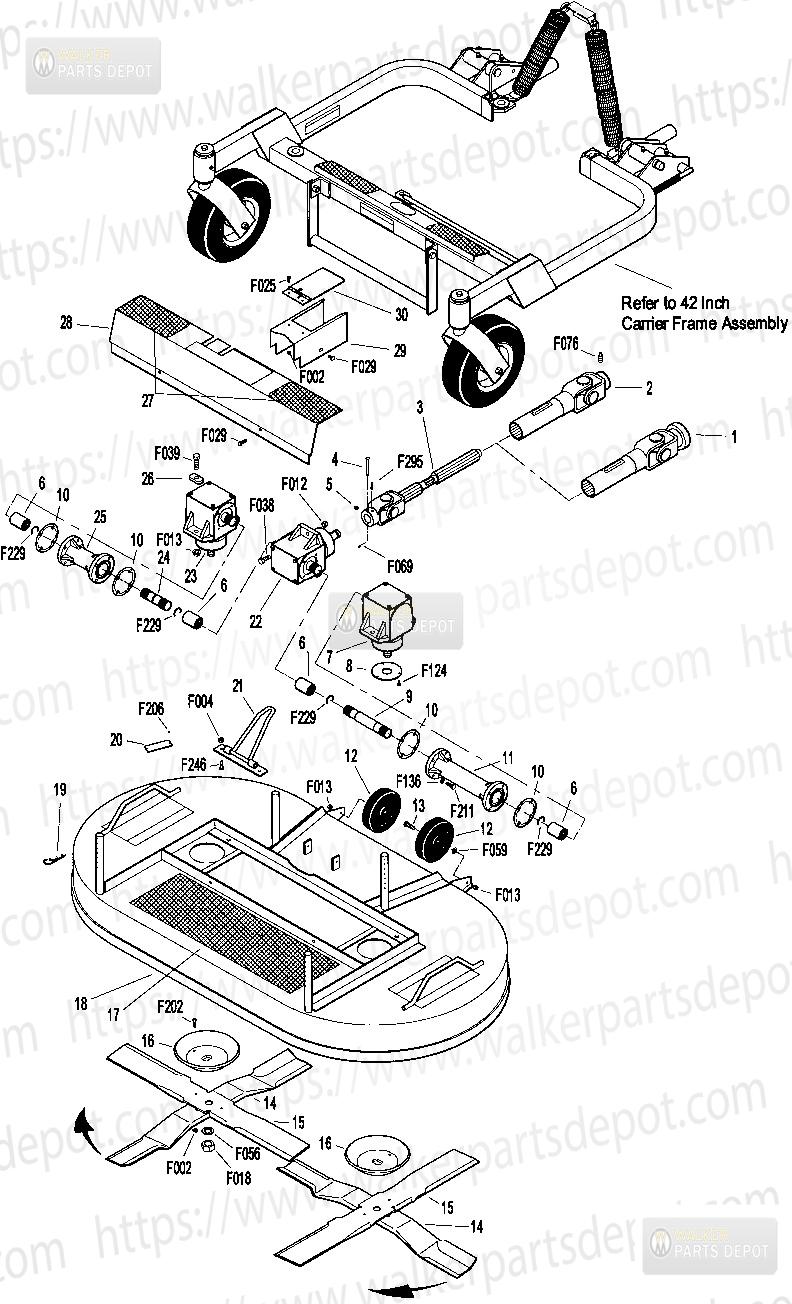

PARTS > DECKS MANUALS > 1998-07-24, 5000-6 > DML42 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7275-15	UJnt TubeSplineNT 925 OAL	$223.44	Add to Cart
2	5275-15	NR UJnt Tube95OALSpline	$154.77	Add to Cart
3	5285-15	UJnt Shaft90degSpline	$332.01	Add to Cart
4	8067-10	Shr Pin WCotter Set5	$11.89	Add to Cart
5	5830	Grease Fitting 1428	$2.47	Add to Cart
6	6054	Spline Coupling	$12.09	Add to Cart
7	5052-1	Gearbox LH Rotation	$280.77	Add to Cart
8	5706-4	Seal Protector Plate	$4.81	Add to Cart
9	6732-3	Connecting Shaft (6-1/4)
10	P007	Gasket Cap P788030	$2.70	Add to Cart
11	5063	SU50632 Connector Tube 858	$41.84	Add to Cart
12	5162-11	"Roller Wheel (5""Poly)"	$9.05	Add to Cart
13	8490	Roller Wheel Axle Bolt	$5.80	Add to Cart
14	5705-10	Blade 21 Lower Mulching	$34.65	Add to Cart
15	5705-11	Blade 22 Upper Mulching	$35.64	Add to Cart
	5705-12	42DML Blade Set WHubs	$195.62	Add to Cart
16	5706	Blade Hub Trash Guard	$37.05	Add to Cart
17	5747-1	Safety Tread (6x19)
18	5701-1	42DML Deck Housing	$877.38	Add to Cart
19	5775-2	Hitch Pin 6	$3.24	Add to Cart
20	NS	Deck Serial Number Plate
21	8670	TiltUp Hook	$34.85	Add to Cart
22	5051-15	Tee Gearbox- Shear (#075)	$234.57	Add to Cart
23	5053-1	Gearbox RH Rotation	$279.09	Add to Cart
24	6732-1	Connecting Shaft (2?)
25	5062	Connector Tube 4 3 8	$37.93	Add to Cart
26	5052-3	1375x750x187 Washer	$3.84	Add to Cart
27	5747-0	Safety Tread (3 x 6)
28	5785	42 Gearbox Cover	$62.73	Add to Cart
29	8619	PTO Shaft Guard	$19.57	Add to Cart
	8618	SU8618 10 PTO Shaft Guard Assembly	$40.91	Add to Cart
30	8618-1	Cover PTO Shaft Guard	$21.27	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F018	5818 Hex Nut	$1.66	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
	F124	1032x38 Taptite MS	$0.36	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F229	CClip 1316	$0.50	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F295	316x112 Split Spg Pin	$0.64	Add to Cart
