Part Lookup Tool

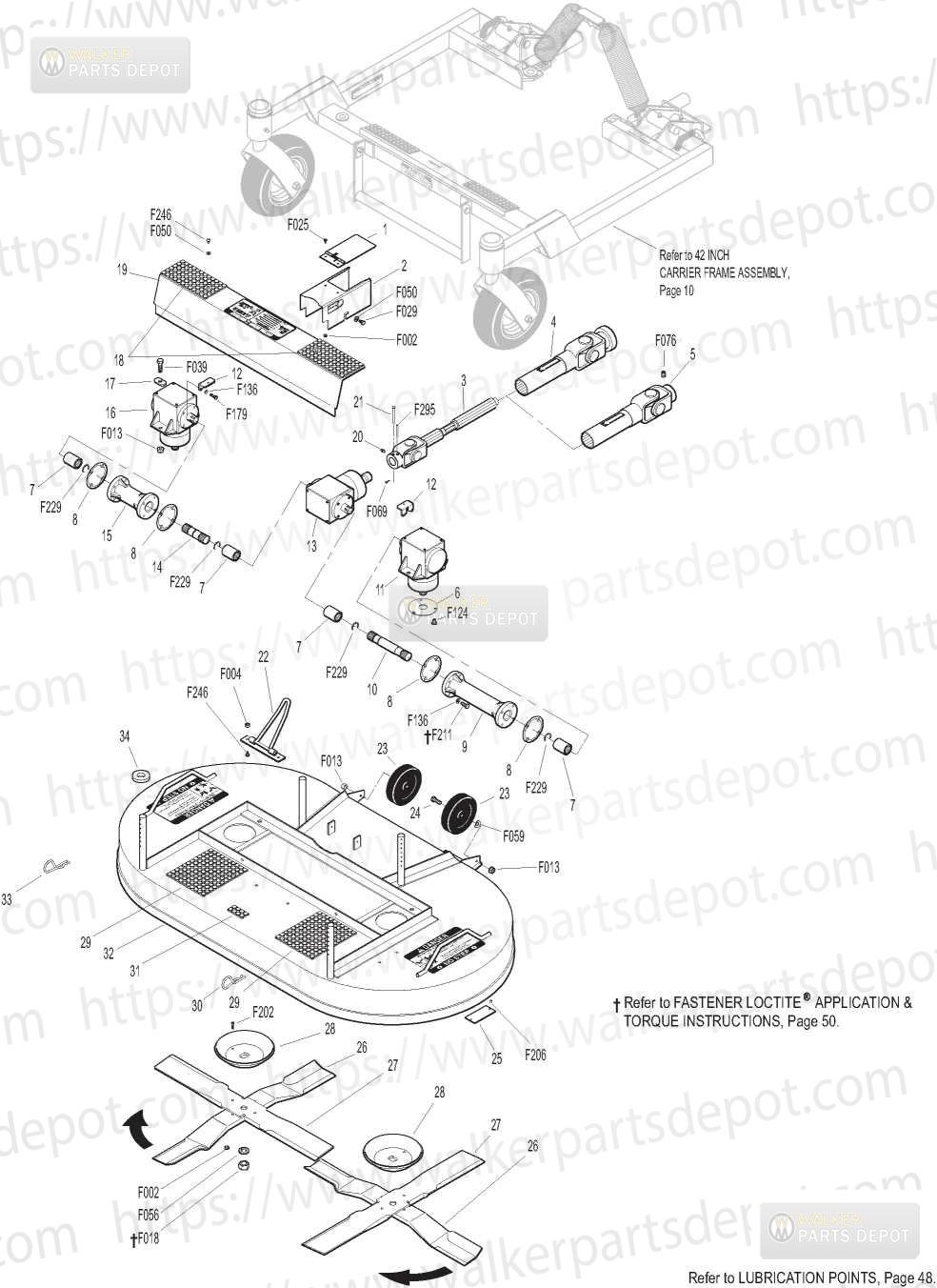

PARTS > DECKS MANUALS > 2004-08-01, 5000-13 > DML42 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8618-1	Cover PTO Shaft Guard	$21.27	Add to Cart
2	8619	PTO Shaft Guard	$19.57	Add to Cart
	8618	SU8618 10 PTO Shaft Guard Assembly	$40.91	Add to Cart
3	5285-15	UJnt Shaft90degSpline	$332.01	Add to Cart
4	7275-16	UJnt Tube AssySpline 10 OAL	$217.77	Add to Cart
5	5275-15	NR UJnt Tube95OALSpline	$154.77	Add to Cart
6	5706-4	Seal Protector Plate	$4.81	Add to Cart
7	6054	Spline Coupling	$12.09	Add to Cart
8	P007	Gasket Cap P788030	$2.70	Add to Cart
9	5063	SU50632 Connector Tube 858	$41.84	Add to Cart
10	6732-3	Connecting Shaft (6-1/4)
11	5052-1	Gearbox LH Rotation	$280.77	Add to Cart
12	5704-1	Gearbox Cover Support	$9.55	Add to Cart
13	5051-16	Tee Gearbox Shear Less Flanges	$195.32	Add to Cart
14	6732-1	Connecting Shaft (2")
15	5062	Connector Tube 4 3 8	$37.93	Add to Cart
16	5053-1	Gearbox RH Rotation	$279.09	Add to Cart
17	5052-3	1375x750x187 Washer	$3.84	Add to Cart
18	5747-11	Rubber Mat 3x6	$7.64	Add to Cart
19	5785-5	42 Gearbox Cover	$72.91	Add to Cart
20	5830	Grease Fitting 1428	$2.47	Add to Cart
21	8067-13	Shr Pin WCotter Set5 Softer Pin WX Mark	$11.90	Add to Cart
22	8670	TiltUp Hook	$34.85	Add to Cart
23	5162-11	"Roller Wheel (5""Poly)"	$9.05	Add to Cart
24	8490	Roller Wheel Axle Bolt	$5.80	Add to Cart
25	NS	Deck Serial Number Plate
26	5705-10	Blade 21 Lower Mulching	$34.65	Add to Cart
27	5705-11	Blade 22 Upper Mulching	$35.64	Add to Cart
	5705-12	42DML Blade Set WHubs	$195.62	Add to Cart
28	5706	Blade Hub Trash Guard	$37.05	Add to Cart
29	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
30	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
31	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
32	5701-1	42DML Deck Housing	$877.38	Add to Cart
33	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
34	5727-1	Washer Shim 58ID	$4.25	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F018	5818 Hex Nut	$1.66	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
	F124	1032x38 Taptite MS	$0.36	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F179	1420x1 Hex Bolt	$0.65	Add to Cart
	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F229	CClip 1316	$0.50	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F295	316x112 Split Spg Pin	$0.64	Add to Cart
