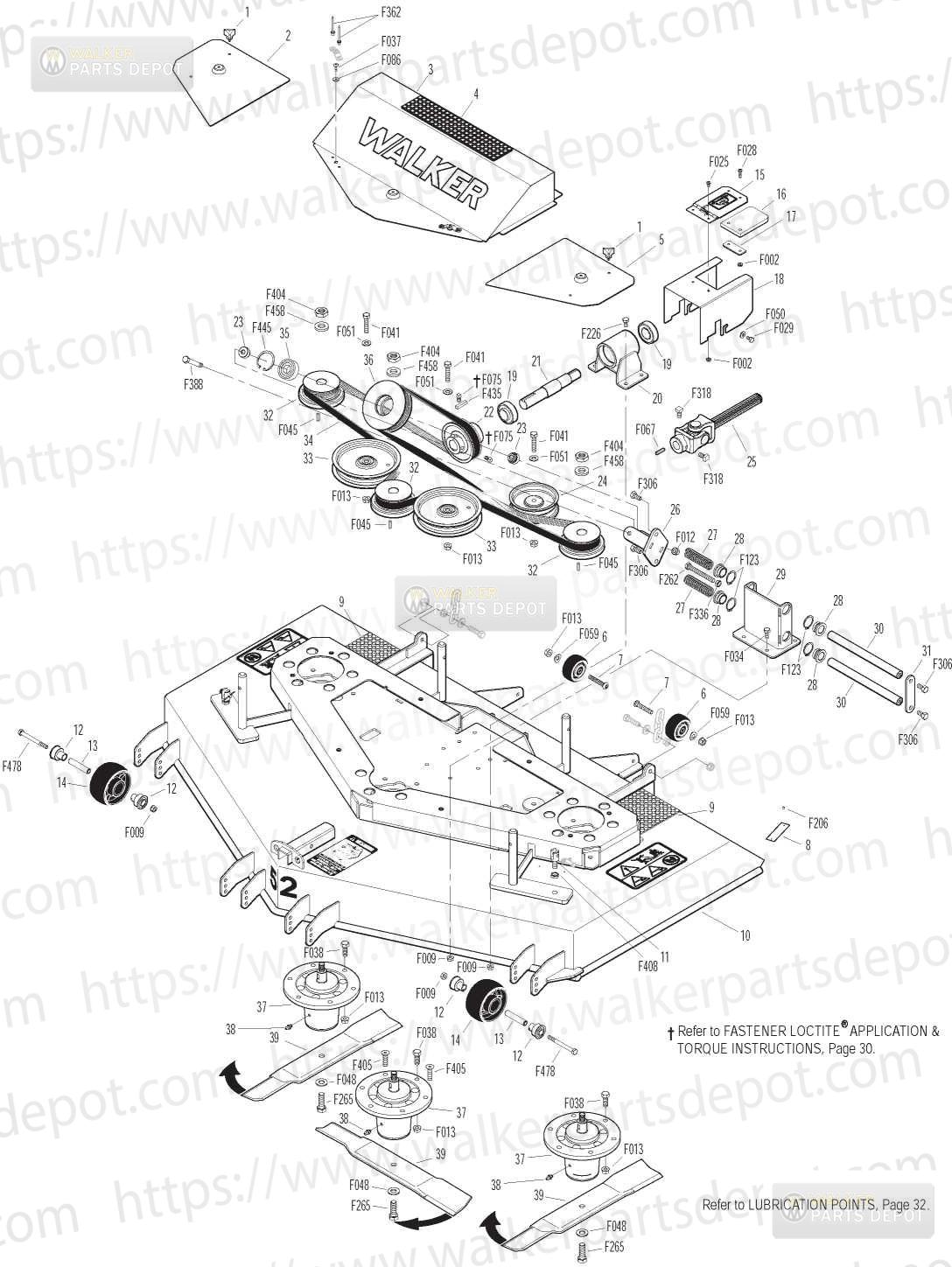

PARTS > DECKS MANUALS > 2014-06-18, 5000-21 European > DR52B-3 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	2703-5	Knob 1024x12	$5.38	Add to Cart
2	2723-12	Spindle Cover RHDRD52	$22.79	Add to Cart
3	2786-16	Belt Cover (Includes Items # 4, F037, F086 & F362)
4	8735-8	Rubber Mat 212 x 12	$9.62	Add to Cart
5	2723-13	Spindle Cover LHDRD52	$24.90	Add to Cart
6	9772	Roller Wheel Assy 212	$6.50	Add to Cart
7	8490-1	Roller Wheel Axle Bolt	$3.10	Add to Cart
8	NS	Deck Serial Number Plate
9	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
10	2910-9	DR52 Deck Housing For Use With Footrests	$1,312.00	Add to Cart
11	2720-5	Deck Height Adj Clevis	$16.08	Add to Cart
12	6715-3	Roller Wheel Bearing	$8.45	Add to Cart
13	6715-4	SU6715 6 Axle Spacer Tube	$13.60	Add to Cart
14	6715-2	Roller Wheel 4x2x2316	$8.40	Add to Cart
15	2618-1	Cover PTO Shaft Guard	$37.49	Add to Cart
16	2620-3	Rubber Flap	$5.16	Add to Cart
17	2620-2	Backing Plate
18	2619-2	PTO Shaft Guard	$19.80	Add to Cart
	2618-3	PTO Shaft Guard Assembly	$103.03	Add to Cart
19	5270	Bearing WCollar 1	$45.28	Add to Cart
20	2726	PTO Bearing Housing	$67.37	Add to Cart
21	2726-1	NR PTO Drive Shaft 7063	$38.04	Add to Cart
22	2240-4	Drive Pulley	$54.35	Add to Cart
23	2245-6	Idler Pulley Shaft	$15.95	Add to Cart
24	4245-1	Idler Pulley 4Flat	$36.30	Add to Cart
25	8285-4	UJnt Shaft AssySpline	$209.06	Add to Cart
26	2724-14	Idler Mount Weldment	$21.84	Add to Cart
27	5195-2	Compress Spring 1x638 Black	$8.26	Add to Cart
28	2724-17	Guide Rod Bushing	$21.20	Add to Cart
29	2724-18	Mount Base	$33.29	Add to Cart
30	2724-16	NR Guide Rod 9 Yellow Zinc	$19.51	Add to Cart
31	2724-19	Guide Rod Stop	$7.34	Add to Cart
32	2240-6	Blade Drv Pulley 318 WShield	$53.04	Add to Cart
33	8245	Idler Pulley 6	$53.99	Add to Cart
34	2731-2	Blade Drv Belt 1150L4K	$68.96	Add to Cart
35	2265	Bearing 20MM	$7.72	Add to Cart
36	2245-2	Idler Pulley	$80.05	Add to Cart
37	2052-1	Blade Spindle	$152.04	Add to Cart
38	5830	Grease Fitting 1428	$2.47	Add to Cart
39	7705-14	Blade 18333	$24.64	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F037	1024x58 PTH Screw	$0.18	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F041	3816x134 Hex Bolt	$1.87	Add to Cart
	F045	316x316x34 Key	$3.56	Add to Cart
	F048	12 SAE Washer	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F067	316x316x1 Key	$1.99	Add to Cart
	F075	51618x12 SQH Set Screw	$0.50	Add to Cart
	F086	10 SAE Washer	$0.18	Add to Cart
	F123	1 External Snap Ring	$1.27	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F226	51618x78 Hex Bolt	$0.78	Add to Cart
	F262	3816x4 Hex Blt All Thrd	$2.88	Add to Cart
	F265	1220x112 Hex Bolt	$2.62	Add to Cart
	F306	3816x34 Hex Bolt	$1.06	Add to Cart
	F318	3816x34 SQH Set Screw	$0.74	Add to Cart
	F336	3816 Jam Nut	$0.34	Add to Cart
	F362	AA62D Alum Pop Rivet 316Dx1332L	$0.48	Add to Cart
	F388	3816x212 Hex Bolt	$2.26	Add to Cart
	F404	5818 Jam Nut	$1.30	Add to Cart
	F405	3816x112 FHA Screw SS	$3.24	Add to Cart
	F408	71620 Jam Nut	$0.96	Add to Cart
	F435	14x14x114 Key	$2.02	Add to Cart
	F445	178 Internal Snap Ring	$1.66	Add to Cart
	F458	Washer 114x58x316	$4.31	Add to Cart
	F478	51618x314 Hex Bolt	$2.16	Add to Cart
