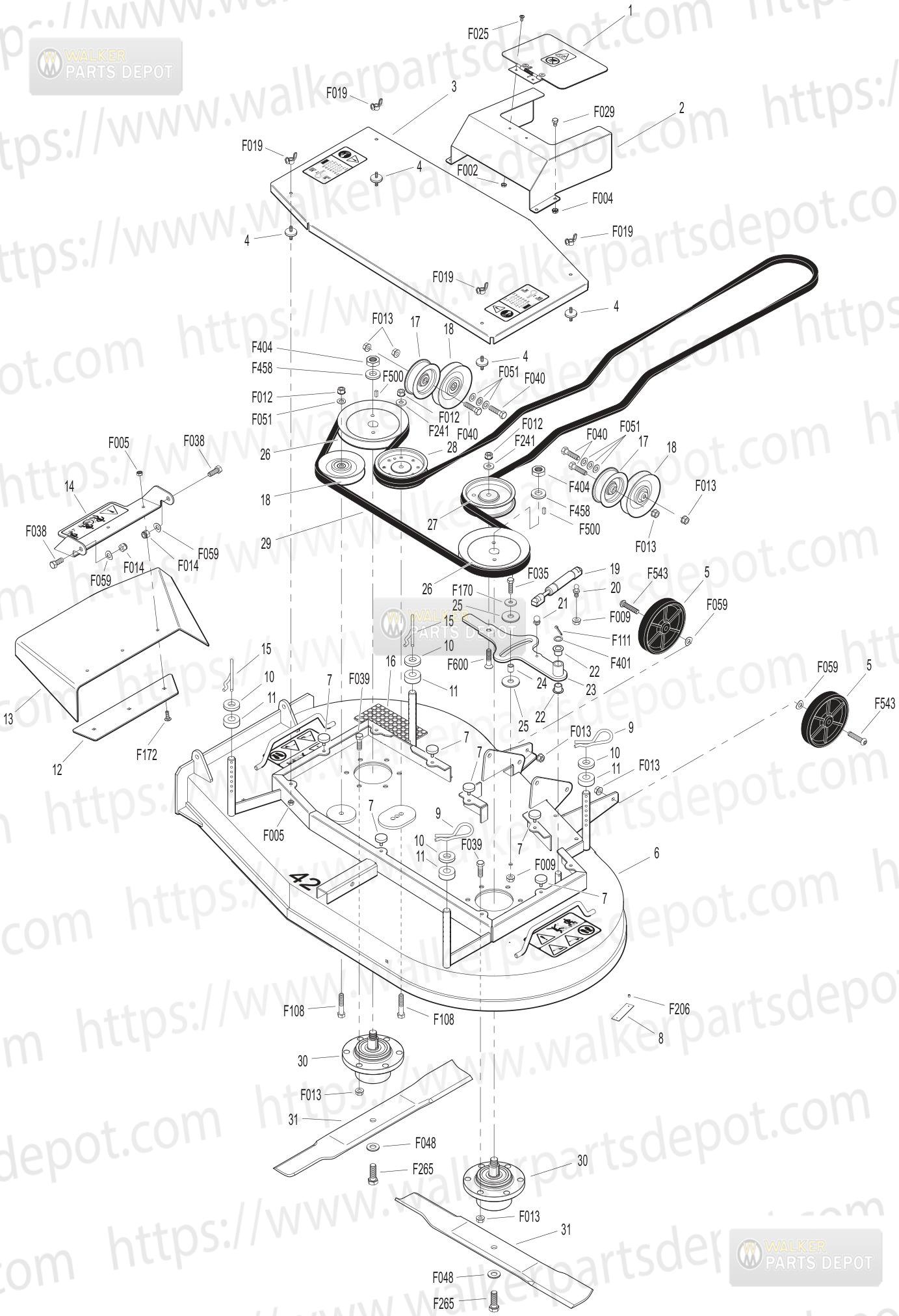

PARTS > MR MANUALS > 2019-08-28, 1000, Serial 158429-160823 > DS42-R Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	1620	NR Cover Belt Drive To SN 191620	$40.44	Add to Cart
2	1619	Drive Belt Guard To SN 191620	$32.82	Add to Cart
3	1703-1	NR Deck Belt CoverDS42R	$92.76	Add to Cart
4	7307-1	Shock Mount 10x25 Double Stud	$5.66	Add to Cart
5	5162-12	Roller Wheel 5Poly	$17.37	Add to Cart
6	1703	DS42 R Deck Housing	$1,167.21	Add to Cart
7	7307-9	Pull Through Bumper	$1.67	Add to Cart
8	NS	Deck Serial Number Plate
9	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
10	5727-1	Washer Shim 58ID	$4.25	Add to Cart
11	7434-1	Washer 138x5812 Thick Rubber	$2.95	Add to Cart
12	1709-2	Back Up PlateMR	$11.98	Add to Cart
13	1709-1	Discharge Shield MR	$52.60	Add to Cart
14	1709	Shield FrameMR	$17.92	Add to Cart
15	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
16	5747-10	Rubber Mat NoHole 3x6	$5.10	Add to Cart
17	5245-2	Idler Pulley 234	$21.01	Add to Cart
18	5247-2	VGroove Idler 4	$31.77	Add to Cart
19	8762-1	NR Dampening SpringGas	$20.80	Add to Cart
20	5146	10mm Ball Stud	$3.77	Add to Cart
21	5155-12	516 Ball Stud	$3.00	Add to Cart
22	7620-3	Pivot Bushing 12x916	$10.49	Add to Cart
23	1703-3	Idler Arm R42 Deck	$29.95	Add to Cart
24	1701-8	Bushing Sleeve 5x313x530	$7.38	Add to Cart
25	1701-2	Washer 15x5x125	$4.12	Add to Cart
26	6240-25	Spindle Pulley 6	$22.66	Add to Cart
27	7245-2	Idler Pulley	$33.88	Add to Cart
28	5245-3	SU7245 2 Idler Pulley 4 5 8	$16.82	Add to Cart
29	1731-1	Blade Drive BeltMR 42	$102.77	Add to Cart
30	8052-5	Blade Spindle	$80.35	Add to Cart
31	7705-31	Blade 2138	$31.77	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F035	51618x114 Hex Bolt	$0.94	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F048	12 SAE Washer	$0.50	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F108	3816x2 Hex Bolt	$1.42	Add to Cart
	F111	18x34 Cotter Pin	$0.18	Add to Cart
	F170	516x1x764 Flat Washer Zinc Plate	$1.75	Add to Cart
	F172	1420x34 Carriage Bolt	$0.50	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F241	375x875x10 Washer	$0.79	Add to Cart
	F265	1220x112 Hex Bolt	$2.62	Add to Cart
	F401	504x751x030 Washer	$0.65	Add to Cart
	F404	5818 Jam Nut	$1.30	Add to Cart
	F458	Washer 114x58x316	$4.31	Add to Cart
	F500	316x316x916 Key	$1.54	Add to Cart
	F543	SU8490 3816x112 BH Cap Screw	$4.99	Add to Cart
	F600	3816x134 FHA Screw Zinc	$4.58	Add to Cart
