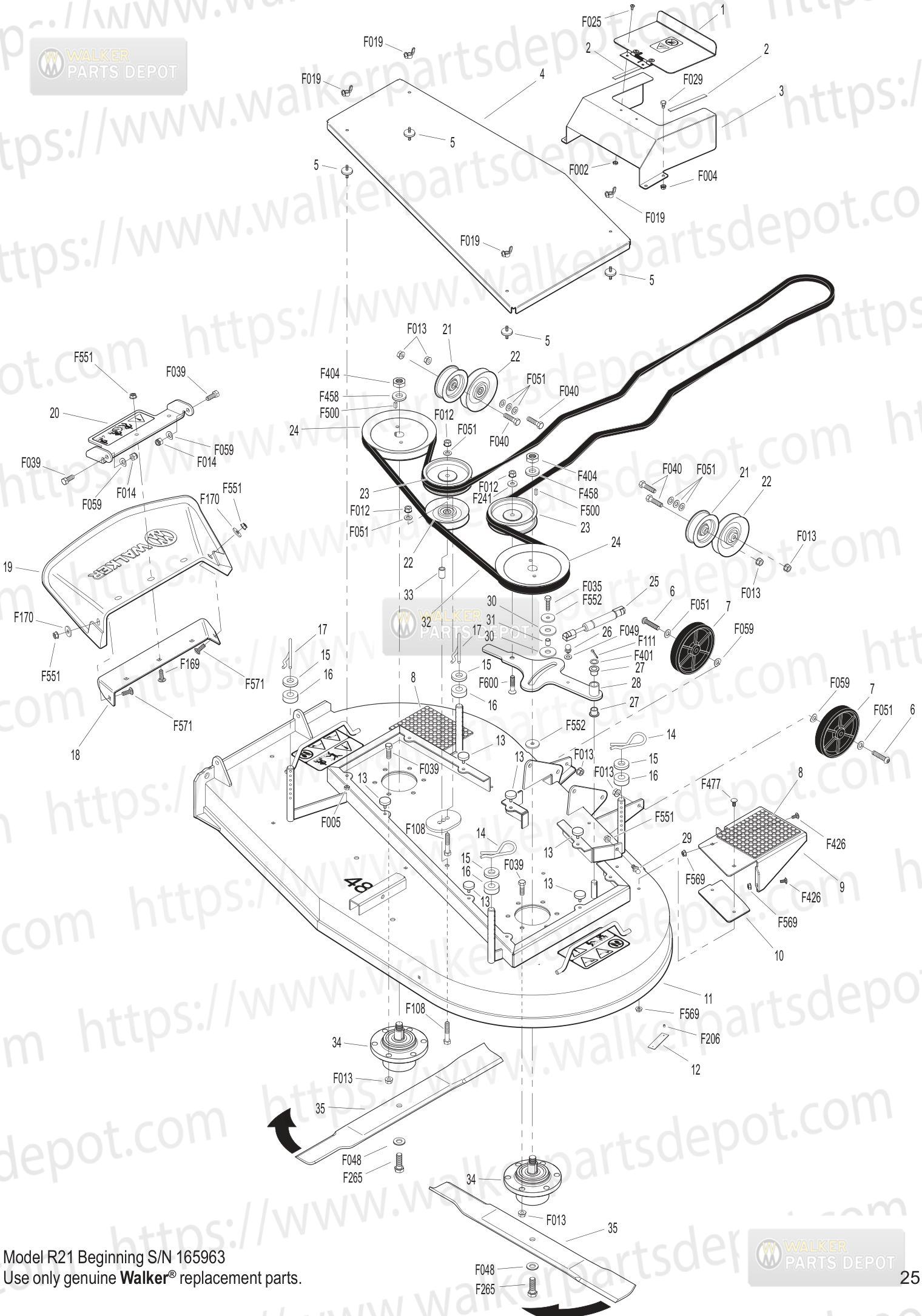

PARTS > MR MANUALS > 2021-09-20, 1000-4, Serial 165963-174104 > DS48-R Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	1620-1	Belt Drive Cover	$35.00	Add to Cart
2	8790	Rubber Cushion Strip	$4.51	Add to Cart
3	1619-2	Drive Belt Guard 48	$37.66	Add to Cart
4	1701-1	Deck Belt CoverDS48R	$83.87	Add to Cart
5	7307-1	Shock Mount 10x25 Double Stud	$5.66	Add to Cart
6	8490	Roller Wheel Axle Bolt	$5.80	Add to Cart
7	5162-12	Roller Wheel 5Poly	$17.37	Add to Cart
8	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
9	1701-13	Deck Step, DS48-R (Includes Item # 8)
10	1701-12	Spacer Plate
11	1701-9	DS48 R Deck Housing After S N 191620	$1,282.55	Add to Cart
12	NS	Deck Serial Number Plate
13	7307-9	Pull Through Bumper	$1.67	Add to Cart
14	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
15	5727-1	Washer Shim 58ID	$4.25	Add to Cart
16	7434-1	Washer 138x5812 Thick Rubber	$2.95	Add to Cart
17	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
18	1709-5	Backup Plate	$25.98	Add to Cart
19	1709-3	Rubber ShieldMRDU	$46.29	Add to Cart
20	1709-6	Discharge Shield Frame	$29.00	Add to Cart
21	5245-2	Idler Pulley 234	$21.01	Add to Cart
22	5247-2	VGroove Idler 4	$31.77	Add to Cart
23	7245-2	Idler Pulley	$33.88	Add to Cart
24	6240-23	Spindle Pulley 634B	$25.70	Add to Cart
25	8762-1	NR Dampening SpringGas	$20.80	Add to Cart
26	5155-12	516 Ball Stud	$3.00	Add to Cart
27	7620-3	Pivot Bushing 12x916	$10.49	Add to Cart
28	1701-3	Idler Arm R48 Deck	$35.57	Add to Cart
29	5146	10mm Ball Stud	$3.77	Add to Cart
30	1701-2	Washer 15x5x125	$4.12	Add to Cart
31	1701-8	Bushing Sleeve 5x313x530	$7.38	Add to Cart
32	1731	Blade Drive BeltMR 48	$106.37	Add to Cart
33	6325-10	Spacer/Stop (3/8 x 7/8 x 1/2)
34	8052-5	Blade Spindle	$80.35	Add to Cart
35	7705-29	Blade 2438	$33.75	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F035	51618x114 Hex Bolt	$0.94	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F048	12 SAE Washer	$0.50	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F108	3816x2 Hex Bolt	$1.42	Add to Cart
	F111	18x34 Cotter Pin	$0.18	Add to Cart
	F169	51618x1 Carriage Bolt	$0.79	Add to Cart
	F170	516x1x764 Flat Washer Zinc Plate	$1.75	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F241	375x875x10 Washer	$0.79	Add to Cart
	F265	1220x112 Hex Bolt	$2.62	Add to Cart
	F401	504x751x030 Washer	$0.65	Add to Cart
	F404	5818 Jam Nut	$1.30	Add to Cart
	F426	1420x12 Carriage Bolt	$0.50	Add to Cart
	F458	Washer 114x58x316	$4.31	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
	F500	316x316x916 Key	$1.54	Add to Cart
	F551	51618 Flange Top Lock Nut	$1.06	Add to Cart
	F552	Washer 1250x314x125	$3.30	Add to Cart
	F569	1420 Flange Top Lock Nut	$1.20	Add to Cart
	F571	51618x78 Carriage Bolt	$2.29	Add to Cart
	F600	3816x134 FHA Screw Zinc	$4.58	Add to Cart
