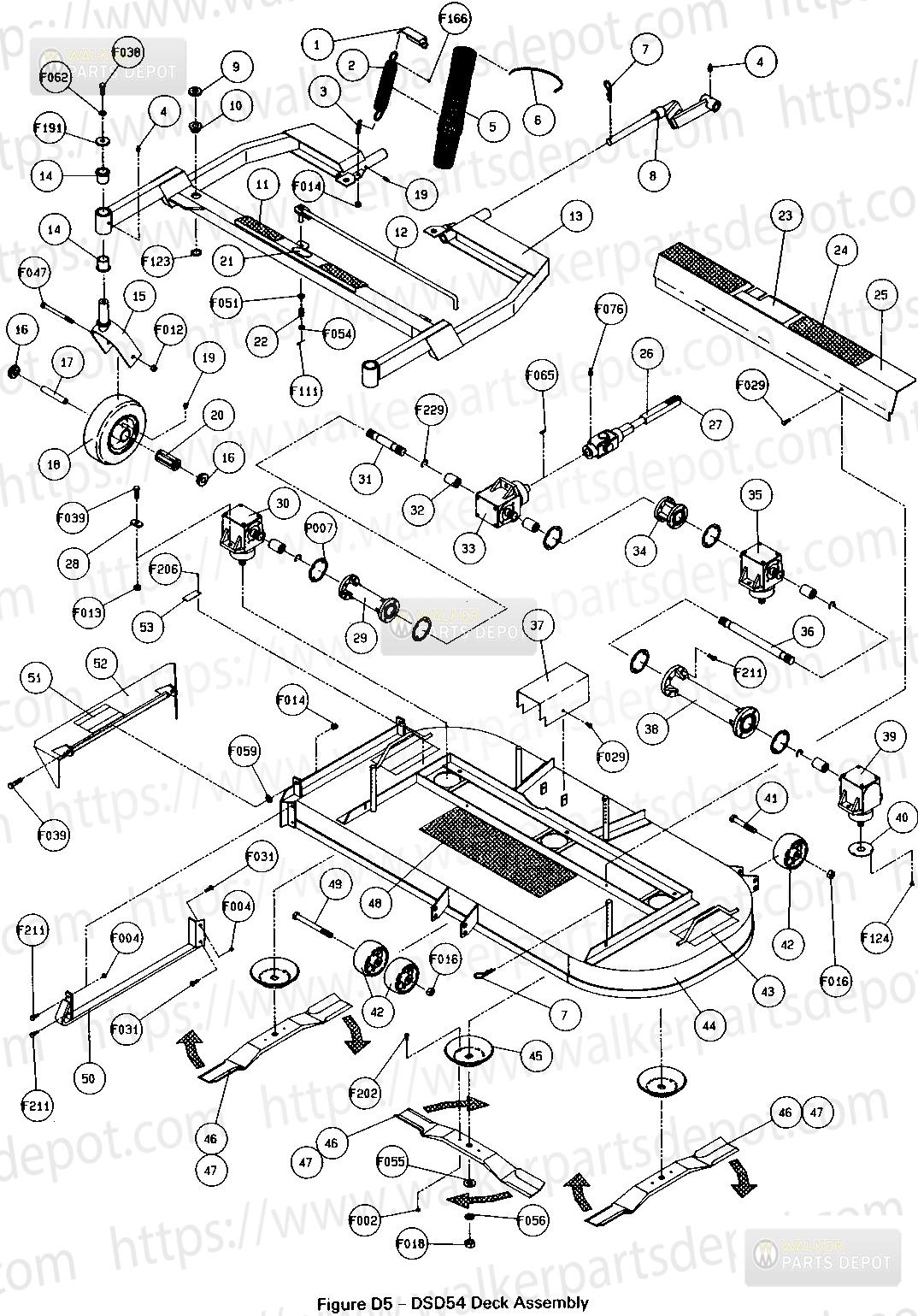

PARTS > MD MANUALS > 1993-03-01, 7895-1, Serial 11756-29675 > DS54 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5744-1	Spring Clip Bracket	$15.81	Add to Cart
2	5743-2	Counterweight Spring
3	5743-3	Eye Bolt 3816x2	$8.78	Add to Cart
4	5830	Grease Fitting 1428	$2.47	Add to Cart
5	5743-1	Spring Cover	$13.40	Add to Cart
6	5975-3	Cable Tie 50x7	$0.36	Add to Cart
7	5775-2	Hitch Pin 6	$3.24	Add to Cart
8	6430-2	Deck Support Arm, LH
	6430-1	Deck Support Arm, RH (Not Illustrated)
9	5727-1	Washer Shim 58ID	$4.25	Add to Cart
10	5740-2	Deck Pin Bushing 58	$3.36	Add to Cart
11	5748	Safety Tread (2 X 6)
12	5786-1	NR Deck Lift Rod	$14.32	Add to Cart
13	6710-2	54" Deck Carrier Frame
	6700-1	Complete 54" Carrier Frame Assembly
14	5683	Pivot Bearing	$10.16	Add to Cart
15	5770-2	Caster Wheel Fork 8602 571534	$47.74	Add to Cart
16	5714-7	NR Bearing Cap	$7.16	Add to Cart
17	5714-3	Axle Spacer Tube	$12.73	Add to Cart
18	5715-4	SU5715 13 5714 6 NR Cst Whel Pneu 8x3 00 4	$61.28	Add to Cart
	5715-10	Tire Pneu 8x3 00 4	$33.65	Add to Cart
	5715-9	Tire Tube Pneumatic 2802504	$25.70	Add to Cart
	5715-3	SU5715 14 5714 6 NR Caster Wheel Tire No Flat 8x3 00 4	$70.50	Add to Cart
19	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
20	5714-5	NRBearing 5715357154	$26.64	Add to Cart
21	5809	Decal, Walker Mower Logo
22	5682	Compress Spg 916x34	$1.20	Add to Cart
23	5807-1	Decal, Cutting Height Adjust
24	5747-3	Safety Tread (3-1/4 X 11)
25	6785	NR 54SD Gearbox Cover	$44.22	Add to Cart
26	5285	Universal Joint Shaft Assembly
27	6875	NR Decal PTO Align Arrow	$4.74	Add to Cart
28	5052-3	1375x750x187 Washer	$3.84	Add to Cart
29	5065	Conn Tube 7 11 16	$52.98	Add to Cart
30	5053-1	Gearbox RH Rotation	$279.09	Add to Cart
31	6732-4	Connecting Shaft (5")
32	6054	Spline Coupling	$12.09	Add to Cart
33	5051	NR Tee Gearbox	$307.02	Add to Cart
34	5060	Connector Tube 2 5 16	$48.73	Add to Cart
35	5058	Tee Gearbox, Blade Drive
36	6732-5	NR Connecting Shaft 1118	$32.43	Add to Cart
37	5745	PTO Shaft Guard
38	5064	NR Conn Tube 13 1 2	$44.11	Add to Cart
39	5052-1	Gearbox LH Rotation	$280.77	Add to Cart
40	5706-4	Seal Protector Plate	$4.81	Add to Cart
41	6716-2	Rear Axle, Anti-Scalp Roller (Bolt)
42	6715	Roller Wheel 378	$9.07	Add to Cart
43	5808	Decal, Danger Rotating Blade
44	6705-2	54" Deck Housing, SD
45	5706	Blade Hub Trash Guard	$37.05	Add to Cart
46	5705-0	Blade 20RH Rotation	$33.22	Add to Cart
47	5705-9	54 56SD Blade Set W Hubs	$124.70	Add to Cart
48	5747-1	Safety Tread (6 X 19)
49	6716-3	Front Axle, Anti-Scalp Roller (Bolt)
50	6707	NR 54SD Skid Bar	$56.74	Add to Cart
51	5848	NR Decal Dngr SD Shld Lexan	$4.87	Add to Cart
52	6709	54SD Discharge Shield	$66.05	Add to Cart
53	5858	Deck Serial Number Plate
P007	P007	Gasket Cap P788030	$2.70	Add to Cart
F002	F002	1024 Keps Nut	$0.18	Add to Cart
F004	F004	1420 Keps Nut	$0.34	Add to Cart
F012	F012	3816 Keps Nut	$0.79	Add to Cart
F013	F013	3816 Whiz Locknut	$0.65	Add to Cart
F014	F014	3816 ESNA Nut	$0.65	Add to Cart
F016	F016	1213 SelfLocking Nut	$1.51	Add to Cart
F018	F018	5818 Hex Nut	$1.66	Add to Cart
F029	F029	1420x12 Hex Bolt	$0.50	Add to Cart
F031	F031	1420x58 Hex Bolt	$0.50	Add to Cart
F038	F038	3816x1 Hex Bolt	$1.06	Add to Cart
F039	F039	3816x114 Hex Bolt	$1.42	Add to Cart
F047	F047	3816x412 Hex Bolt	$3.12	Add to Cart
F051	F051	38 SAE Washer	$0.65	Add to Cart
F054	F054	AN960616 Washer	$0.29	Add to Cart
F055	F055	58 SAE Washer	$0.65	Add to Cart
F056	F056	58 Split Lock Washer	$0.65	Add to Cart
F059	F059	38 Wave Spring Washer	$1.32	Add to Cart
F062	F062	8 Int Star Lock Wshr	$0.18	Add to Cart
F065	F065	316x34 Woodruff Key 606	$2.18	Add to Cart
F076	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
F111	F111	18x34 Cotter Pin	$0.18	Add to Cart
F123	F123	1 External Snap Ring	$1.27	Add to Cart
F124	F124	1032x38 Taptite MS	$0.36	Add to Cart
F166	F166	Retainer Ring	$0.18	Add to Cart
F191	F191	38x112x316 Washer	$4.26	Add to Cart
F202	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
F206	F206	2x316 Drive Pin	$0.18	Add to Cart
F211	F211	1420x78 Hex Bolt	$0.65	Add to Cart
F229	F229	CClip 1316	$0.50	Add to Cart
