Part Lookup Tool

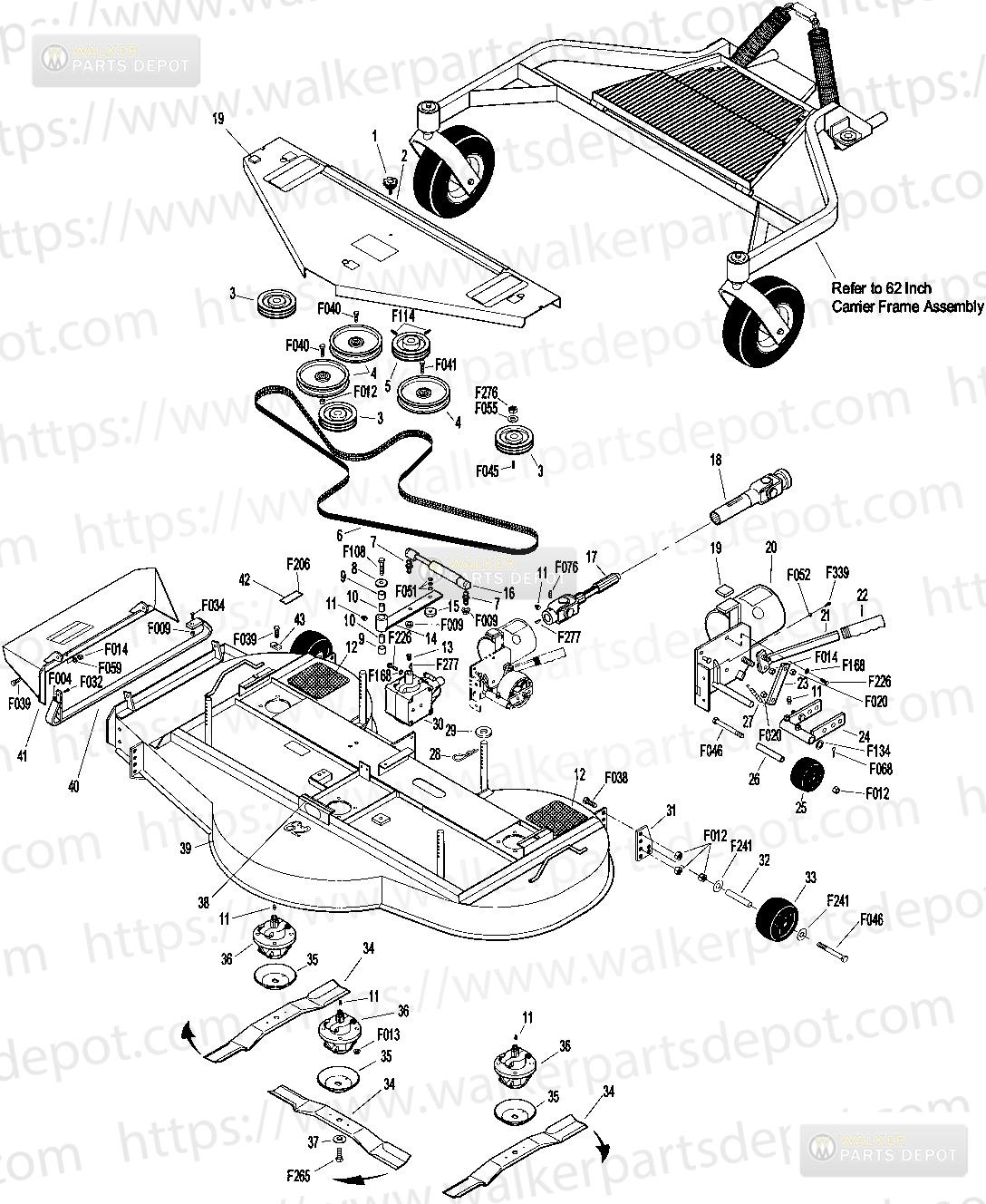

PARTS > DECKS MANUALS > 1998-07-24, 5000-6 > DSD62 Deck Assembly:
| Diagram # | Part # | Description | Price | Add to Cart |
| 1 | 8787 | NR Deck Cover Knob | $6.82 |
Add to Cart | | 2 | 8785 | Cover Plate, 62? (Includes Item # 19) | |
| | 3 | 8240 | Blade Drv Pulley 412 | $47.74 |
Add to Cart | | 4 | 8245 | Idler Pulley 6 | $53.99 |
Add to Cart | | 5 | 6240-2 | NR Drive Pulley 4123V | $61.15 |
Add to Cart | | 6 | 8731 | NR Blade Drive Belt 23VX1180 | $83.12 |
Add to Cart | | 7 | 5146 | 10mm Ball Stud | $3.77 |
Add to Cart | | 8 | 5841 | Retainer Washer 38x114 | $1.42 |
Add to Cart | | 9 | 7201-1 | Needle Bearing | |
| | 10 | 7201 | Bearing Inner Race | |
| | 11 | 5830 | Grease Fitting 1428 | $2.47 |
Add to Cart | | 12 | 8747 | Safety Tread (6 x 6) | |
| | 13 | 6206 | Pressure ReliefValve | |
| | 14 | 8373-3 | NR Idler Arm 2Hole | $20.72 |
Add to Cart | | 15 | 8374 | Idler Arm Guide | |
| | 16 | 8762 | SU8762 1 Dampening Spring Gas | $35.97 |
Add to Cart | | 17 | 8285-15 | UJnt Shaft AssySpline | $113.40 |
Add to Cart | | 18 | 7275-15 | UJnt TubeSplineNT 925 OAL | $223.44 |
Add to Cart | | 19 | 8788 | NR Rubber Bumper SelfAdhesive Mount | $2.62 |
Add to Cart | | 20 | 8745-3 | Mount Bracket & PTO Guard (Includes Items # 19, F052, F068 & F339) | |
| | 8745 | Dolly Wheel/PTO Guard Assembly (Includes Items# 11,19, 20, 23-27, F012, F014, F020, F046, F068, F134, F168 & F226) | |
| | 21 | 8745-14 | Retract Lever | $11.57 |
Add to Cart | | 22 | 5850-1 | Handle Grip | |
| | 23 | 8745-12 | Actuator Link | $6.41 |
Add to Cart | | 24 | 8745-13 | Dolly Wheel Mount | $25.08 |
Add to Cart | | 25 | 6715 | Roller Wheel 378 | $9.07 |
Add to Cart | | 26 | 8745-15 | Axle Spacer Tube | $6.23 |
Add to Cart | | 27 | 5229 | Ext Spring 12x214 | $7.56 |
Add to Cart | | 28 | 8775 | Hitch Pin 219 | $4.86 |
Add to Cart | | 29 | 8727 | Washer Shim 1316x14 | $5.45 |
Add to Cart | | 30 | 8051 | Right Angle Gearbox (Includes Item # 11) | |
| | 31 | 8720-30 | NR AntiScalp Wheel Mount | $16.13 |
Add to Cart | | 32 | 8745-30 | NR Axle Spacer Tube 624x385x25625 | $11.92 |
Add to Cart | | 33 | 6715-1 | NR Roller Wheel 5 | $28.42 |
Add to Cart | | 34 | 5705-3 | Blade 22RH Rotation | $35.60 |
Add to Cart | | 5705-13 | NR 62SD Blade Set | $97.88 |
Add to Cart | | 35 | 8739 | NR Spindle Shield | $5.16 |
Add to Cart | | 36 | 8052 | Blade Spindle (Includes Item # 11) | |
| | 37 | 8728 | NR Machine Bush 12x112 | $32.05 |
Add to Cart | | 38 | 8790 | Rubber Cushion Strip | $4.51 |
Add to Cart | | 39 | 8701-1 | NR 62SD Deck Hsing NT | $1,331.00 |
Add to Cart | | 40 | 8707 | 5262SD Skid Bar | $27.61 |
Add to Cart | | 41 | 8709 | NR 5262SD Discharge Shield | $155.82 |
Add to Cart | | 42 | NS | Deck Serial Number Plate | |
| | 43 | 5052-3 | 1375x750x187 Washer | $3.84 |
Add to Cart | | F004 | 1420 Keps Nut | $0.34 |
Add to Cart | | F009 | 51618 Whiz Locknut | $0.50 |
Add to Cart | | F012 | 3816 Keps Nut | $0.79 |
Add to Cart | | F013 | 3816 Whiz Locknut | $0.65 |
Add to Cart | | F014 | 3816 ESNA Nut | $0.65 |
Add to Cart | | F020 | 51618 ESNA Nut | $0.34 |
Add to Cart | | F032 | 1420x34 Hex Bolt | $0.50 |
Add to Cart | | F034 | 51618x34 Hex Bolt | $0.79 |
Add to Cart | | F038 | 3816x1 Hex Bolt | $1.06 |
Add to Cart | | F039 | 3816x114 Hex Bolt | $1.42 |
Add to Cart | | F040 | 3816x112 Hex Bolt | $1.54 |
Add to Cart | | F041 | 3816x134 Hex Bolt | $1.87 |
Add to Cart | | F045 | 316x316x34 Key | $3.56 |
Add to Cart | | F046 | 3816x312 Hex Bolt | $2.88 |
Add to Cart | | F051 | 38 SAE Washer | $0.65 |
Add to Cart | | F052 | 516 Ext Star Lock Wshr | $0.18 |
Add to Cart | | F055 | 58 SAE Washer | $0.65 |
Add to Cart | | F059 | 38 Wave Spring Washer | $1.32 |
Add to Cart | | F068 | 18x1 Cotter Pin | $0.18 |
Add to Cart | | F076 | 3816x58 SQH Set Screw | $0.65 |
Add to Cart | | F108 | 3816x2 Hex Bolt | $1.42 |
Add to Cart | | F114 | 51618x58 SQH Set Screw | $0.65 |
Add to Cart | | F134 | AN960816L Washer | $0.65 |
Add to Cart | | F168 | 516 Split Lock Washer | $0.18 |
Add to Cart | | F206 | 2x316 Drive Pin | $0.18 |
Add to Cart | | F226 | 51618x78 Hex Bolt | $0.78 |
Add to Cart | | F241 | 375x875x10 Washer | $0.79 |
Add to Cart | | F265 | 1220x112 Hex Bolt | $2.62 |
Add to Cart | | F276 | 5811 Jam Nut | $1.42 |
Add to Cart | | F277 | 316x58 Woodruff Key 605 | $2.87 |
Add to Cart | | F339 | 51618X34 SelfTapping Bolt | $2.28 |
Add to Cart |
