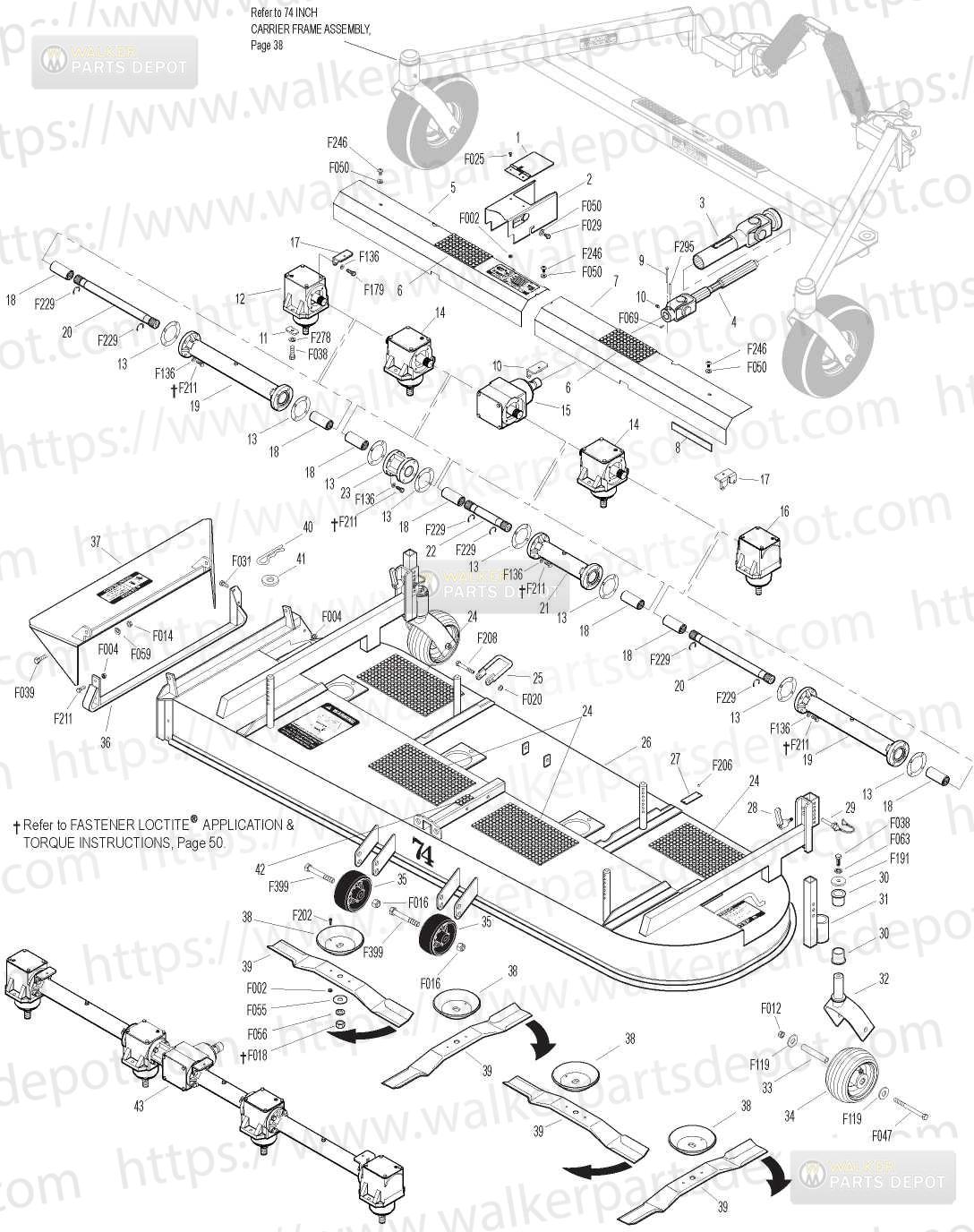

PARTS > DECKS MANUALS > 2006-07-01, 5000-17 > DSD74 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8618-1	Cover PTO Shaft Guard	$21.27	Add to Cart
2	8619	PTO Shaft Guard	$19.57	Add to Cart
	8618	SU8618 10 PTO Shaft Guard Assembly	$40.91	Add to Cart
3	7275-16	UJnt Tube AssySpline 10 OAL	$217.77	Add to Cart
4	5285-15	UJnt Shaft90degSpline	$332.01	Add to Cart
5	7865-6	74 SD Gearbox Cover/RH (Includes Items # 6 & 8)
6	5747-10	Rubber Mat NoHole 3x6	$5.10	Add to Cart
7	7865-5	74 SD Gearbox Cover/LH (Includes Items # 6 & 8)
8	8790	Rubber Cushion Strip	$4.51	Add to Cart
9	8067-13	Shr Pin WCotter Set5 Softer Pin WX Mark	$11.90	Add to Cart
10	5830	Grease Fitting 1428	$2.47	Add to Cart
11	5052-3	1375x750x187 Washer	$3.84	Add to Cart
12	5053-6	(NR) Gearbox- HD (RH 1:1.2)	$260.66	Add to Cart
13	P007	Gasket Cap P788030	$2.70	Add to Cart
14	5058-6	NR Tee Gearbox 1 1 2	$284.54	Add to Cart
15	5051-6	Tee Gearbox Shear	$262.08	Add to Cart
16	5052-6	NR Gearbox HD LH 1 1 2	$270.86	Add to Cart
17	5704-1	Gearbox Cover Support	$9.55	Add to Cart
18	6054	Spline Coupling	$12.09	Add to Cart
19	5069	Connector Tube 14 1 2	$64.66	Add to Cart
20	6732-9	Connecting Shaft (12-1/8)
21	5063	SU50632 Connector Tube 858	$41.84	Add to Cart
22	6732-3	Connecting Shaft (6-1/4)
23	5060	Connector Tube 2 5 16	$48.73	Add to Cart
24	8786-10	Rubber Mat 6x1012	$15.07	Add to Cart
25	8670-8	TiltUp Hook	$11.37	Add to Cart
26	7803-3	74SD Deck Housing	$2,282.00	Add to Cart
27	NS	Deck Serial Number Plate
28	7866-1	Lock LeverRear Caster	$19.48	Add to Cart
29	7775-5	Lock Pin 516x158	$6.82	Add to Cart
30	5683	Pivot Bearing	$10.16	Add to Cart
31	7866	NR 74SD Rear Fork Mount	$85.85	Add to Cart
32	7870	74SD Rear Fork	$30.89	Add to Cart
33	5714-3	Axle Spacer Tube	$12.73	Add to Cart
34	7868	74SD Caster WheelRear	$70.31	Add to Cart
35	6715	Roller Wheel 378	$9.07	Add to Cart
36	7807-1	74SD Skid Bar02	$28.51	Add to Cart
37	7809-1	74SD Discharge Shield	$118.86	Add to Cart
38	5706	Blade Hub Trash Guard	$37.05	Add to Cart
39	5705-0	Blade 20RH Rotation	$33.22	Add to Cart
	5705-16	NR 74SD Blade Set WHubs	$248.22	Add to Cart
40	8775	Hitch Pin 219	$4.86	Add to Cart
41	8727	Washer Shim 1316x14	$5.45	Add to Cart
42	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
43	5704-32	74 Grbx Tube Assy HD	$1,684.72	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F016	1213 SelfLocking Nut	$1.51	Add to Cart
	F018	5818 Hex Nut	$1.66	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F047	3816x412 Hex Bolt	$3.12	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F055	58 SAE Washer	$0.65	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F063	38 Int Star Lock Washer	$0.18	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F119	Rear Caster Spacer	$5.33	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F179	1420x1 Hex Bolt	$0.65	Add to Cart
	F191	38x112x316 Washer	$4.26	Add to Cart
	F202	1024x58 SHC Screw GR5	$1.06	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F208	51618x214 Hex Bolt	$1.54	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F229	CClip 1316	$0.50	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F295	316x112 Split Spg Pin	$0.64	Add to Cart
	F399	1213x314 Hex Bolt	$4.38	Add to Cart
