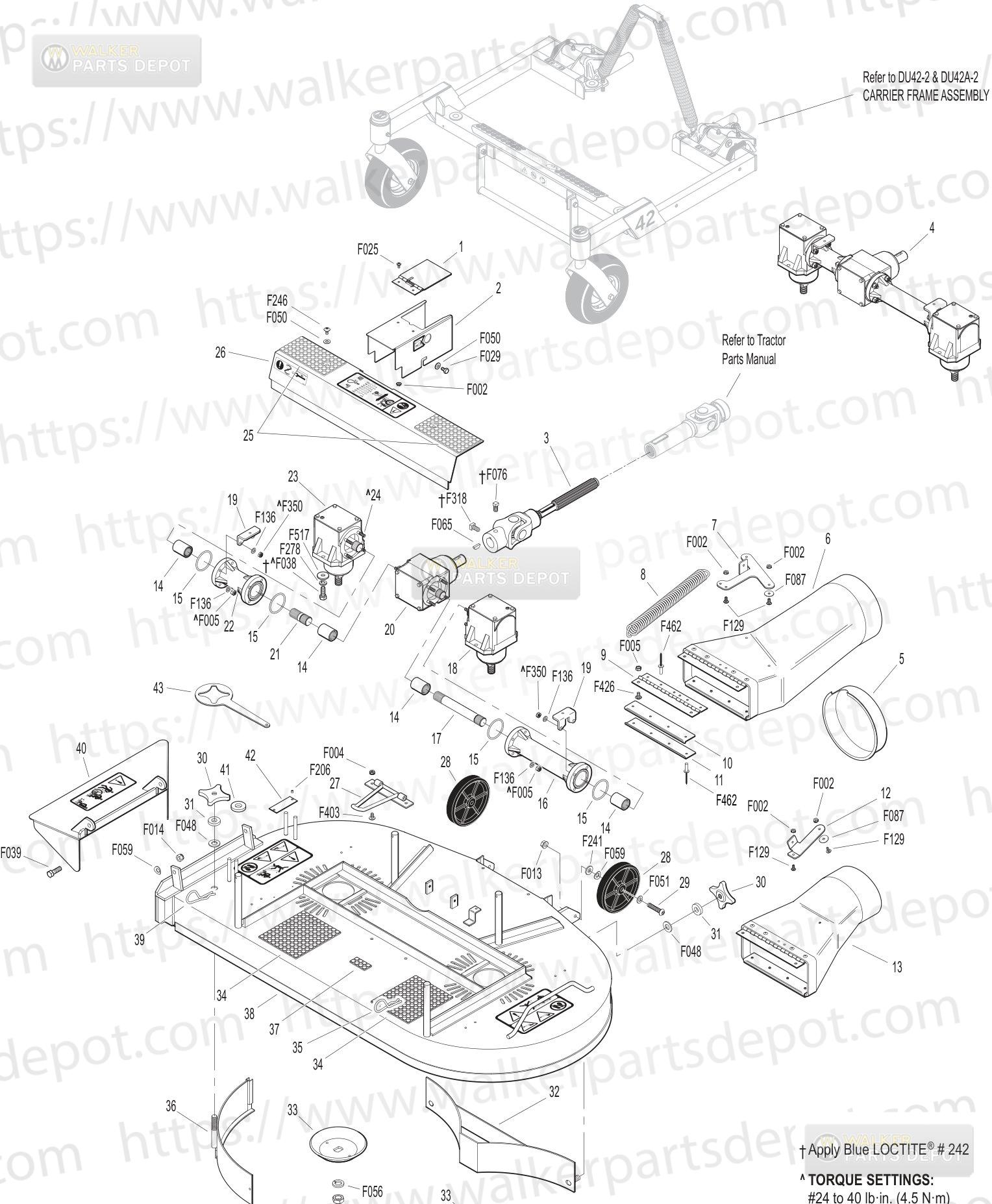

PARTS > DECKS MANUALS > 2026-04-14, 5000-97, Serial 224688-AND ON > DU42-2 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8618-1	Cover PTO Shaft Guard	$21.27	Add to Cart
2	8618-12	"PTO Shaft Guard Assembly "	$52.92	Add to Cart
3	5285-5	UJoint Shaft90 Spline Keyed	$290.01	Add to Cart
4	6711-4	DUDC42R GearboxTube Assembly HD ProGear	$1,753.00	Add to Cart
5	5595-2	Intake CoverGHS	$7.82	Add to Cart
6	5794-2	Discharge Chute WSpg Mnt42M	$111.51	Add to Cart
7	8678	Spring Mount Chute	$10.13	Add to Cart
8	8677	Extension Spring 1x6116	$11.99	Add to Cart
9	5726	Chute Hinge 2x8	$7.75	Add to Cart
10	5755-2	Chute LipTop	$5.33	Add to Cart
11	5755-3	Chute LipBottom	$5.33	Add to Cart
12	8678-4	Spring Mount, Chute
13	5794-3	Discharge Chute WSpring Mnt	$97.92	Add to Cart
14	6054	Spline Coupling	$12.09	Add to Cart
15	5068-6	ORing 178x2	$0.80	Add to Cart
16	5063-2	Connector Tube 8655 Oring	$51.22	Add to Cart
17	6733-3	Connecting Shaft 614	$34.56	Add to Cart
18	5053-13	HD Gearbox 11CWCW	$482.79	Add to Cart
19	5704-1	Gearbox Cover Support	$9.55	Add to Cart
20	5051-5	HD Tee Gearbox 11 CWCWCCW	$516.39	Add to Cart
21	6733-1	Connecting Shaft 2	$32.12	Add to Cart
22	5062-2	Connector Tube 4405 Oring	$48.71	Add to Cart
23	5052-13	HD Gearbox 11 CCWCCW	$488.88	Add to Cart
24	5589-1	1420x112 Stud Threadlocker	$2.15	Add to Cart
25	5747-11	Rubber Mat 3x6	$7.64	Add to Cart
26	5785-5	42 Gearbox Cover	$72.91	Add to Cart
27	8670	TiltUp Hook	$34.85	Add to Cart
28	5162-12	Roller Wheel 5Poly	$17.37	Add to Cart
29	8490	Roller Wheel Axle Bolt	$5.80	Add to Cart
30	5703-1	Knob 1213	$23.06	Add to Cart
31	5727	Washer Shim 12ID	$6.82	Add to Cart
32	6708-1	Rear Baffle	$79.76	Add to Cart
33	5706	Blade Hub Trash Guard	$37.05	Add to Cart
34	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
35	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
36	6708-4	Chute Baffle 14 Thick	$89.42	Add to Cart
37	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
38	5701-12	DU42-2 Deck Housing (Includes Items # 34 & 37)
39	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
40	6708-3	DU42-2 Discharge Shield
41	5727-1	Washer Shim 58ID	$4.25	Add to Cart
42	NS	Deck Serial Number Plate
43	5703-16	Wrench	$11.28	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F048	12 SAE Washer	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F065	316x34 Woodruff Key 606	$2.18	Add to Cart
	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
	F087	10x78 Fender Washer	$0.65	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F241	375x875x10 Washer	$0.79	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F318	3816x34 SQH Set Screw	$0.74	Add to Cart
	F350	1420 LP Nylock	$0.65	Add to Cart
	F403	1420x12 PTHMS SS	$1.18	Add to Cart
	F404	5818 Jam Nut	$1.30	Add to Cart
	F426	1420x12 Carriage Bolt	$0.50	Add to Cart
	F462	316x468 010 SemiTube Rivet	$0.34	Add to Cart
	F517	Washer 38x118x18	$1.58	Add to Cart
