Part Lookup Tool

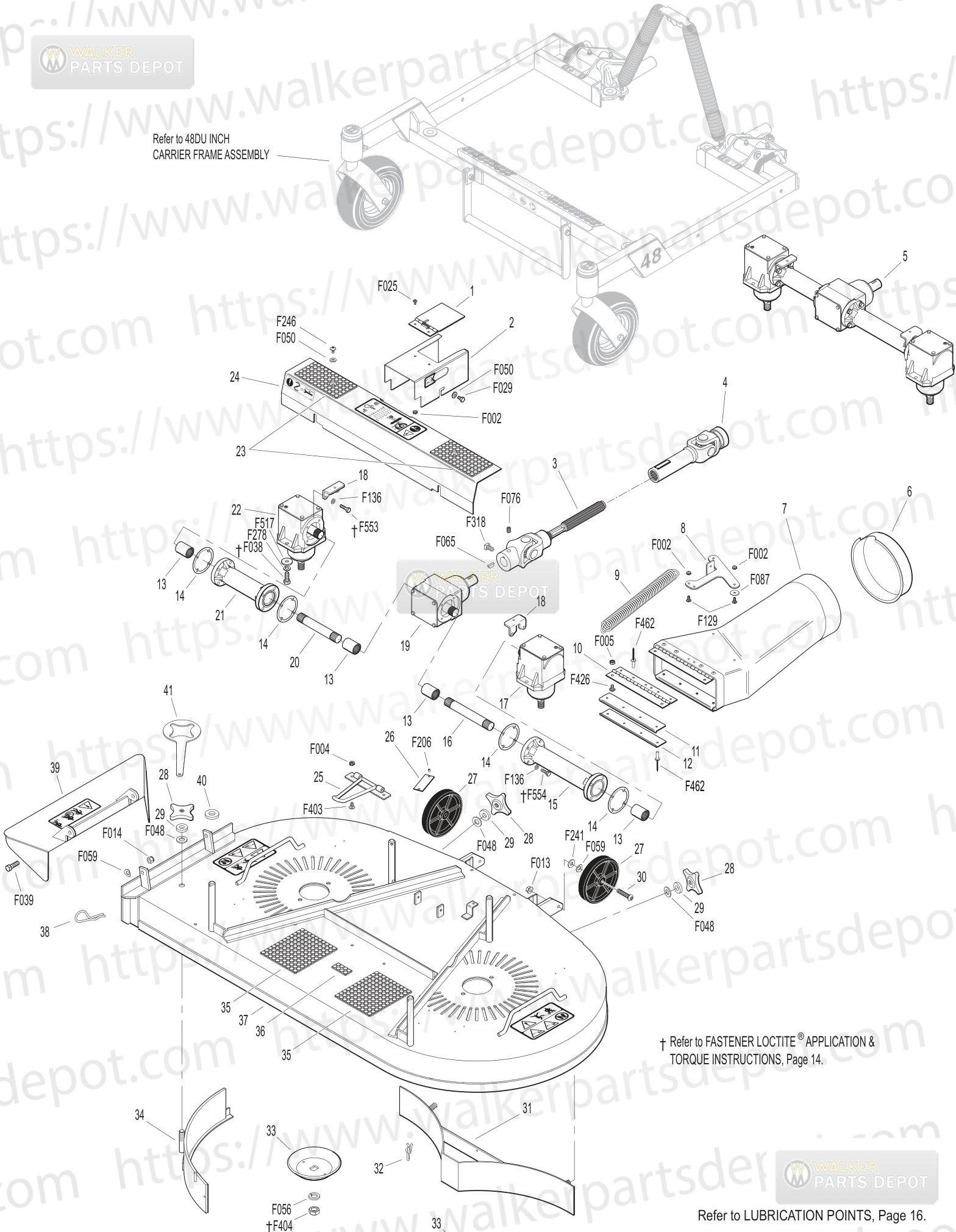

PARTS > DECKS MANUALS > 2019-11-19, 5000-48 > DU48-2 Deck Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8618-1	Cover PTO Shaft Guard	$21.27	Add to Cart
2	8619-4	PTO Shaft Guard NZ	$17.18	Add to Cart
	8618-5	PTO Shaft Guard Assy NZ	$30.56	Add to Cart
3	7285-5	UJoint ShaftSplined Keyed	$313.32	Add to Cart
4	7275-16	UJnt Tube AssySpline 10 OAL	$217.77	Add to Cart
5	6711-13	DU48 Gearbox Tube Assembly HD ProGear	$1,787.00	Add to Cart
6	5595-2	Intake CoverGHS	$7.82	Add to Cart
7	5794-1	Discharge Chute WSpg Mnt	$112.35	Add to Cart
8	8678	Spring Mount Chute	$10.13	Add to Cart
9	8677	Extension Spring 1x6116	$11.99	Add to Cart
10	5726	Chute Hinge 2x8	$7.75	Add to Cart
11	5755-2	Chute LipTop	$5.33	Add to Cart
12	5755-3	Chute LipBottom	$5.33	Add to Cart
13	6054	Spline Coupling	$12.09	Add to Cart
14	P007	Gasket Cap P788030	$2.70	Add to Cart
15	5066	Connector Tube 9 5 16	$49.21	Add to Cart
16	6733-6	Connecting Shaft 7	$38.57	Add to Cart
17	5053-13	HD Gearbox 11CWCW	$482.79	Add to Cart
18	5704-1	Gearbox Cover Support	$9.55	Add to Cart
19	5051-5	HD Tee Gearbox 11 CWCWCCW	$516.39	Add to Cart
20	6733-2	Connecting Shaft 418	$41.27	Add to Cart
21	5061	Connector Tube 6 11 16	$44.21	Add to Cart
22	5052-13	HD Gearbox 11 CCWCCW	$488.88	Add to Cart
23	5747-12	Rubber Mat 3x6	$6.74	Add to Cart
24	7785-3	NR 48 Gearbox Cover02	$74.03	Add to Cart
25	8670	TiltUp Hook	$34.85	Add to Cart
26	NS	Deck Serial Number Plate
27	5162-12	Roller Wheel 5Poly	$17.37	Add to Cart
28	5703-1	Knob 1213	$23.06	Add to Cart
29	5727	Washer Shim 12ID	$6.82	Add to Cart
30	8490	Roller Wheel Axle Bolt	$5.80	Add to Cart
31	6708-6	Rear Baffle DU48	$83.29	Add to Cart
32	7775-1	Hitch PinLH Silver 6	$4.82	Add to Cart
33	5706	Blade Hub Trash Guard	$37.05	Add to Cart
34	6708-5	Chute Baffle 14 Thick DU48	$102.29	Add to Cart
35	8735-10	Rubber Mat 5x6	$8.35	Add to Cart
36	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
37	7702-12	DU48 Deck Housing	$825.63	Add to Cart
38	7775-2	Hitch PinRH Gold 6	$5.08	Add to Cart
39	6708-7	Discharge Shield DU48	$60.59	Add to Cart
40	5727-1	Washer Shim 58ID	$4.25	Add to Cart
41	5703-16	Wrench	$11.28	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F048	12 SAE Washer	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F056	58 Split Lock Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F065	316x34 Woodruff Key 606	$2.18	Add to Cart
	F076	3816x58 SQH Set Screw	$0.65	Add to Cart
	F087	10x78 Fender Washer	$0.65	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F136	AN960C416L Washer	$0.29	Add to Cart
	F206	2x316 Drive Pin	$0.18	Add to Cart
	F241	375x875x10 Washer	$0.79	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F318	3816x34 SQH Set Screw	$0.74	Add to Cart
	F403	1420x12 PTHMS SS	$1.18	Add to Cart
	F404	5818 Jam Nut	$1.30	Add to Cart
	F426	1420x12 Carriage Bolt	$0.50	Add to Cart
	F462	316x468 010 SemiTube Rivet	$0.34	Add to Cart
	F517	Washer 38x118x18	$1.58	Add to Cart
	F553	1420x1 Hex Bolt WLoctite	$0.92	Add to Cart
	F554	SU558911420x78 Hex Bolt WLoctite	$0.65	Add to Cart
	5703-1	Knob 1213	$23.06	Add to Cart
